No, tempered glass cannot be safely cut after the tempering process. Unlike regular glass, tempered glass contains internal stress created during heat treatment, and any cutting or drilling after tempering can cause it to shatter. In this article, we’ll explain why tempered glass cannot be modified after tempering, what happens if you try to cut it, and how manufacturers create custom-sized tempered glass before the tempering process.
Why You Can't Cut Tempered Glass?
The Internal Stress Structure

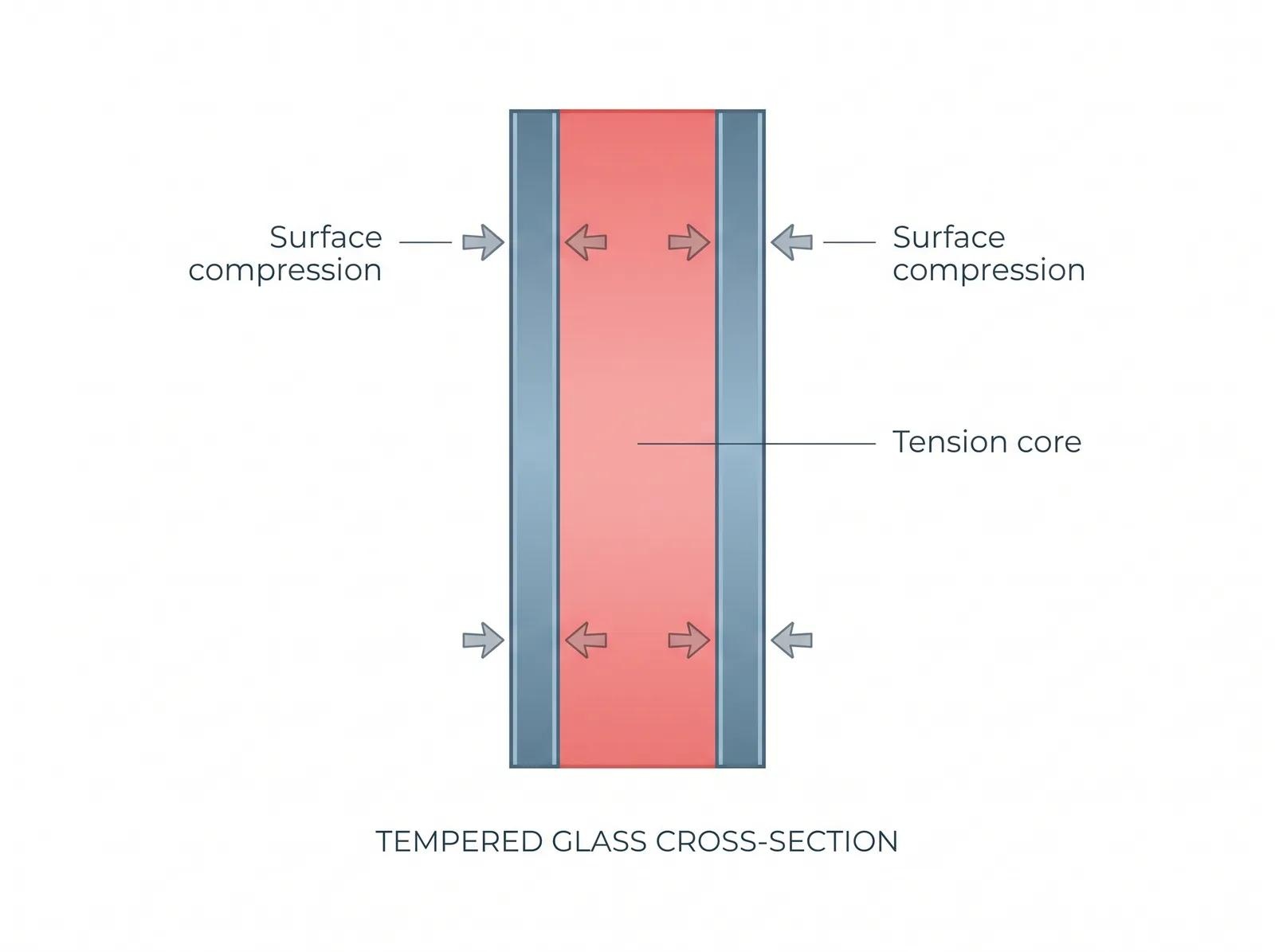

![tempered glass stress diagram]( "tempered glass stress diagram")
The key reason why tempered glass cannot be cut after it has been treated lies in its internal stress structure. During the tempering process, the glass undergoes rapid heating and cooling, creating tension between the inner core and the outer layers. This tension is what makes tempered glass so strong but also incredibly fragile to modifications.
If you attempt to cut, drill, or otherwise alter tempered glass, the internal stress is disturbed, causing the glass to shatter. The process of cutting essentially disrupts the balance between compression and tension, leading to the immediate release of the stored energy within the glass. This results in the glass breaking into numerous small, blunt-edged fragments, which, although safer than sharp shards, are still hazardous.
Shattering Risk
![tempered glass breakage]( "tempered glass breakage")
Once the tempering process is complete, the glass is essentially locked into its final form. Any attempt to alter it, even with specialized tools, will likely cause the entire pane to shatter. This is the inherent risk of tempered glass – it is not designed to be reshaped or modified after the tempering process.
Safety Concerns
![tempered glass impact crack]( "tempered glass impact crack")
Modifying tempered glass is extremely hazardous. The sudden and unpredictable breakage can lead to injury, property damage, or both. Trying to cut tempered glass with a glass cutter, for example, will only result in the glass shattering instantly. Specialized methods such as scoring or tapping with heat may seem like potential solutions, but these techniques do not work on tempered glass and often cause it to shatter unpredictably.
Why Tempered Glass Cannot Be Modified After Tempering
Why Post-Tempering Cutting Fails
Once tempered glass has completed the heat treatment process, its internal stress structure cannot be modified. Cutting, drilling, or edge processing after tempering disrupts this balance and causes the entire panel to fracture into small fragments.
Unlike annealed glass, tempered glass is not suitable for post-production adjustments. Any required cutting, drilling, notching, or shaping must be completed before the tempering process to ensure the final panel meets project specifications.
Common Processing Mistakes
In architectural and commercial projects, incorrect measurements or late design changes can create challenges when tempered glass has already been produced. Since tempered glass cannot be resized after tempering, even minor dimensional errors may require the panel to be remanufactured.
Common issues include:
Ordering glass before finalizing dimensions or opening sizes
Requesting additional holes or cut-outs after tempering
Making design changes after fabrication has started
What Are Your Alternatives to Cutting Tempered Glass?
Pre-Cutting Tempered Glass Before Tempering
The safest and most effective way to ensure that tempered glass is the correct size for your project is to have it pre-cut before the tempering process. Glass manufacturers and suppliers can take the required measurements and then cut, drill, and shape the glass as needed before it undergoes the tempering process. This ensures that the glass is the right size and shape without the risk of breakage.
Once the glass is tempered, it cannot be altered, so it’s crucial to finalize all measurements and customizations beforehand.
Using Laminated or Annealed Glass for Custom Cuts
If the project allows for non-safety-rated glass, such as laminated or annealed glass, these materials can be cut safely after they are manufactured. Laminated glass, which consists of two layers of glass bonded with a plastic interlayer, can be cut with special tools. Similarly, annealed glass, which has not undergone the tempering process, can be easily scored and snapped into the desired shape.
Property | Tempered Glass | Laminated Glass |
Ability to Cut | Cannot be cut after tempering | Can be cut after manufacturing |
Structure | Single layer, under internal stress | Multiple layers with interlayer |
Post-Breakage Behavior | Shatters into small, blunt pieces | Remains intact, does not shatter |
Common Uses | Shower doors, car windows | Skylights, safety glass in vehicles |
Working with the Right Glass Supplier
Since tempered glass cannot be cut or modified after tempering, early coordination with a qualified supplier helps reduce the risk of sizing errors, rework, and project delays. An experienced supplier can support specification review, fabrication planning, and glass configuration based on actual application needs. REACH BUILDING provides custom tempered glass solutions with processing support and project-based guidance, helping customers match glass products to design, performance, and installation requirements.
Tools and Methods for Handling Non-Tempered Glass
How to Cut Regular Glass
If you need to cut regular (annealed) glass, it can be done using the right tools and techniques. Here is a basic guide:
1. Measure the glass: Use a measuring tape to mark the exact size you need.
2. Score the glass: Place a straightedge along the marked line and use a glass cutter to score the glass. Make sure to apply consistent pressure.
3. Snap the glass: Once scored, gently apply pressure on both sides of the line to break the glass along the scored path.
4. Smooth the edges: Use sandpaper or a polishing tool to smooth the edges and remove any sharp points.
Tips for Working with Glass Safely
Working with glass, even regular glass, can be dangerous if proper precautions aren’t taken. Always wear safety glasses, gloves, and long sleeves to protect yourself from potential breakage. Use a clean, flat surface when cutting, and always clean up glass fragments immediately.
How to Identify Tempered Glass
It is essential to identify whether the glass you're working with is tempered or not. One of the easiest ways to tell is by looking for a stamp or etching on the corner of the glass, which will typically say "tempered" or include a certification code.
Another way to identify tempered glass is by using polarized lenses. When viewed through polarized lenses, tempered glass will reveal a distinctive stress pattern that regular glass does not have.
Conclusion
In conclusion, cutting tempered glass is not possible once it has been tempered. The internal stress created during tempering locks the glass into its final form, making it prone to shattering if altered. The best solution is to order custom-cut tempered glass before tempering or use alternatives like laminated or annealed glass. For safety, always consult professional suppliers like REACH BUILDING for custom projects. Planning ahead ensures a successful and safe result.
FAQ
1. Can you cut tempered glass after it has been tempered?
No. Tempered glass cannot be safely cut after the tempering process. Cutting or drilling after tempering disrupts the internal stress balance and causes the glass to break into small fragments.
2. Why can't tempered glass be cut?
Tempered glass contains internal stress created during the heating and rapid cooling process. The outer surface is under compression while the inner core is under tension, making the glass stronger but impossible to cut after tempering.
3. Can you cut tempered glass with a regular glass cutter?
No. A regular glass cutter cannot cut tempered glass. Unlike annealed glass, tempered glass will not create a controlled cut when scored because its internal stress causes the entire panel to fracture.
4. Can tempered glass be cut to size?
Yes, but the required cutting and processing must be completed before tempering. Manufacturers cut, drill, and finish the glass according to project specifications before the heat treatment process.
5. How can I get custom-sized tempered glass?
Custom-sized tempered glass must be fabricated before tempering. A professional glass supplier such as REACH BUILDING can help confirm dimensions, processing requirements, and fabrication options to ensure the final panels meet your project needs.
