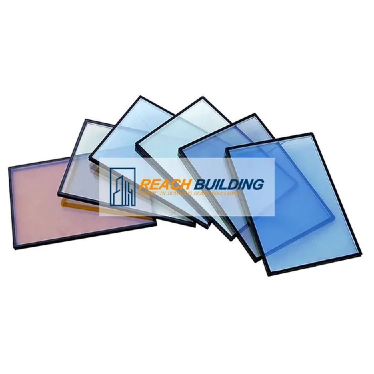

Insulated Glass (IGU) is one of the most important innovations in modern building design. Unlike single-pane glass, insulated glass is engineered to provide thermal insulation, soundproofing, and condensation prevention, significantly improving energy efficiency and indoor comfort. Understanding how insulated glass is made is essential for architects, builders, and homeowners who want to ensure the quality and performance of their glass installations.
From the selection of raw materials to assembly, gas filling, sealing, and optional enhancements, the manufacturing process determines the durability, energy efficiency, and overall performance of IGUs.
The performance of insulated glass begins with the selection of high-quality materials. Each component plays a critical role in achieving thermal efficiency, structural integrity, and durability.
The glass panes are the core of IGUs and can vary based on project needs:
Float Glass: Standard glass used for most residential and commercial applications.
Tempered Glass: Heat-treated for enhanced strength and safety. Breaks into small granular pieces to reduce injury.
Laminated Glass: Combines layers of glass with interlayers for additional safety, sound insulation, and UV protection.
Spacers separate the glass panes and hold the insulating gas in place.
Materials: Aluminum, stainless steel, or warm-edge polymers.
Functions: Maintain uniform spacing, prevent gas leakage, and support structural integrity.
The airspace between panes can be filled with:
Air: Standard option, economical but moderate insulation.
Argon Gas: Inert gas that improves thermal insulation.
Krypton Gas: Offers higher insulation for smaller thickness units or premium applications.
Sealants are crucial for airtight and watertight performance:
Primary Seal: Usually a polyisobutylene sealant for initial sealing.
Secondary Seal: Silicone or polysulfide seal for durability and resistance to weather conditions.
Desiccants, typically silica gel, are placed inside the spacer to:
Absorb residual moisture
Prevent internal condensation and fogging
Enhance the longevity of the insulated glass unit
Creating high-performance insulated glass involves multiple precise steps to ensure functionality and durability.
Glass is cut according to project specifications.
Edges are polished or beveled to prevent cracks.
Surfaces are thoroughly cleaned to remove dust, oils, or debris.
Spacers are cut to the exact dimensions of the glass unit.
Desiccant material is filled within the spacer to absorb moisture.
Proper preparation ensures uniform thickness and long-term performance.
Glass panes are placed with spacers between them.
Alignment is carefully checked to ensure flatness and proper sealing.
This forms the initial structure of the insulated glass unit.
Inert gases such as argon or krypton are injected into the spacer cavity.
Gas filling improves thermal insulation and reduces heat transfer.
Primary sealant secures the edges and prevents moisture ingress.
Secondary sealant provides additional protection and long-term durability.
Quality of sealing affects energy efficiency and unit lifespan.
Units undergo strict inspection for:
Proper sealing
Gas fill integrity
Visual clarity and defects
Moisture and fogging resistance
Only units meeting performance standards are approved for delivery.
Insulated glass units (IGUs) can be significantly enhanced with additional technologies to improve their thermal performance, safety, acoustic properties, and aesthetic appeal. These optional enhancements allow architects and builders to customize IGUs according to specific project requirements.
Low-emissivity (Low-E) coatings are thin metallic layers applied to one or more glass surfaces. They reflect infrared heat while allowing visible light to pass through, reducing heat loss in winter and heat gain in summer. This improves energy efficiency, helps maintain a stable indoor climate, and contributes to lower HVAC costs. Low-E coatings are often combined with insulated glass for superior insulation, making them ideal for both cold and hot climates.
Tempered IGUs undergo heat treatment to increase their strength and safety. In case of breakage, tempered glass shatters into small, blunt pieces, reducing the risk of injury. Laminated IGUs consist of multiple layers bonded with interlayers, offering impact resistance, UV protection, and improved acoustic performance. These features are particularly beneficial for commercial buildings, schools, hospitals, and high-rise projects, where safety and durability are critical.
Insulated glass can also include colored or patterned surfaces for visual appeal and architectural style. Acoustic interlayers enhance soundproofing for residential or commercial spaces, while fire-resistant layers improve safety in specialized structures. These optional enhancements allow IGUs to meet diverse functional and aesthetic requirements without compromising performance.
Insulated glass is widely used across different building types due to its versatility and performance.
Windows and Doors: Reduce heat loss and gain, minimize external noise, and enhance indoor comfort.
Glass Facades: Modern homes use IGUs for energy-efficient, aesthetically appealing exteriors that allow natural light without compromising insulation.
Office Buildings: Maintain stable indoor climate, reduce HVAC loads, and improve employee comfort.
Retail Spaces: Display windows benefit from thermal insulation, UV protection, and better energy efficiency.
Hospitals and Schools: Sound insulation and energy efficiency create a comfortable and safe environment.
Airports and Stations: Large IGU panels manage indoor climate, reduce noise, and improve safety in busy areas.
Glass Partitions: Maintain visual clarity and privacy.
Cabinets and Balustrades: Provide safety, elegance, and durability.
Feature | Insulated Glass (IGU) | Low-E Glass | IGU + Low-E Combo |
Thermal Insulation | High | Moderate | Excellent |
Sound Insulation | High | Moderate | High |
Condensation Control | Yes | No | Yes |
Solar Heat Control | Moderate | High | Excellent |
Energy Efficiency | Good | Good | Excellent |
This comparison highlights why combining Insulated Glass with Low-E coatings offers the best energy efficiency, comfort, and performance.
Selecting a reliable manufacturer is critical for ensuring quality IGUs. Key considerations include:
Material Quality: Premium glass, spacers, sealants, and gas fill.
Production Technology: Advanced automated assembly lines for precision and consistency.
Customization: Ability to provide tailored solutions for residential, commercial, or specialized projects.
Certifications: ISO 9001, CE, or other recognized standards.
Hangzhou Reach Building Co., Ltd. is a leading manufacturer offering:
High-quality insulated glass and Low-E solutions
Custom designs for windows, doors, facades, and interior applications
Expert guidance to ensure performance, durability, and aesthetic appeal
Insulated Glass is a key component in modern buildings, providing energy efficiency, safety, and indoor comfort. Its performance relies on high-quality materials, precise manufacturing, and optional enhancements like Low-E coatings, tempering, and laminating. Understanding the manufacturing process allows architects, builders, and homeowners to choose the most suitable IGUs for their projects, ensuring long-term durability and optimal performance.
For those seeking professional guidance and reliable products, Hangzhou Reach Building Co., Ltd. offers a wide range of insulated glass solutions, expert technical support, and customized designs tailored to residential, commercial, and specialized construction needs. Explore their offerings to select high-performance IGUs that enhance energy savings, comfort, and building aesthetics, and consult their experienced team to find the ideal solution for your next project.
