SpectraNyx Glass: Setting a New Standard in Smart Glass

Facades · Skylights · High-End Interiors

What SpectraNyx Glass Brings to a Space

SpectraNyx Glass is REACH BUILDING’s new-generation SPD smart glass and smart laminated glass solution for facades, skylights, equipment glass, and refined interiors, it shifts from clear to tinted while keeping the view open and the glass surface clean. It gives architectural glazing smooth control over daylight, glare, heat, UV exposure, and privacy, shifting from clear to tinted while keeping the view open and the glass surface clean.

Not just on or off. SpectraNyx Glass supports continuous tint adjustment, allowing the glass to shift smoothly from clear to shaded according to daylight, glare, privacy, or comfort needs.

SpectraNyx Glass can support customized brand logos, patterns, or visual effects, helping hotels, showrooms, retail stores, and commercial spaces create a stronger project identity.

View Full Project

Helps block ultraviolet and infrared radiation, reducing the impact of solar exposure on indoor spaces, equipment, furniture, finishes, and occupants.

SpectraNyx Glass can be connected with switches, remote controls, apps, sensors, smart home systems, or BMS platforms for more flexible and intelligent glass control.

The smart dimming film is designed for smooth and even tint performance, helping large glass areas achieve a cleaner, more consistent visual effect during light adjustment.

SpectraNyx Glass Benefits

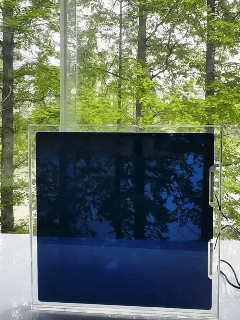

SpectraNyx Smart Glass Stepless Dimming

One Smart Dimming System, Two Project Paths

Whether your glass is being designed for a new build or upgraded after installation, SpectraNyx can be matched to your project stage. For new construction, SpectraNyx Glass can be built into the glass as a smart laminated glass solution. For renovation projects, SpectraNyx SPD Film can be applied to existing glazing, creating a controllable smart glass surface without replacing the full glass structure.

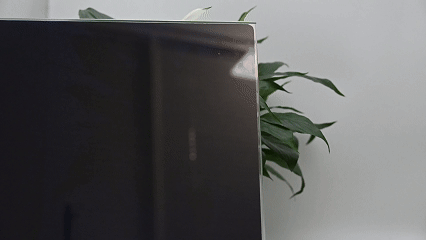

SpectraNyx Smart Glass switching effect

SpectraNyx Smart Glass

Max Width Up to 1.6 m
Operating Range -30°C to 90°C
Power Use ≤1W/m²
Long-Term Stability Stable daily use
View Technical Parameters

SpectraNyx Smart Glass Product Performance and Technical Parameters

Item Mode Reach Building EPC Technology
Visible Light Transmittance ON 55% to 65%
Visible Light Transmittance OFF 1% to 2%
Haze ON Less than 5%
Haze OFF 100%
Working Voltage ON 110V
Response Time OFF to ON Up to 2s
Response Time ON to OFF Up to 9s
Operating Temperature / -30°C to 90°C
Power Consumption / Up to 1W/m²
Switching Cycles / Over 1,000,000 times
UV Blocking Rate ON 99%
UV Blocking Rate OFF 99.9%

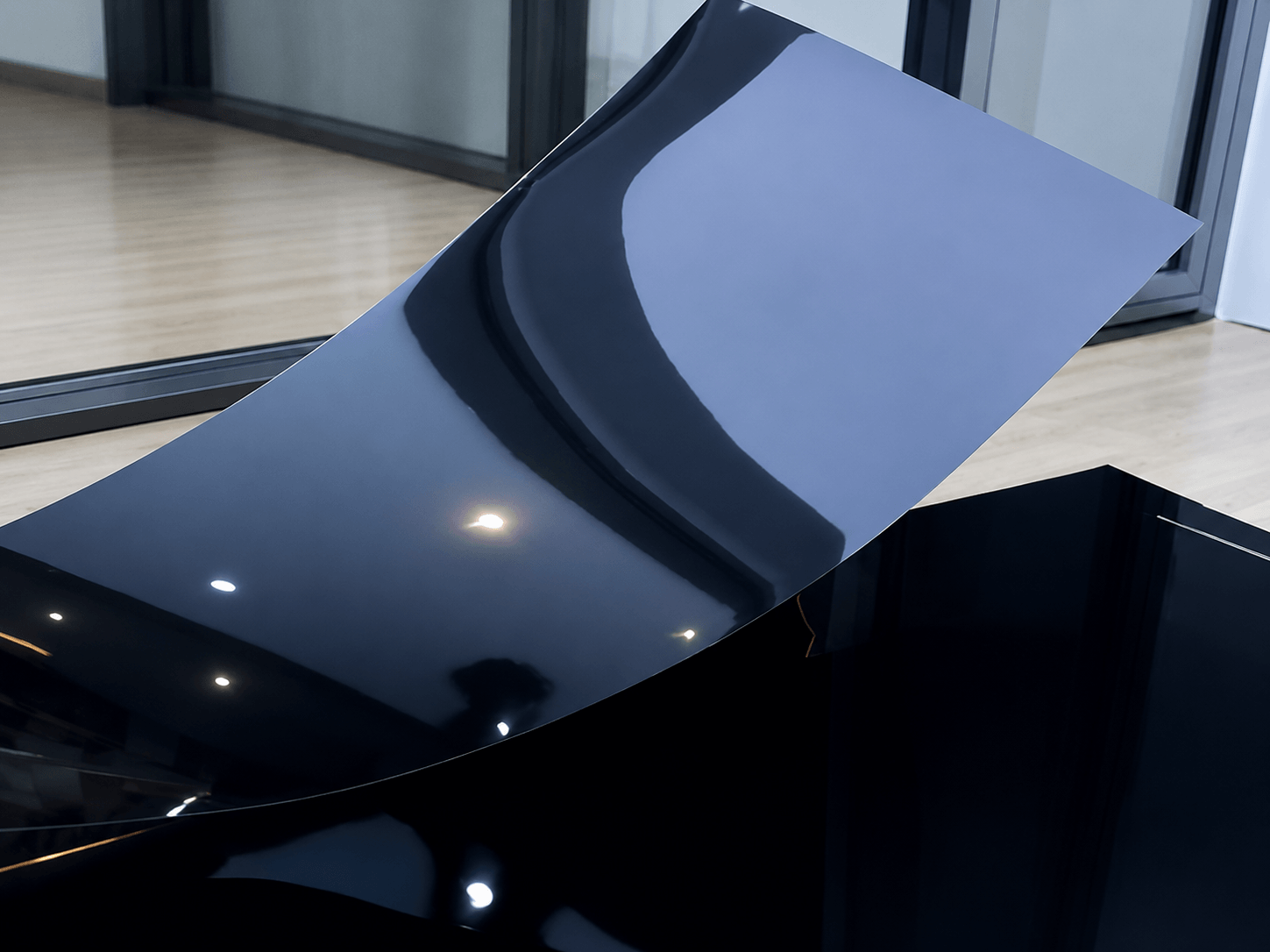

SpectraNyx SPD Film switching effect

SpectraNyx SPD Film

Max Width Up to 1.6 m
Operating Range -30°C to 90°C
Power Use ≤1W/m²
Long-Term Stability Stable daily use
View Technical Parameters

SpectraNyx SPD Film Product Performance and Technical Parameters

Item Mode Reach Building EPC Technology
Visible Light Transmittance ON 12% to 35%
Visible Light Transmittance OFF 0.3% to 0.7%
Haze ON Less than 5%
Haze OFF 100%
Working Voltage ON 110V
Response Time OFF to ON 2s or less
Response Time ON to OFF 9s or less
Operating Temperature / -30°C to 90°C
Power Consumption / 1W/m² or less
Switching Cycles / Over 1,000,000 times
Infrared Blocking Rate ON 92%
Infrared Blocking Rate OFF 96%

Control Made Simple

Control each glass zone through app, switch, remote control, sensors, or smart building systems. REACH BUILDING can match the right controllers, power supplies, drivers, and wiring plan to your project layout, making smart glass control easier to configure for single panels, grouped zones, or full-building integration.

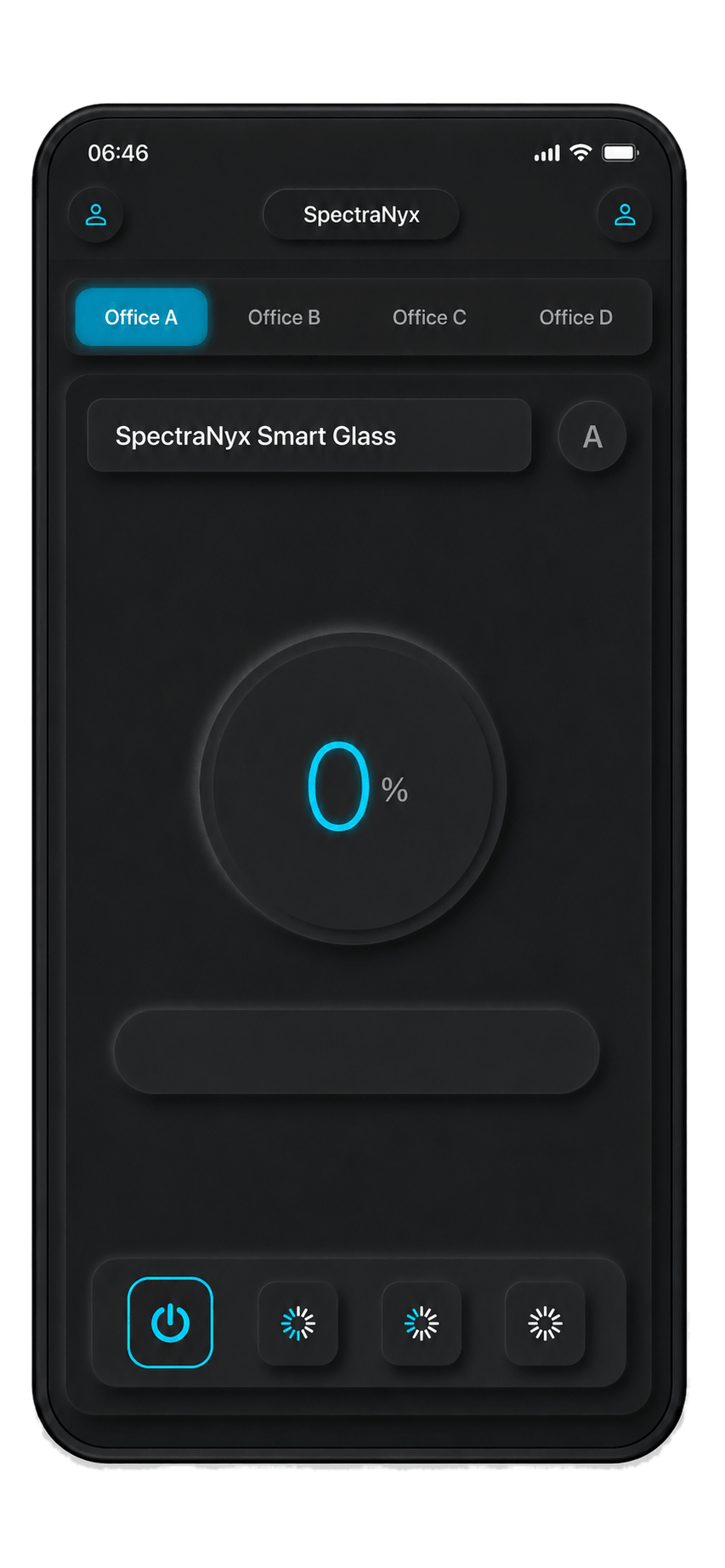

SpectraNyx smart glass controller 0 percent mode
Click to test control effect

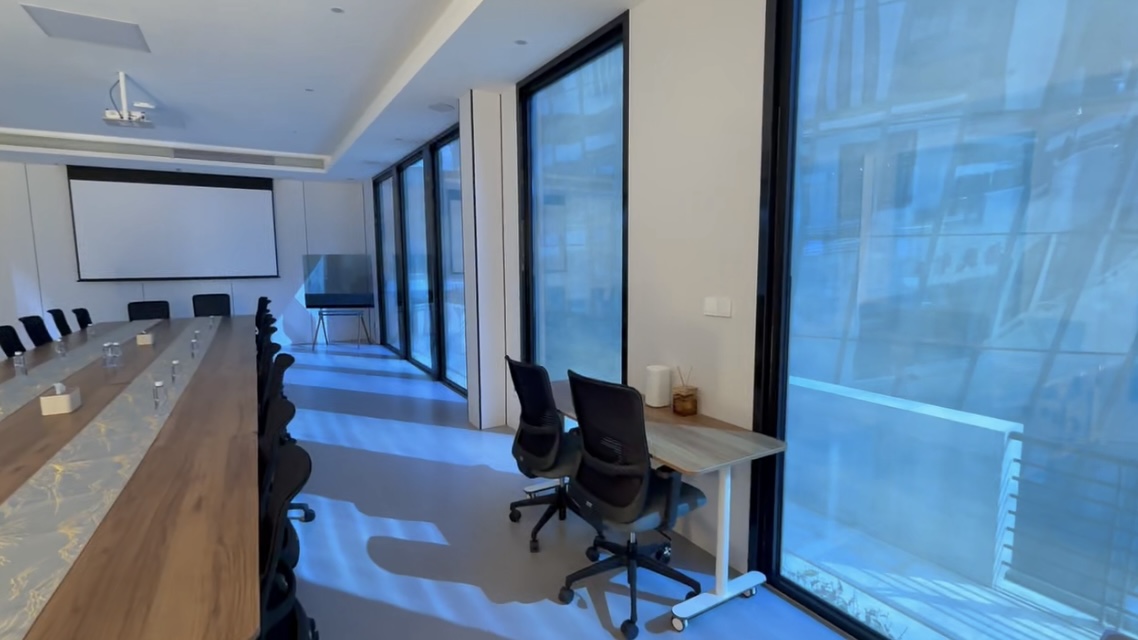

SpectraNyx smart glass control effect

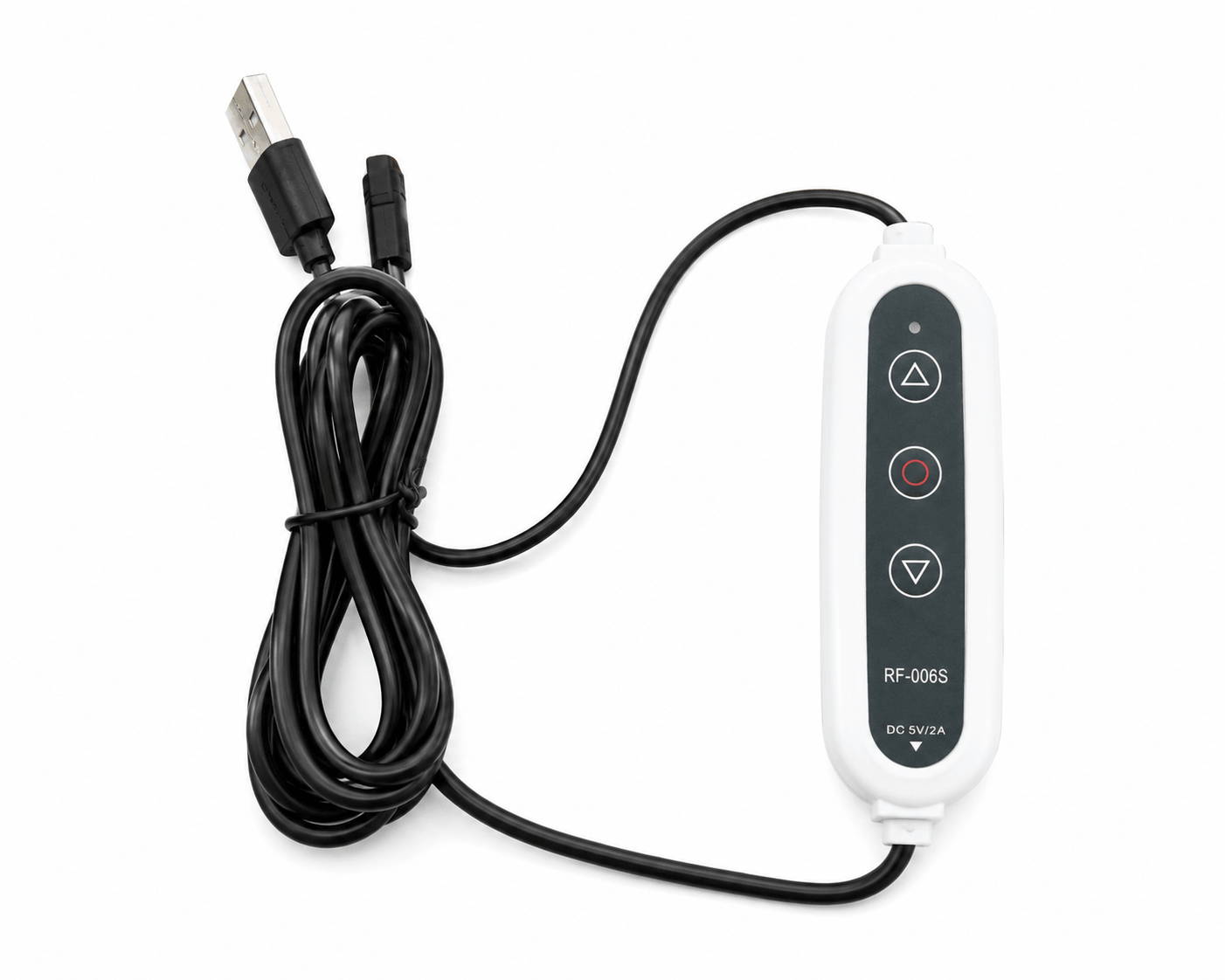

USB controller for SpectraNyx Glass

A compact local control solution for simple switching and dimming, suitable for small glass zones, display cabinets, product samples, and project testing.

Local Control On / Off Dimming Support Compact Wiring

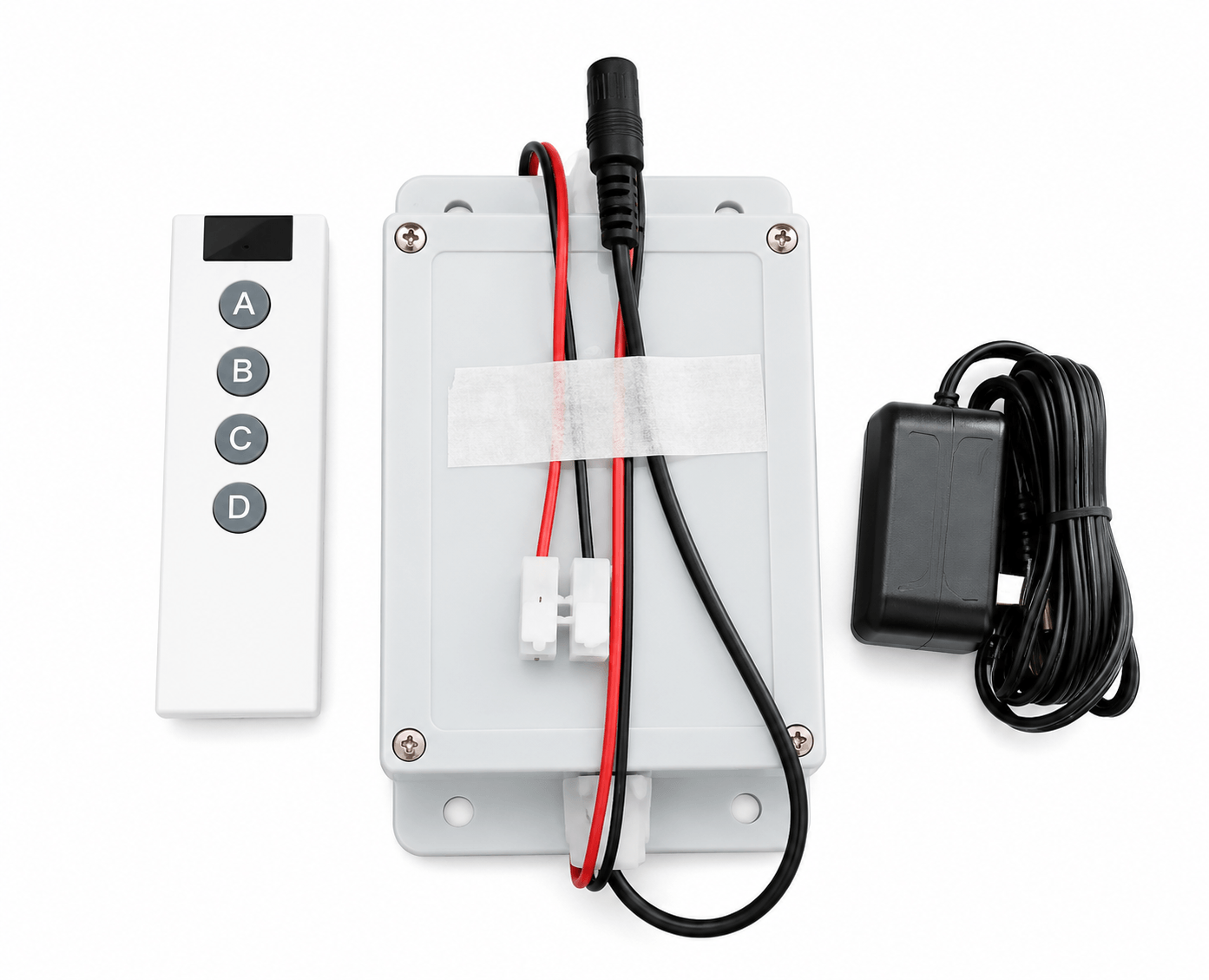

Remote controller for SpectraNyx Glass

Control at your fingertips. Remote operation makes tint adjustment easy for daily use, with flexible support for single glass panels or grouped glass zones.

RF Remote Wireless Control Group Control Easy Operation

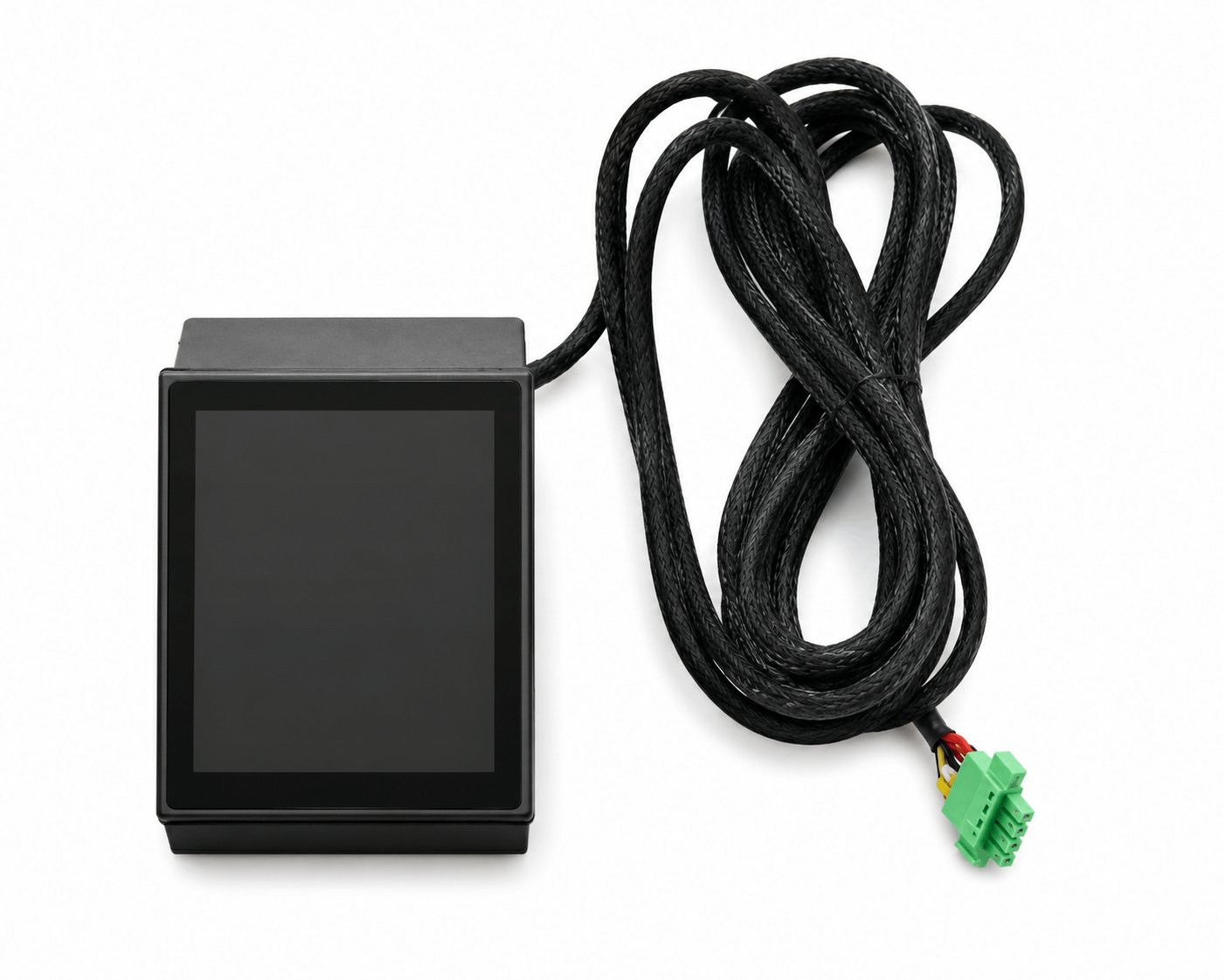

LCD display screen for SpectraNyx Glass control

A tablet-style LCD display interface for visual control, allowing users to manage tint levels, scenes, and glass zones through a clearer and more intuitive screen.

Visual Interface Scene Control Zone Control Touch Display

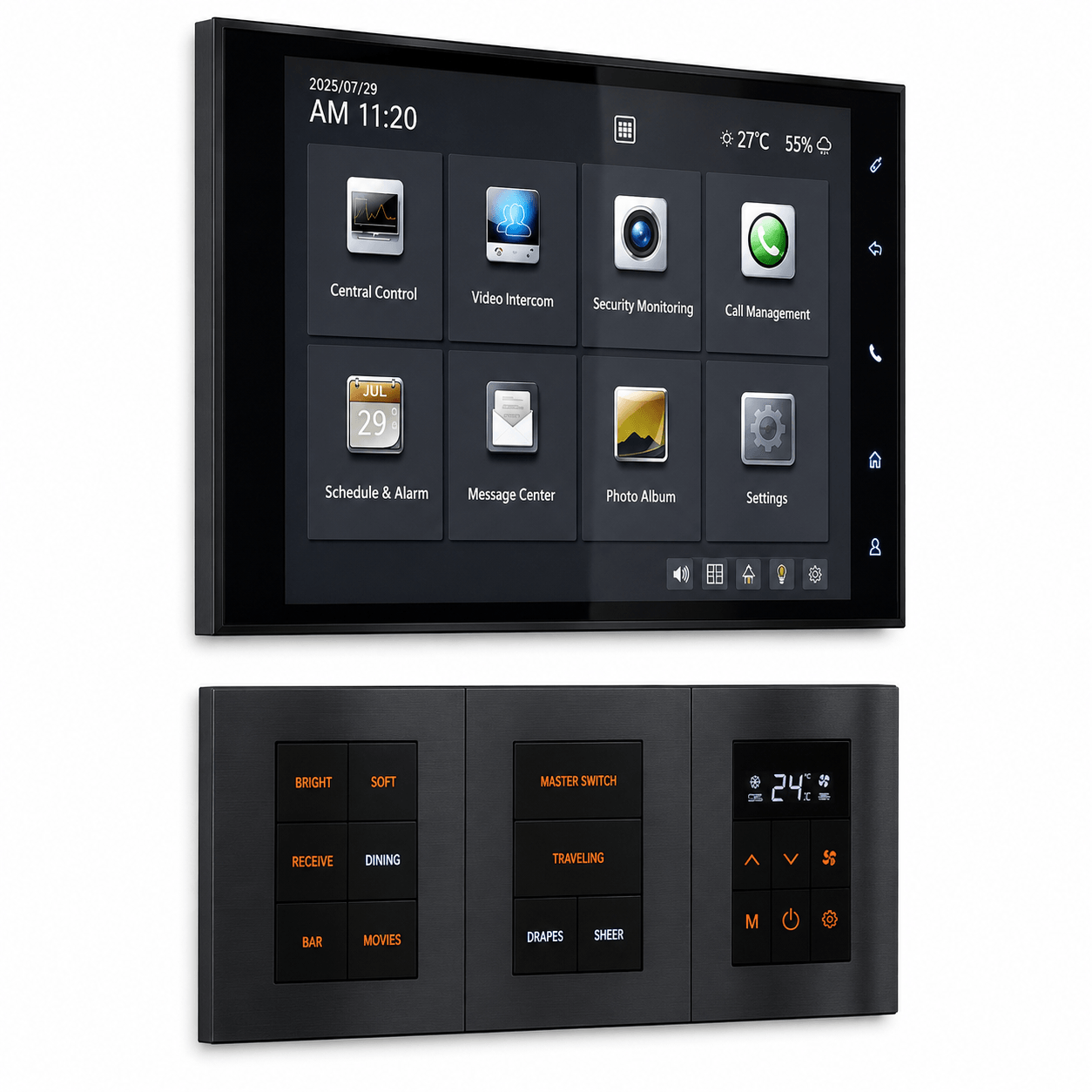

Smart home integration for SpectraNyx Glass

Designed for smarter spaces. SpectraNyx Glass can be connected with app control, sensors, scheduled scenes, and automation systems based on project configuration.

App Control WiFi Connection Sensor Link BMS Ready

Light Becomes Part of the Design

With SpectraNyx Glass, interior and exterior glass surfaces can be dimmed as a whole or divided into flexible zones, from side-by-side and top / bottom control to custom layouts, giving designers a refined way to balance daylight, privacy, and atmosphere without interrupting the view.

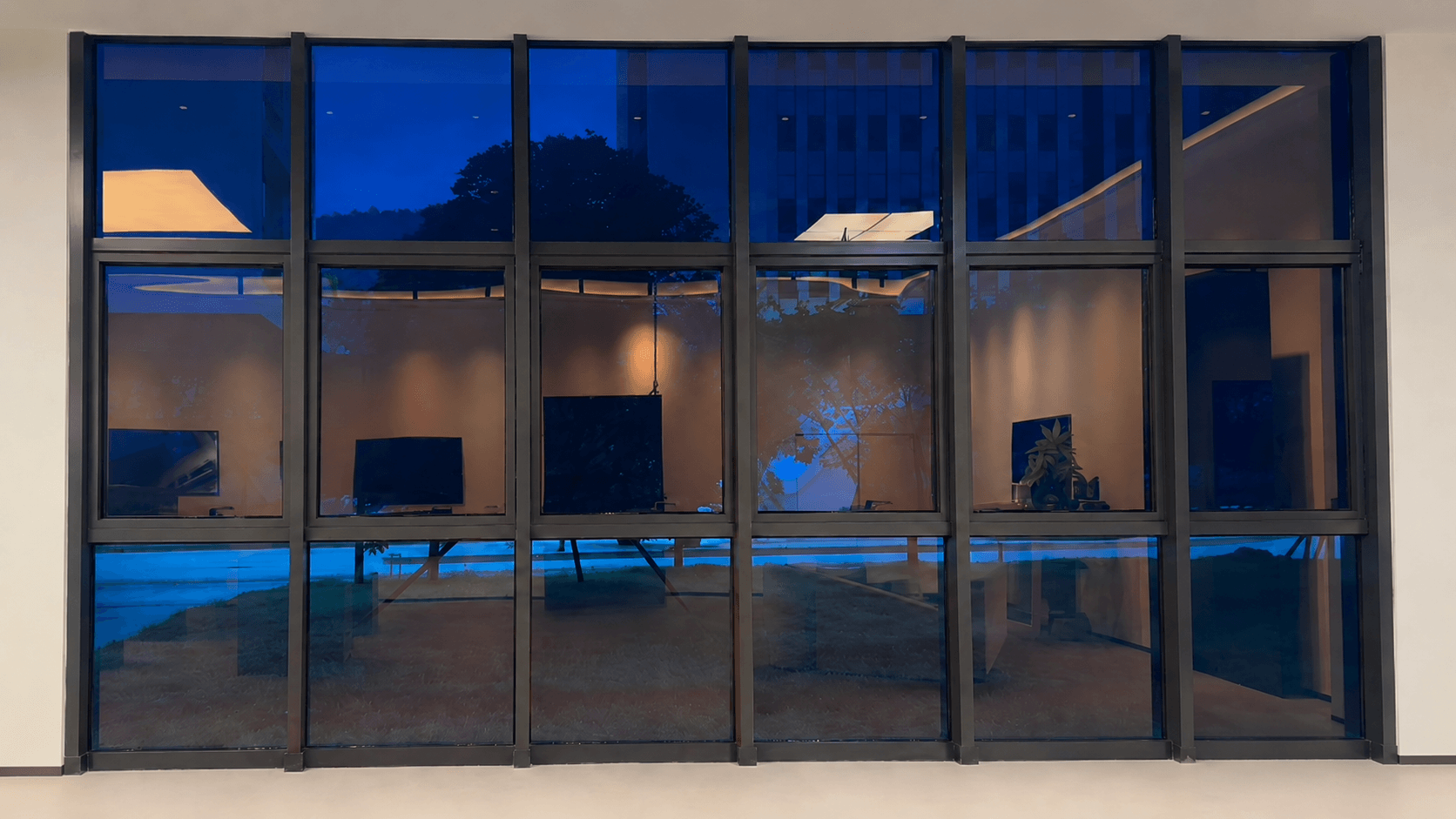

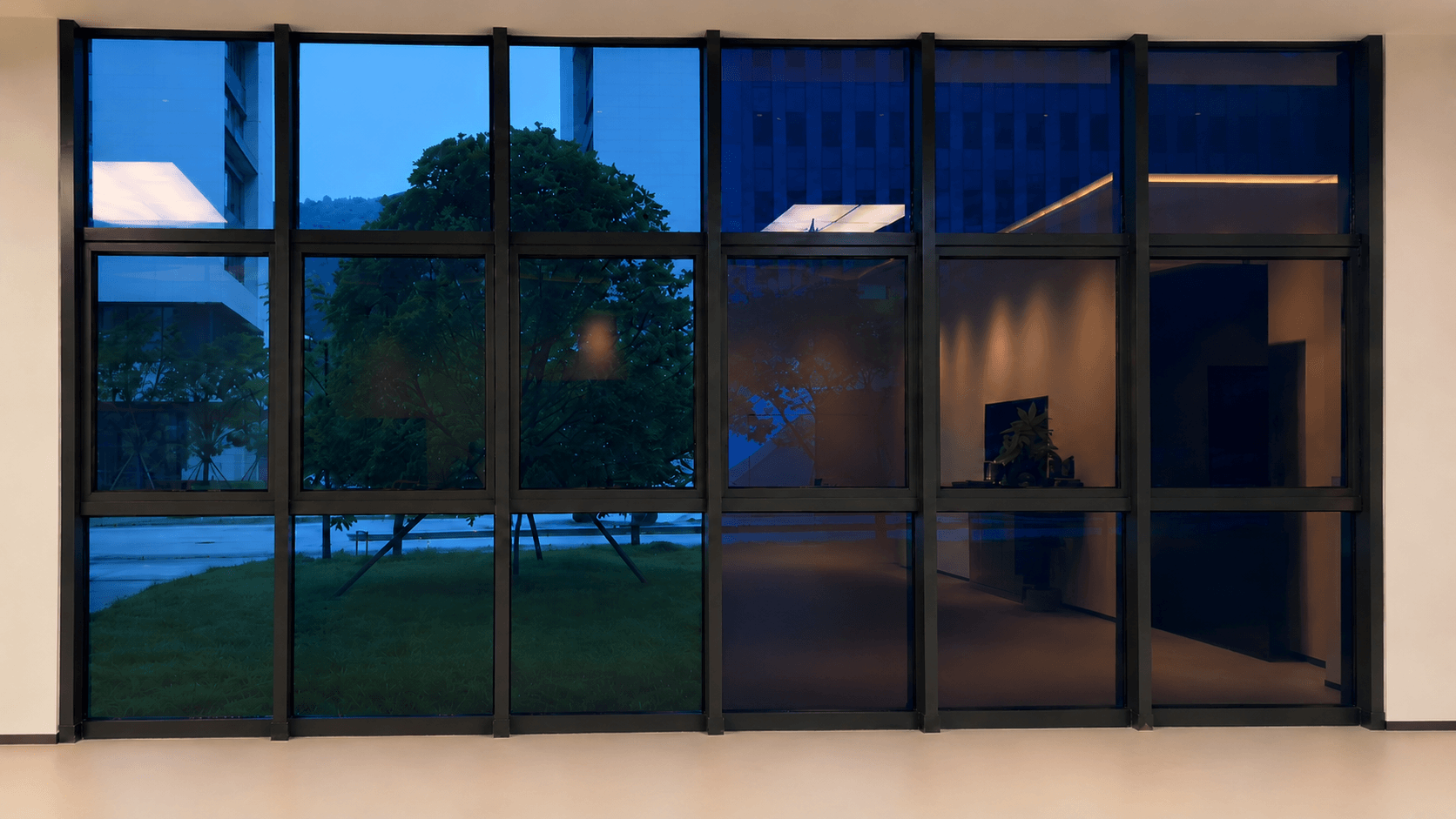

SpectraNyx Glass clear side-by-side zone control SpectraNyx Glass side-by-side zone control effect
Side-by-Side Zones Control selected glass areas independently.

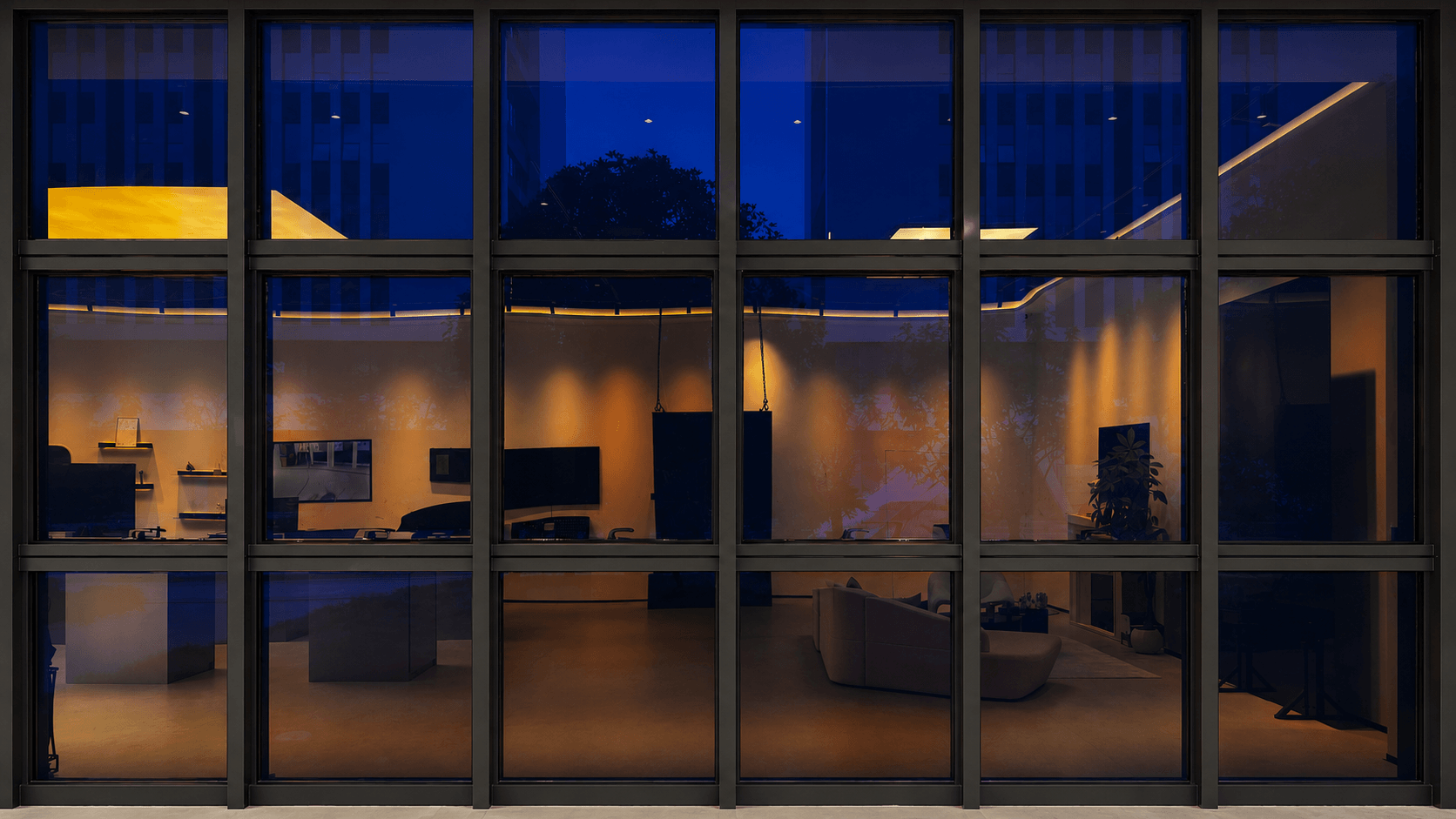

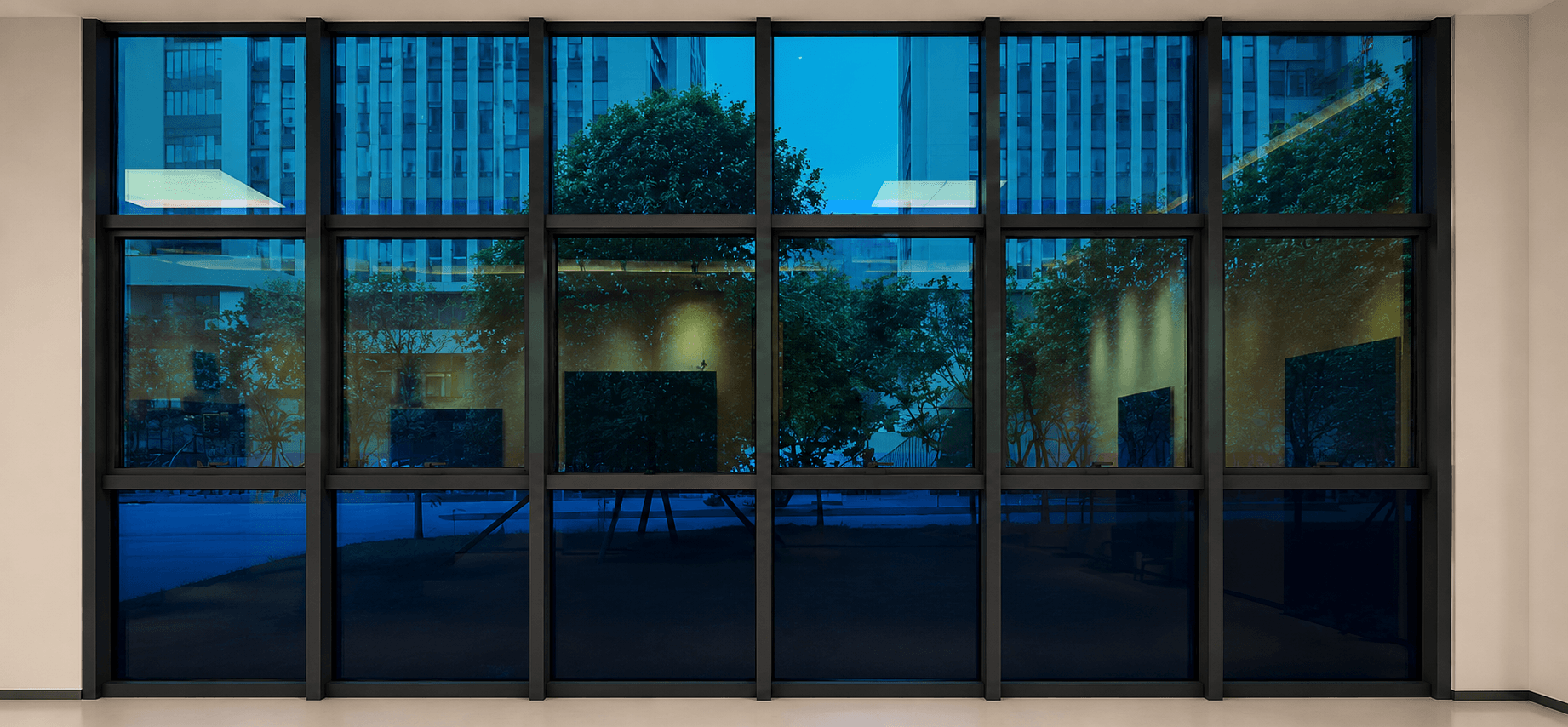

SpectraNyx Glass top and bottom zone base SpectraNyx Glass top and bottom zone control effect
Top / Bottom Zones Adjust upper and lower glass sections separately.

SpectraNyx Glass for Modern Applications

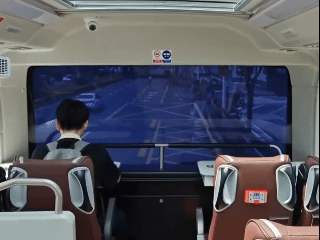

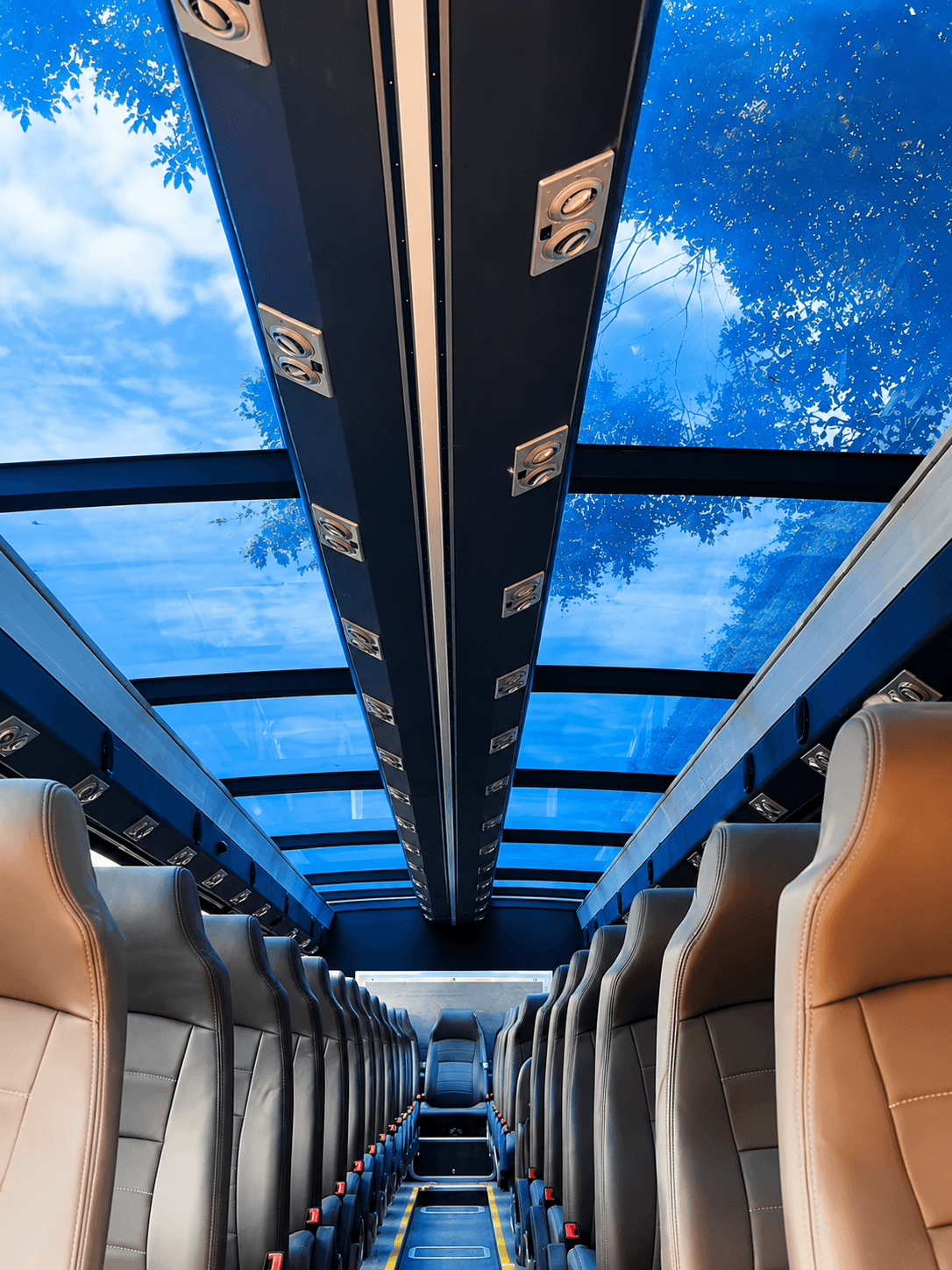

From curtain walls, facades, skylights, sunrooms, and smart window systems to equipment glass, automotive smart glass, hotels, showrooms, retail spaces, office partitions, and high-end interiors, SpectraNyx Glass brings smooth smart glass control to more project scenarios. It helps reduce glare, manage solar heat, support privacy, and protect valuable spaces while keeping the view open and the glass surface clean.

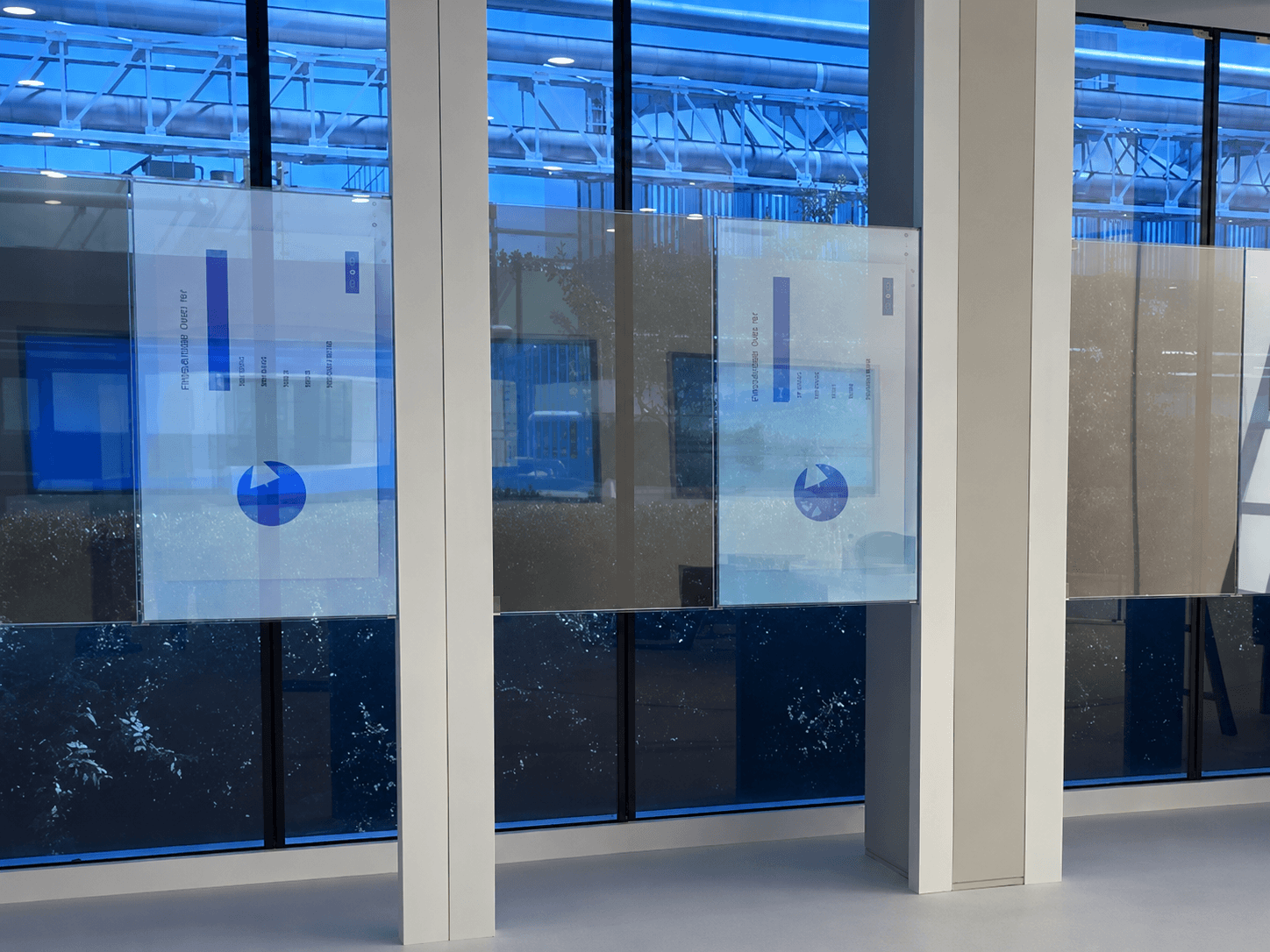

In its opaque state, SpectraNyx Glass can also be used as a projection screen, adding display functionality to the glass surface.

Built With SpectraNyx Glass

Selected project applications showing how SpectraNyx Glass brings adaptive tint control to skylights, facades, and architectural glass systems, balancing daylight, glare, heat, privacy, and a clean visual identity.
Custom brand logo effect with SpectraNyx Glass
BILI PLANET

Skylight smart tint control

A skylight configuration study combining ultra-clear tempered glass, Low-E insulated glass, argon-filled cavity, and SpectraNyx smart dimming film for project-based daylight control.

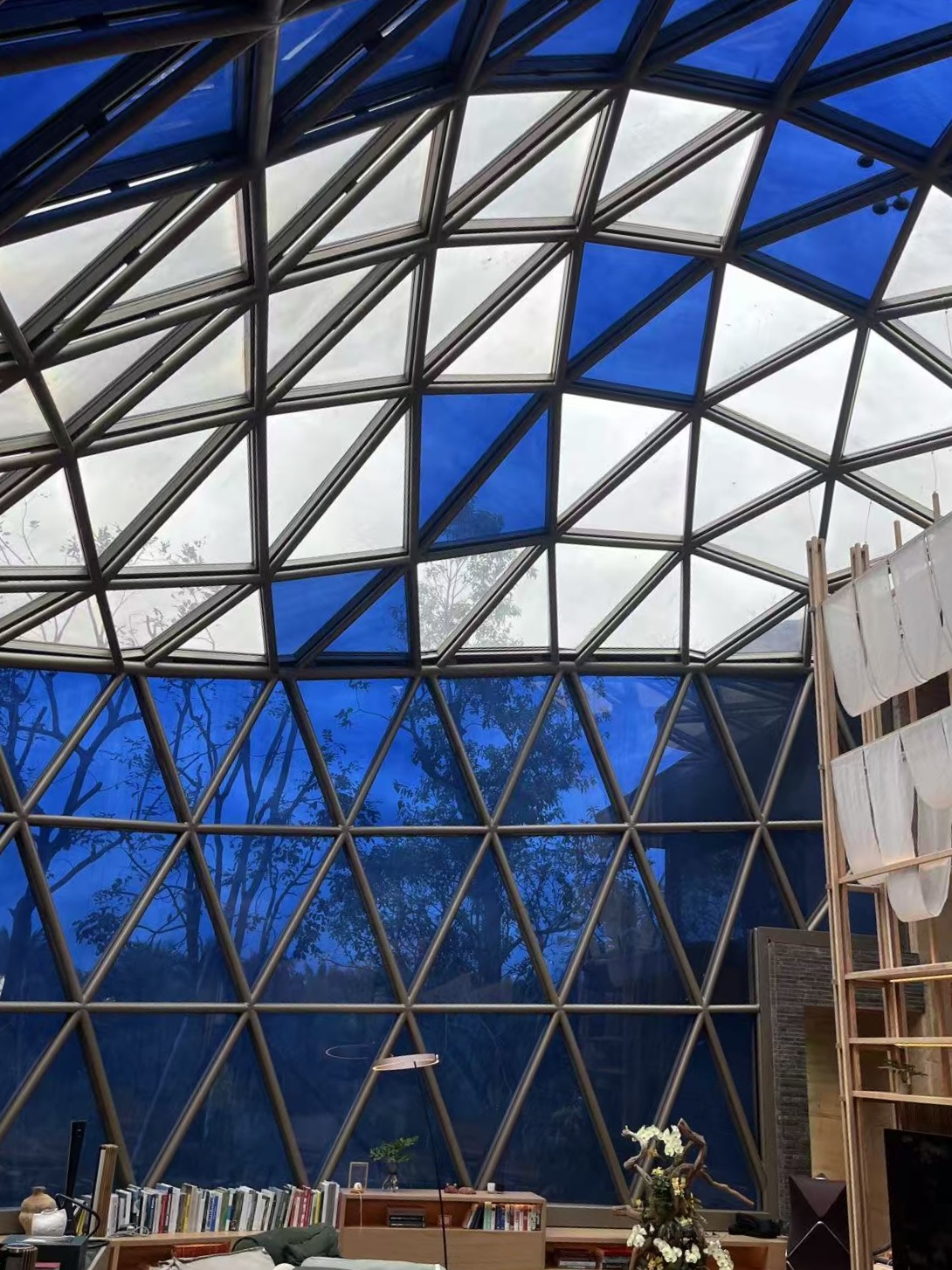

Vietnam smart glass project reference with SpectraNyx Glass
VIETNAM PROJECT

Architectural smart glass reference

A project reference showing SpectraNyx Glass in a large architectural glass structure, supporting daylight control, solar shading, privacy, and a distinctive smart tint effect.

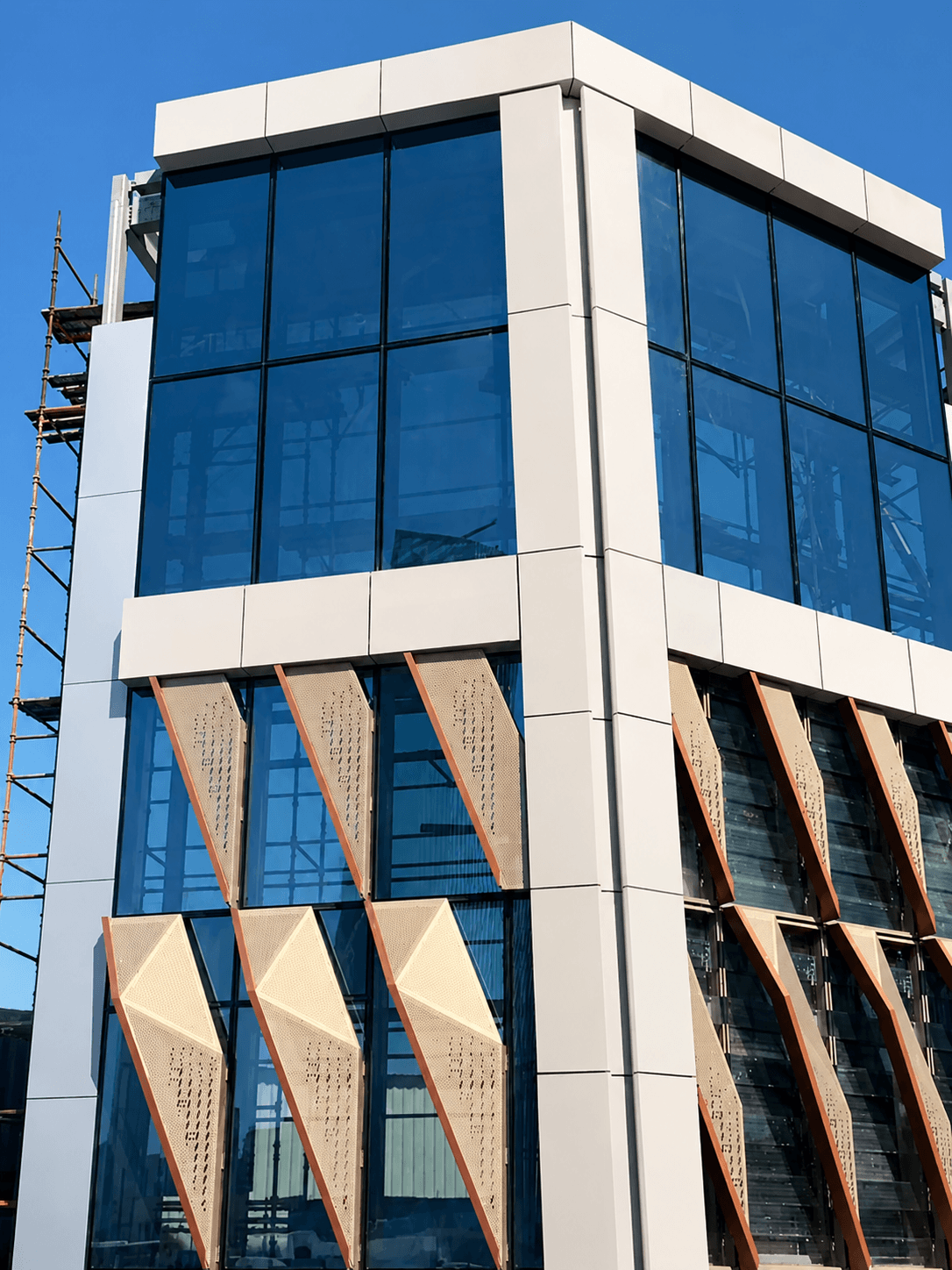

Building facade effect study with SpectraNyx Glass
FACADE STUDY

Custom tint facade effect

A facade visual study showing smart glass layout options for exterior elevation design, pattern presentation, and branded architectural glass effects.
