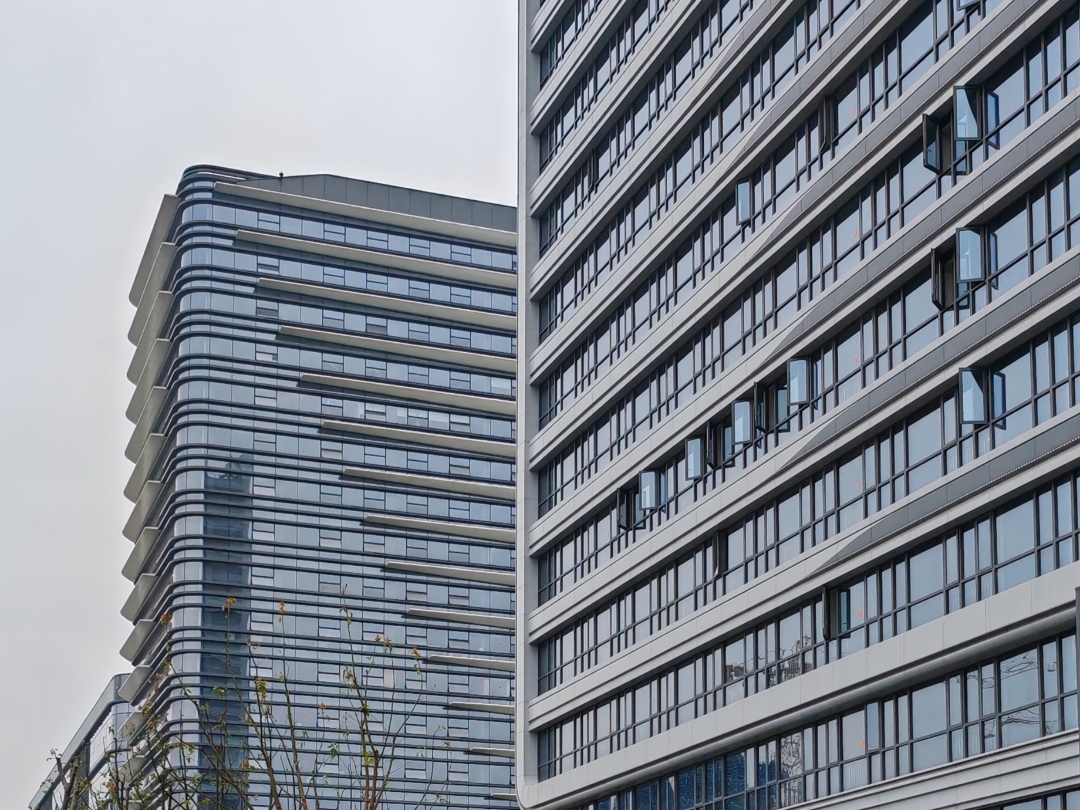

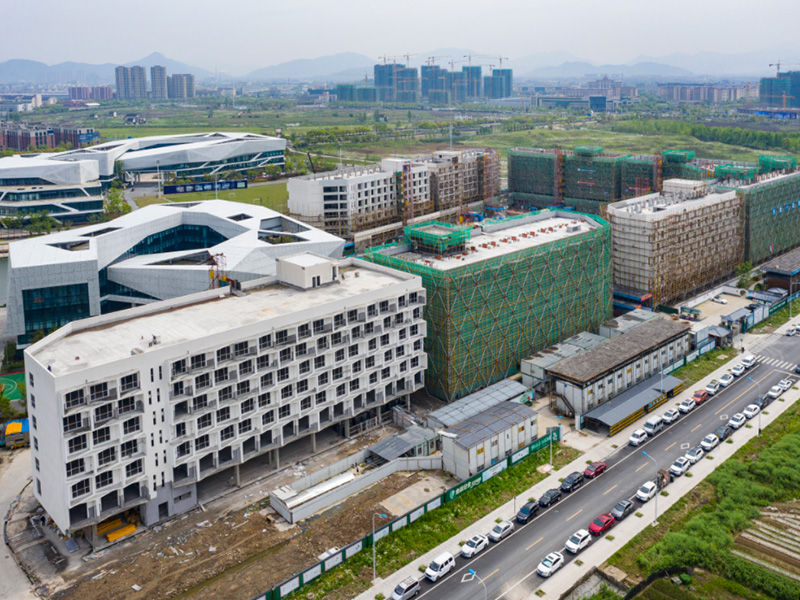

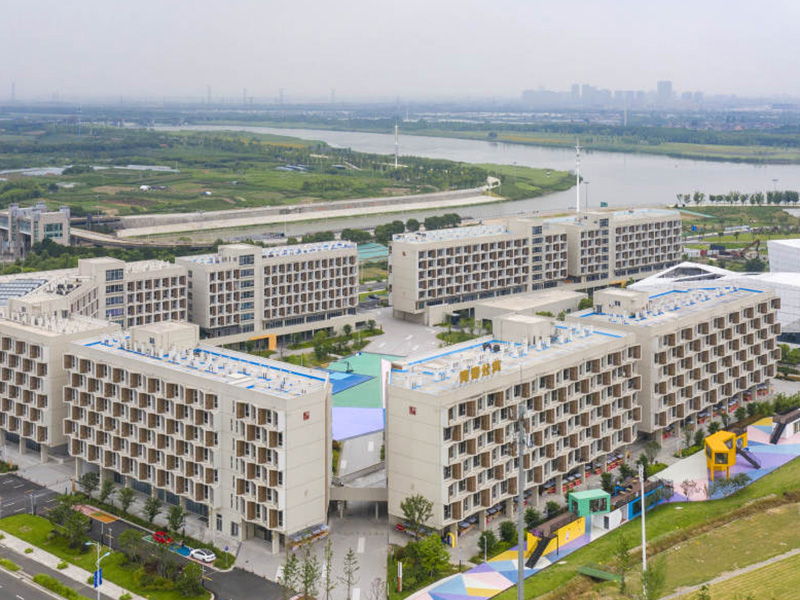

The Shangyu Rencai Apartment is a key residential development located in Shangyu Economic Development Zone, Shaoxing. Completed in 2024, the project spans 14,000 sqm of glazing across four residential towers, featuring a modern facade with extensive glass curtain walls. Reach Building supplied a three-system glazing solution, including 8mm and 6mm Low-E tempered insulated glass for thermal comfort and energy efficiency, as well as 8mm + 1.14mm + 8mm dry laminated tempered glass for safety-critical applications.

The glazing strategy for Shangyu Rencai Apartment deploys three complementary glass systems across 14,000 sqm of residential and civic facade, each calibrated to address specific performance requirements across different zones of a multi-tower talent housing development:

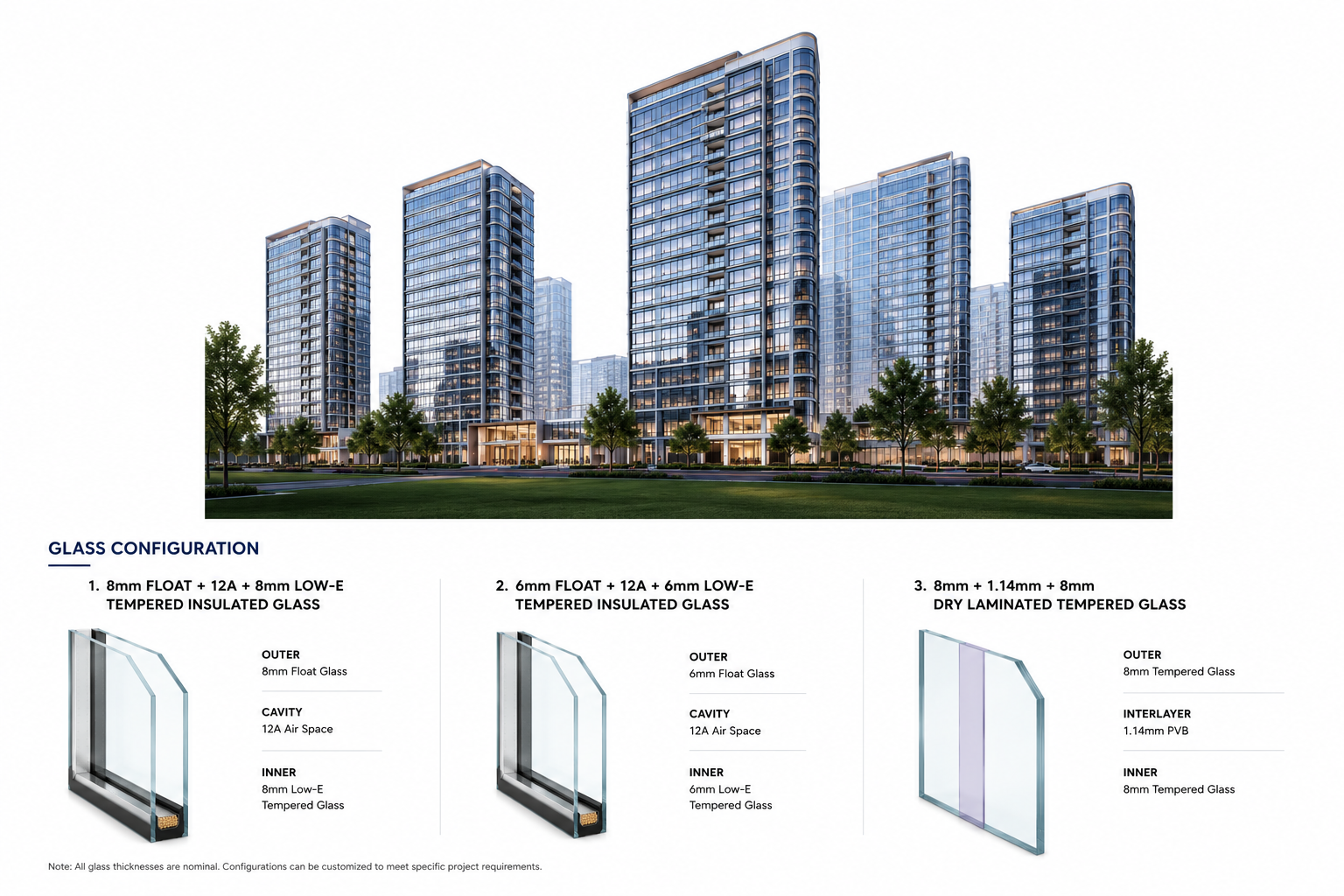

• Configuration: 8mm Float + 12A + 8mm Low-E Tempered Insulated Glass / 6mm Float + 12A + 6mm Low-E Tempered Insulated Glass / 8mm + 1.14mm + 8mm Dry Laminated Tempered Glass.
• Low-E Coating for Thermal Comfort: Both insulated glass configurations feature a Low-E coating that minimizes infrared radiation and solar heat gain, reducing cooling loads in summer and retaining warmth in winter, directly supporting the long-term living comfort of residents.
• 12A Cavities: The 12A cavity provides an effective balance between thermal insulation and structural stability, reducing heat transfer and improving acoustic comfort for residential buildings.
• Structural Flexibility: The 8mm Low-E configuration delivers enhanced structural strength for larger curtain wall panels and more exposed facade zones, while the 6mm configuration provides lightweight thermal efficiency suited to standard residential window applications.

• Laminated Glass: The 8mm + 1.14mm + 8mm dry laminated tempered glass provides critical safety performance in areas requiring fragment retention, such as entrances, low-level glazing, and high-traffic public zones.

The Shangyu Rencai Apartment project highlights Reach Building’s capability in delivering high-performance glazing solutions for modern residential developments. By integrating Low-E insulated glass and laminated safety glass across a 14,000 sqm facade, the project achieves a balanced combination of:

• Residential Comfort: Low-E insulated glass reduces heat transfer and improves indoor thermal stability, creating a comfortable living environment.
• Safety Performance: Laminated glass enhances impact resistance and ensures fragment retention, improving safety in residential and balcony applications.
• Sustainable Living: Energy-efficient glazing systems contribute to reduced energy consumption and support long-term sustainable urban development.
