Reach Building Insulated Glass: Efficiency, Silence, and Clarity

As modern architecture prioritizes carbon neutrality, high-performance Insulated glass（IGUs） has become the essential standard for sustainable building envelopes. These units utilize a hermetically sealed gas space between multiple panes to create a robust barrier for thermal, acoustic, and condensation control. Reach Building provides precision-engineered solutions that minimize HVAC energy loads while ensuring fog-free clarity and long-term durability for commercial facades and passive house projects.

Precision Tailored to Your Architectural Vision

From jumbo sizes to multi-layered coatings, explore how our technical standards support your high-performance design.
TECHNICAL SPECIFICATIONS
Thickness 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, etc.
Gas Type Air, Argon, Krypton
Width of Spacer 6A, 9A, 12A, 15A, 18A, 20A, 25A, 27A, etc.
Min Size 300mm * 300mm
Max Size 2800mm * 15000mm
Low-E Coated Single Silver, Double Silver, Triple Silver
Spacer Technology Corner Aluminum Strips, One-piece bent, Warm-edge spacer strips
Single Silver
Double Silver
Triple Silver

Economic Energy Balance

Our Single Silver Low-E provides a reliable thermal barrier and consistent energy savings, offering a cost-effective solution for standard residential and commercial architectural upgrades.

Advanced Solar Selectivity

Engineered for high-performance facades, Double Silver Low-E significantly reduces solar heat gain while maintaining exceptional natural light transparency for modern office environments.

Elite Thermal Barrier

Representing the pinnacle of coating technology, Triple Silver layers filter nearly all infrared heat to ensure peak interior comfort and maximum energy efficiency in the most demanding climates.

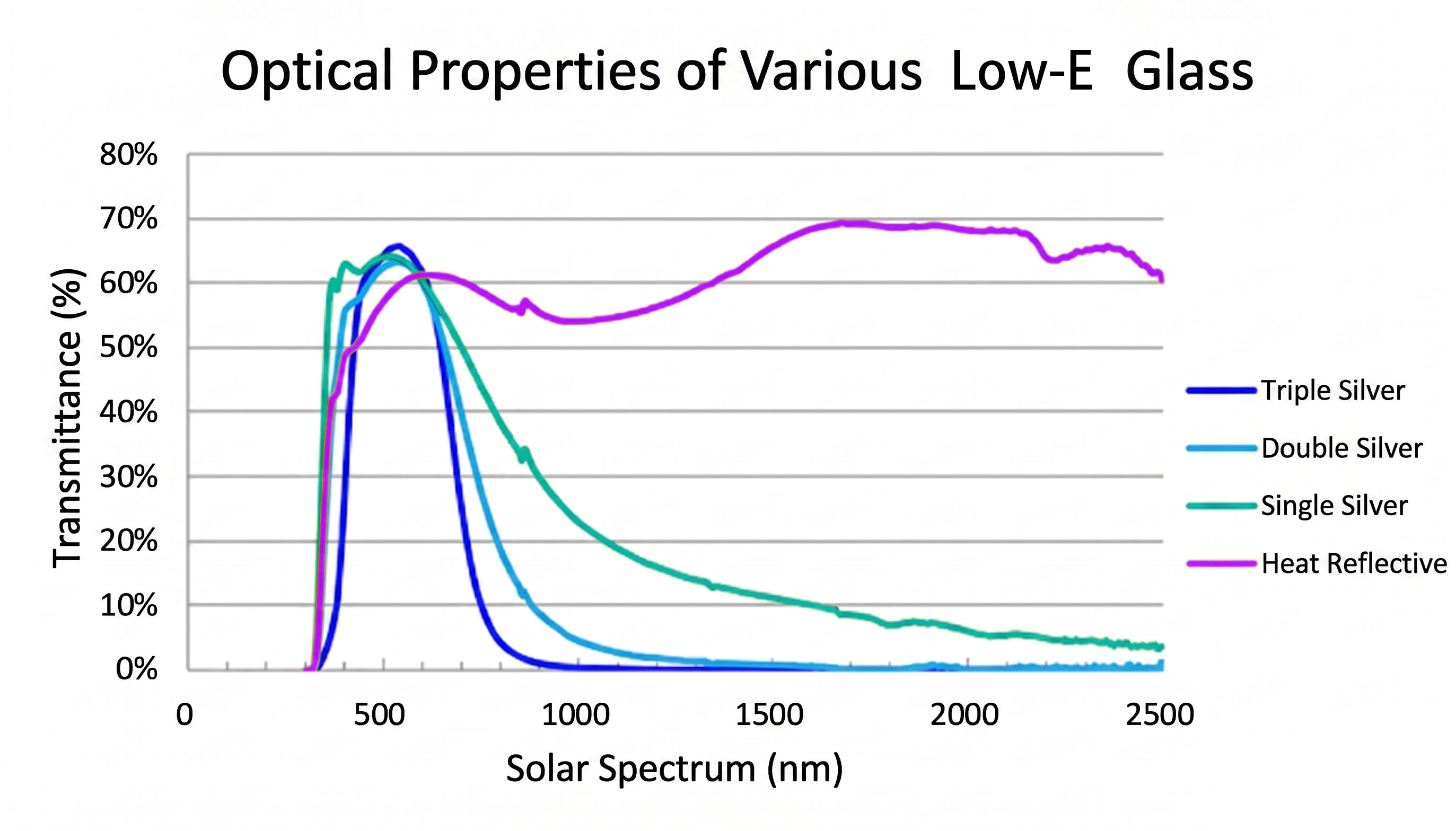

Optical Properties of Various Low-E Glass
Looking for a reliable insulated glass supplier for your next project?


Reach Building provides customized insulated glass solutions with professional technical support and fast delivery worldwide.

Core Advantages of Reach Building Insulated glass

Elevate your project’s energy performance with our high-precision insulated glass, engineered to provide unparalleled thermal insulation and acoustic tranquility for any architectural environment.
Energy Efficiency

Energy Efficiency

Reach Building Insulated glass significantly minimizes thermal transfer between indoor and outdoor environments, drastically reducing HVAC energy consumption throughout the seasons.

UV Reflection

UV Reflection

Integrated with high-performance Low-E coatings, our Insulated glass effectively filters out harmful ultraviolet rays, protecting interior furnishings from fading without compromising natural light.

Noise Reduction

Noise Reduction

The dual or triple-pane structure of our Insulated glass creates an advanced acoustic barrier, dampening external noise decibels to ensure a serene and quiet indoor atmosphere.

Condensation Control

Condensation Control

By utilizing advanced warm-edge spacers and dry gas filling, our Insulated glass maintains a stable internal temperature to prevent surface condensation, ensuring crystal-clear visibility in all weather.

Applications of Insulated Glass

From high-rise facades to specialized industrial equipment, discover how our high-performance insulated glass units redefine energy efficiency and comfort in diverse architectural environments.

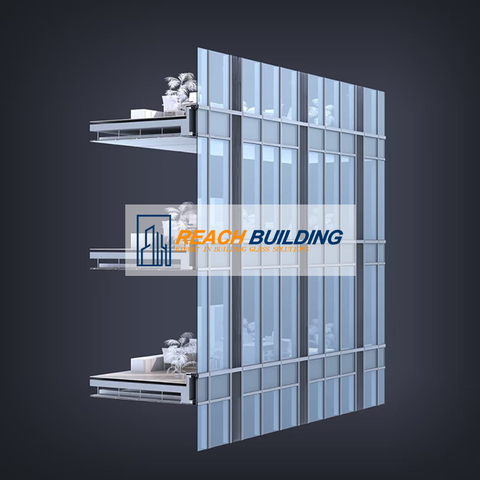

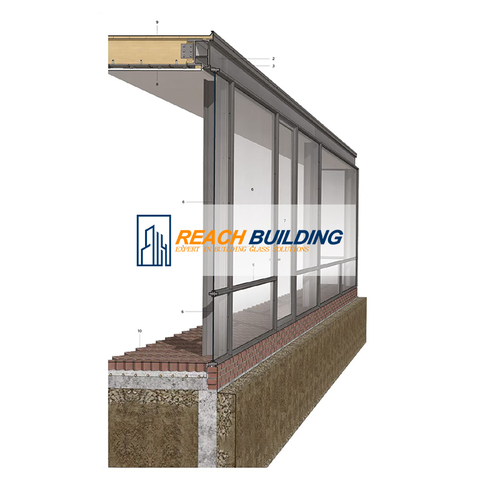

Facade & Curtain Wall Glass

Facade & Curtain Wall

Optimize building envelopes with insulated glass that balances maximum natural transparency with superior thermal insulation.

View Curtain Wall Solutions →

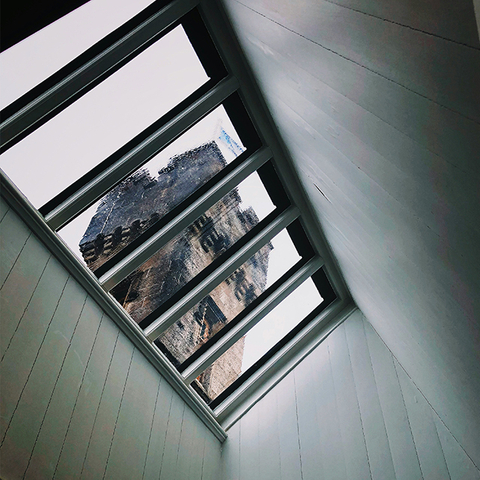

Skylight & Roof Glass

Skylight & Roof Glass

Enhance overhead glazing performance using insulated glass to effectively prevent heat loss and ensure a comfortable interior climate.

Explore Roofing Options →
Sports & Commercial Glass

Sports & Commercial

Create energy-efficient storefronts and grand commercial spaces with insulated glass designed for large-scale durability.

Discover Commercial Applications →
Industrial & Equipment Glass

Industrial & Equipment

Precision-engineered insulated glass for temperature-controlled industrial environments, including high-end refrigeration.

Learn More About Industrial Glass →

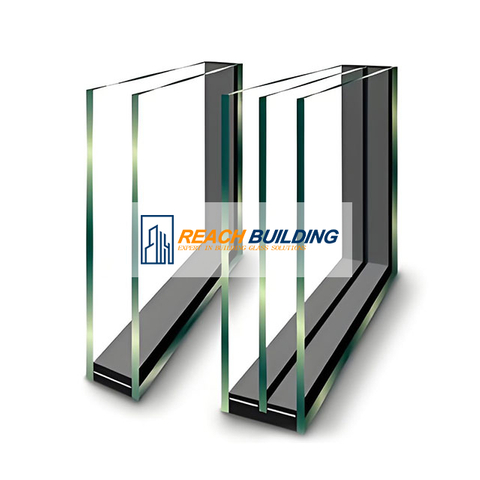

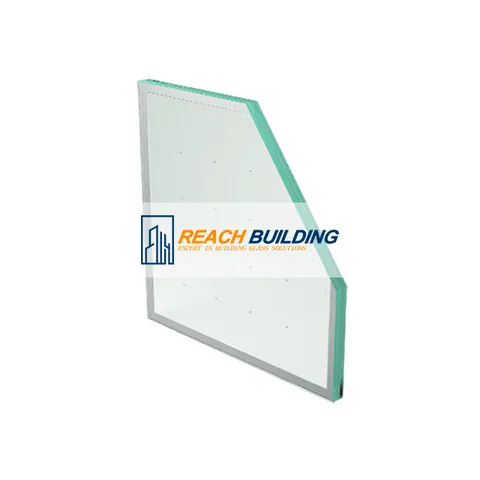

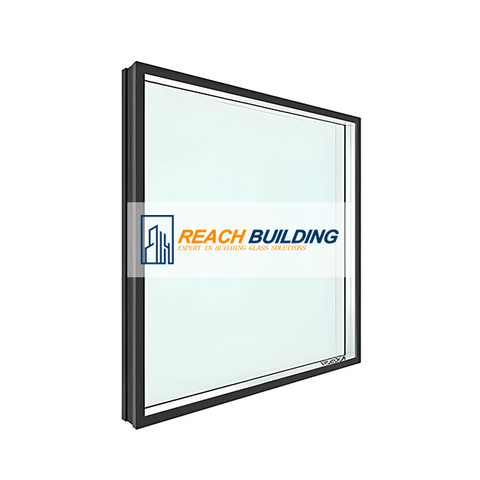

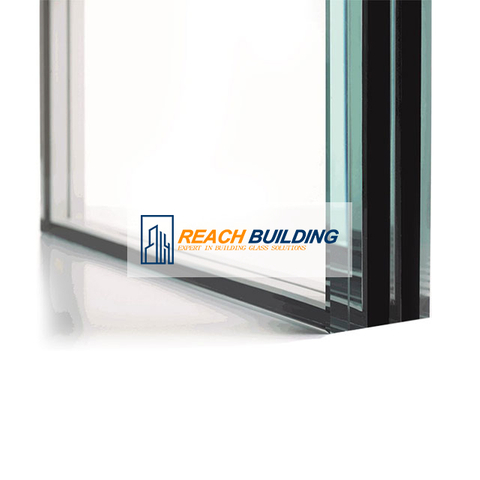

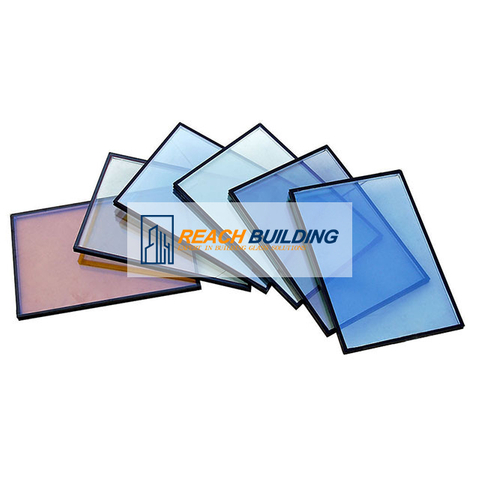

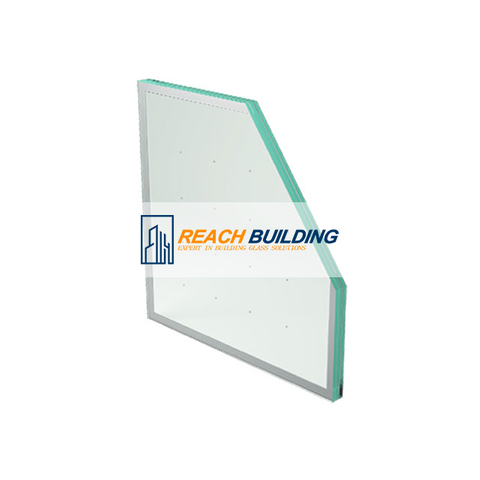

Insulated Glass Product Range

Explore our popular laminated glass options, available in various thicknesses, colors, and finishes.

Why Choose Reach Building Insulated Glass?

Discover the integrated manufacturing excellence and rigorous quality standards—from industry-leading technical parameters to global certifications and secure logistics—that make our insulated glass the trusted choice for premium architectural projects.

Technical Data

Explore the comprehensive performance metrics and technical benchmarks of Reach Building’s high-performance insulated glass. Click each section below to expand the detailed specifications.
Solar Reflective Glass Technical Data
Glass Makeup Reflective Colour Visible Light (%) Solar Energy (%) U-Value (W/m².K) SC SHGC
Trans. Refl. Outer Refl. Inner Trans. Refl. Outer Summer Winter
6C5108 coating on Clear+12A+6C Platinum 7 44 38 5 38 1.88 1.87 0.14 0.12
6CS120 coating on Clear+12A+6C Sterling Silver 18 32 29 13 26 2.65 2.52 0.27 0.24
6CS136 coating on Clear+12A+6C Light blue 33 23 23 25 17 2.76 2.63 0.42 0.36
6CS150 coating on Clear+12A+6C Lighty sky blue 46 21 20 37 15 2.81 2.67 0.54 0.47
6C5166 coating on Clear+12A+6C Slightly blue 60 23 23 52 17 2.82 2.66 0.67 0.59
6CS320 coating on Euro grey+12A+6C Dark grey 9 11 30 7 14 2.66 2.52 0.19 0.17
6CS336 coating on Euro grey+12A+6C Grey 16 9 22 15 9 2.77 2.63 0.27 0.24
6CS350 coating on Euro grey+12A+6C Grey 22 8 21 21 8 2.81 2.67 0.35 0.31
6C5366 coating an Euro grey+12A+6C Grey 29 22 8 26 8 2.84 2.66 0.41 0.36
6CS420 coating on Green+12A+6C Deep green 15 23 29 8 13 2.66 2.53 0.20 0.18
6CS436 coating on Green+12A+6C Green 27 17 22 15 10 2.76 2.64 0.29 0.25
6C5450 coating on Green+12A+6C Light blue green 37 15 21 21 10 2.82 2.67 0.35 0.31
6CS466 coating on Green+12A+6C Light green 49 16 23 27 10 2.82 2.66 0.41 0.36
6 CS520 coating on Crystal grey+12A+6C Dark grey 14 18 30 11 15 2.65 2.54 0.22 0.19
6 CS536 coating on Crystal grey+12A+6C Grey 24 13 22 19 11 2.75 2.64 0.32 0.28
6 CS550 coating on Crystal grey+12A+6C Grey 33 12 21 28 10 2.82 2.67 0.42 0.36
6 CS566 coating on Crystal grey+12A+6C Light grey 42 24 13 37 10 2.83 2.66 0.52 0.45
6 CS720 coating on Blue+12A+6C Dark blue 12 16 30 8 12 2.65 2.52 0.20 0.18
6CS736 coating on Blue+12A+6C Blue 22 11 26 15 9 2.76 2.63 0.29 0.25
6CS750 coating on Blue+12A+6C Royale blue 29 10 22 21 9 2.81 2.67 0.35 0.31
6CS766 coating on Blue+12A+6C Light blue 38 12 22 27 9 2.82 2.68 0.45 0.40
6C5020 coating on Low-iron 12A+6Low-iron Sterling Silver 20 32 27 15 25 2.65 2.52 0.28 0.24
6CS036 coating on Low-iron+12A+6Low-iron Light blue 35 23 23 28 18 2.76 2.63 0.43 0.37
6C5050 coating on Low-iron-12A+6Low-tron Lighty sky blue 48 20 22 40 15 2.81 2.67 0.55 0.48
6C5066 coating on Low-iron+12A+6Low-iron Slightly blue 62 23 24 54 16 2.82 2.66 0.68 0.60
6CS120 Coating on Clear+12A+6CL184 Sterling Silver 17 32 25 10 26 1.74 1.76 0.21 0.19
6CS136 Coating on Clear+12A+6CL184 Light blue 31 23 19 18 19 1.74 1.76 0.33 0.29
6C5150 Coating on Clear+12A+6CL184 Lighty sky blue 43 19 18 25 19 1.74 1.76 0.43 0.37
6CS166 Coating on Clear+12A+6CL184 Slightly blue 58 21 21 38 23 1.74 1.76 0.56 0.49
6C5320 Coating on Euro grey+12A+6CL184 Dark grey 9 11 27 6 12 1.74 1.76 0.16 0.14
6C5336 Coating on Euro grey+12A+6CL184 Grey 15 9 18 11 9 1.74 1.76 0.22 0.19
6CS350 Coating on Euro grey+12A+6CL184 Grey 21 8 17 15 9 1.74 1.76 0.28 0.24
6CS366 Coating on Euro grey+12A+6CL184 Grey 28 8 19 20 9 1.74 1.76 0.32 0.28
6CS420 Coating on Green+12A+6CL184 Deep green 14 23 24 6 12 1.74 1.76 0.18 0.15
6C5436 Coating on Green+12A+6C1.184 Green 26 17 19 11 10 1.74 1.76 0.24 0.21
6CS450 Coating on Green+12A+6CL184 Light blue green 35 15 17 15 9 1.74 1.76 0.29 0.26
6C5466 Coating on Green 12A+6CL184 Light green 46 15 19 20 10 1.74 1.76 0.35 0.31
6 CS720 coating on Blue+12A+6CL184 Dark blue 11 16 24 6 12 1.74 1.76 0.17 0.15
6C5736 coating on Blue+12A+6CL184 Blue 20 12 18 11 9 1.74 1.76 0.24 0.21
6CS750 coating on Blue+12A+6CL184 Royale blue 28 11 17 15 9 1.74 1.76 0.29 0.25
6CS766 coating on Blue+12A+6CL184 Light blue 36 11 18 20 10 1.74 1.76 0.35 0.31

Certification

CCC
CCC
EN 12150
EN 12150
ASTM
ASTM
CNAS
CNAS
IGCC
IGCC

Packaging & Shipping

Eliminate the frustration of transit breakage and moisture damage with Reach Building’s engineered packaging systems, ensuring your high-performance insulated glass arrives in pristine, ready-to-install condition.
Explore Reach Building's Secure Shipping Solutions →
REACH BUILDING LCL Triangle Wooden Frames
REACH BUILDING Fumigation-Free Wooden Crates
Protective Film & Corner Guards

FAQ

  • Q Do you offer custom sizes and thicknesses?

    A Absolutely. All IGUs can be customized in glass type, thickness, spacer width, coating, and gas filling to fit your project’s specifications.

  • Q What is the lifespan of insulated glass?

    A With proper installation, Reach Building IGUs can last 20–25 years or more without seal failure.

  • Q Can insulated glass be combined with Low-E or laminated glass?

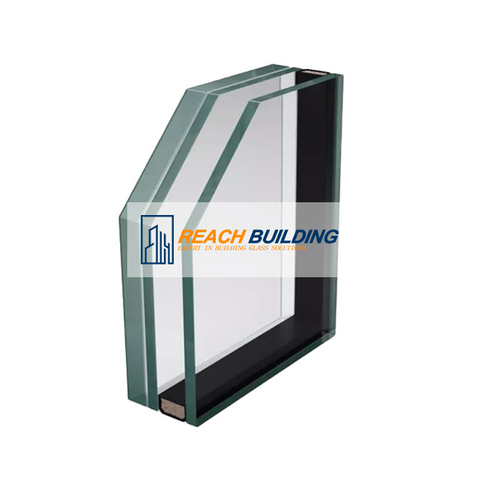

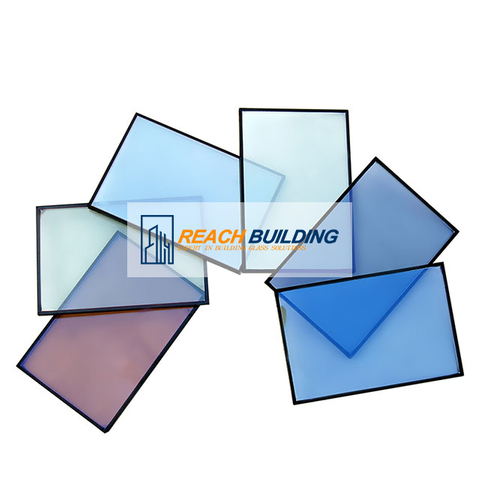

    A Yes. Reach Building provides Low-E Insulated Glass and Laminated Insulated Glass for superior energy and safety performance.

  • Q What gases are used in insulated glass?

    A Typically air, argon, or krypton is used to enhance insulation performance.

  • Q What is the structure of insulated glass?

    A It consists of two or more glass panes separated by a spacer filled with air or inert gas and sealed along the edges to form a hermetic unit.
