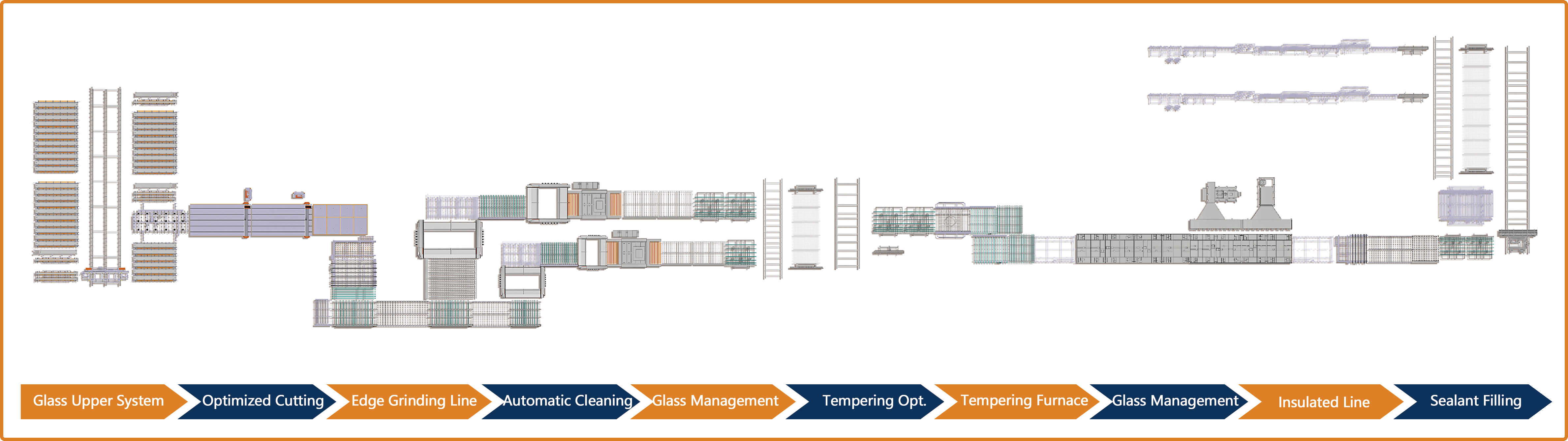

Want to see exactly how your order flows inside our factory? We have integrated cutting, grinding, washing, tempering, and sorting into the REACH seamless connection network, redefining intelligent deep processing. Through rigorous quality control and specialized scratch prevention design at every station, this continuous flow protects the pristine glass surface while accelerating turnaround times.Let's walk through each critical stage below to see how our specialized production equipment works to perfect your glass.

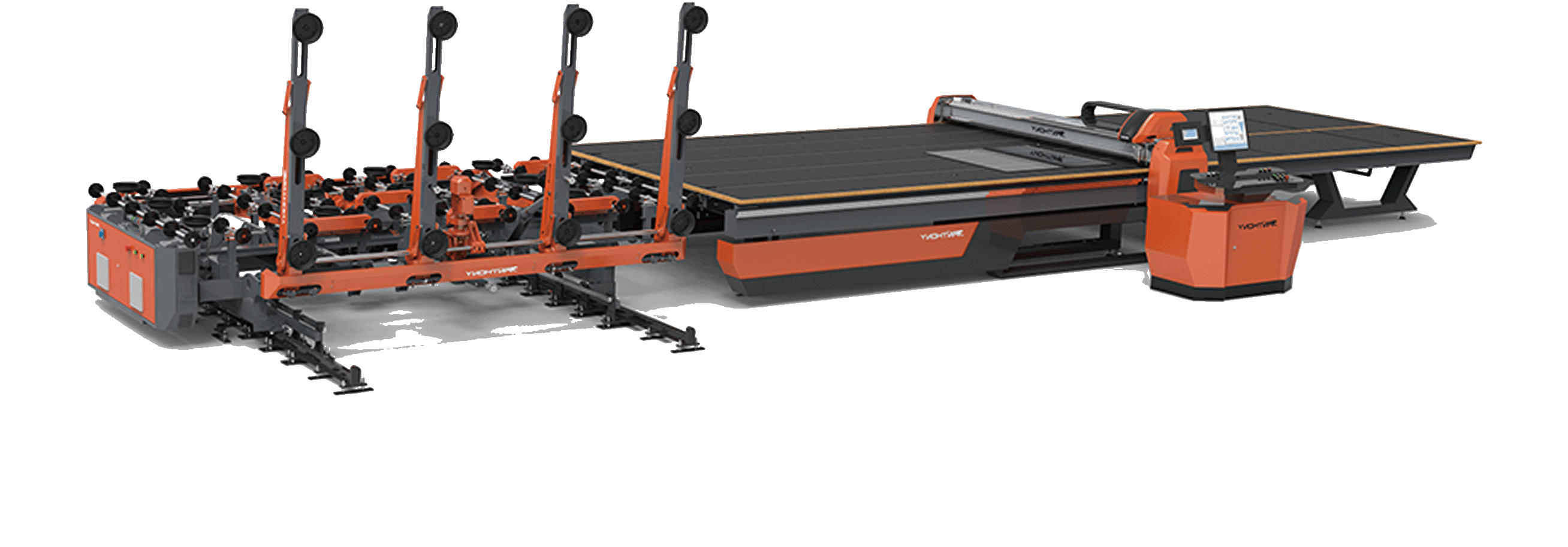

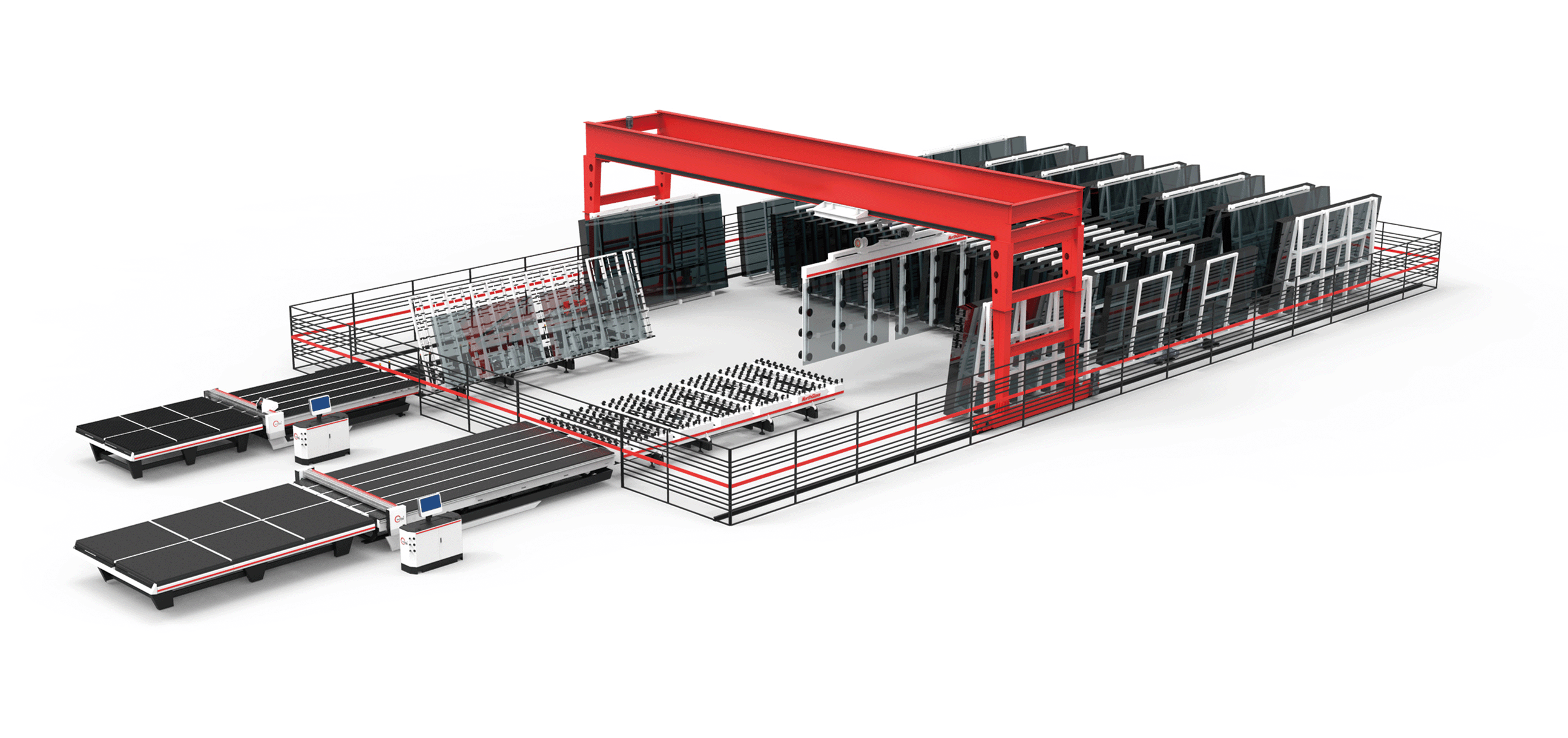

Protecting Glass Quality from the First Step

The system automatically stores and positions large glass sheets for cutting, reducing manual handling before processing.

• Better protection against scratches and edge damage
• Stable handling of large and heavy glass sheets
• Smoother production flow for bulk and multi-size orders

Key Specifications

• Maximum glass size: 6,000 × 3,300 mm
• Rack positioning accuracy: ±1 mm
• Rack moving speed: 3–15 m/min
• Maximum rack load: 5 tons

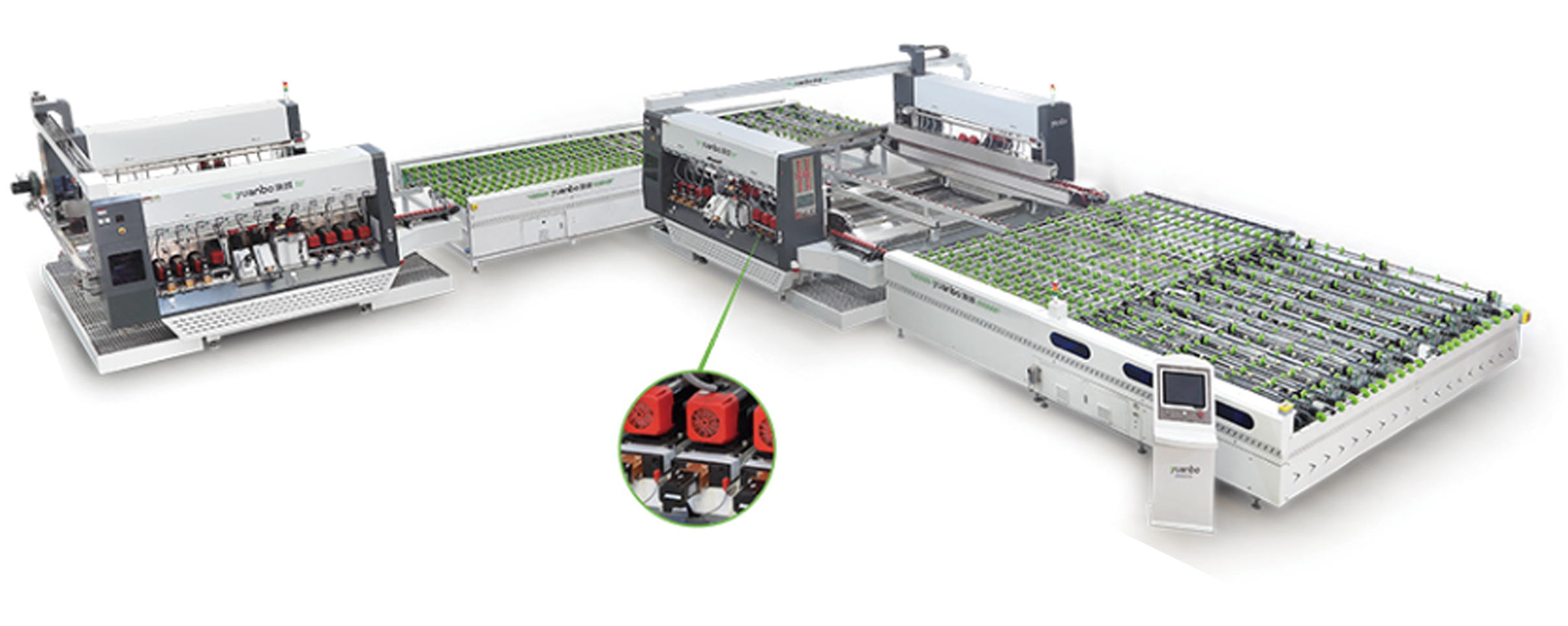

Cleaner, More Uniform Glass Edges

The line automatically identifies glass dimensions and completes bottom-edge grinding, chamfering and Low-E edge deletion in one continuous process.

• More uniform edges across the order
• Lower risk of edge chips
• Better preparation for tempering and assembly

Key Specifications

• Maximum processing size: 4,500 × 3,000 mm
• Glass thickness: 3–25 mm
• Chamfer width: 1–3 mm
• Bottom-edge grinding allowance: up to 5 mm

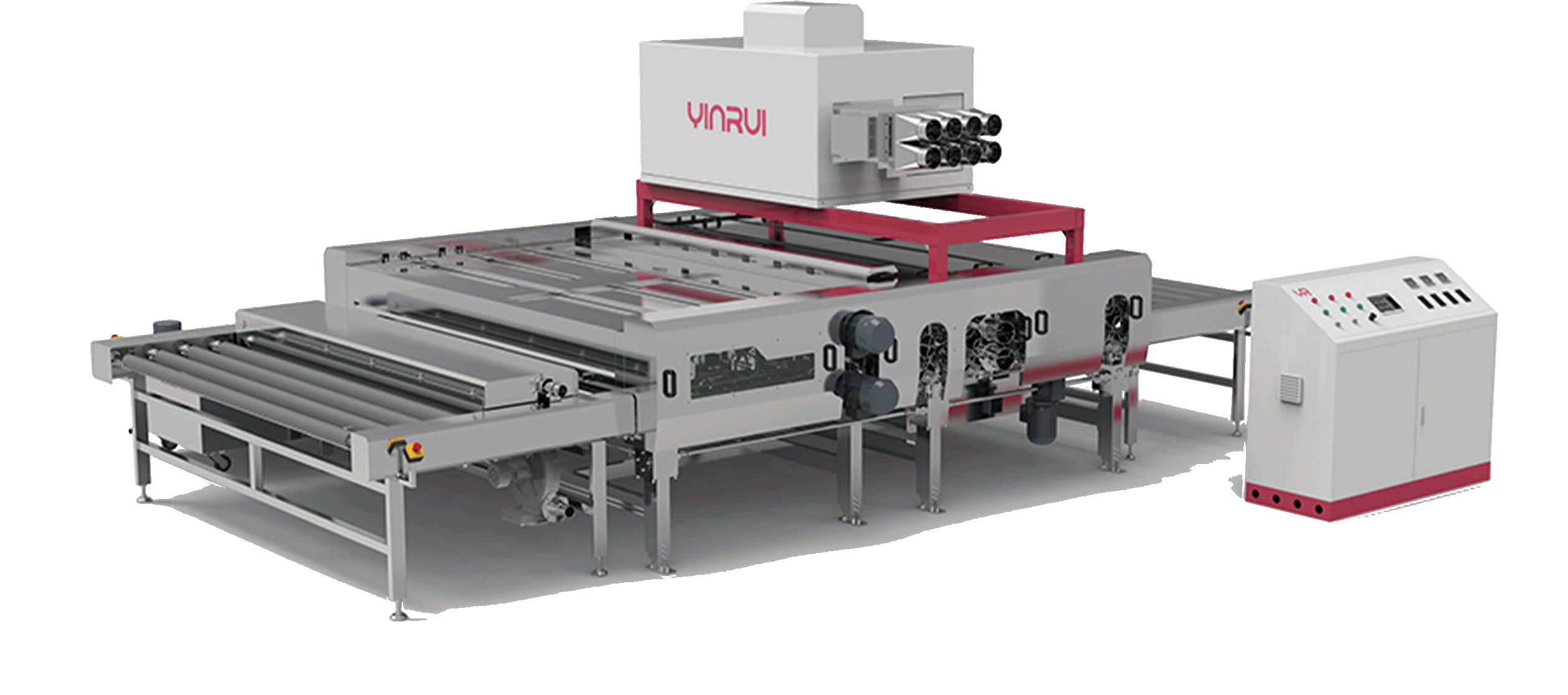

Cleaner Glass Surfaces Before Further Processing

The washing line removes grinding dust, cutting residue and surface contaminants before glass moves to the next stage. Cleaner surfaces make inspection easier and help reduce visible dirt, residue and defects that may appear after laminating or insulated glass assembly.

• Cleaner finished glass surfaces
• Fewer visible stains and residue
• Lower risk of lamination defects

Key Specifications

• Maximum glass size: 2,500 mm
• Minimum glass size: 500 × 400 mm
• Glass thickness: 3–19 mm
• Washing speed: 3–25 m/min

Better Sorting for Multi-Spec Glass Orders

The sorting system measures, stores and retrieves processed glass by order sequence and specification.

• Fewer order mix-ups between batches
• Easier handling of mixed specifications
• Smoother flow into the next stage

Key Specifications

• AGV trolley speed: 200 m/min
• Glass transmission speed: 45 m/min
• Supported glass sizes:2,500 × 2,000 mm, 3,000 × 2,500 mm,

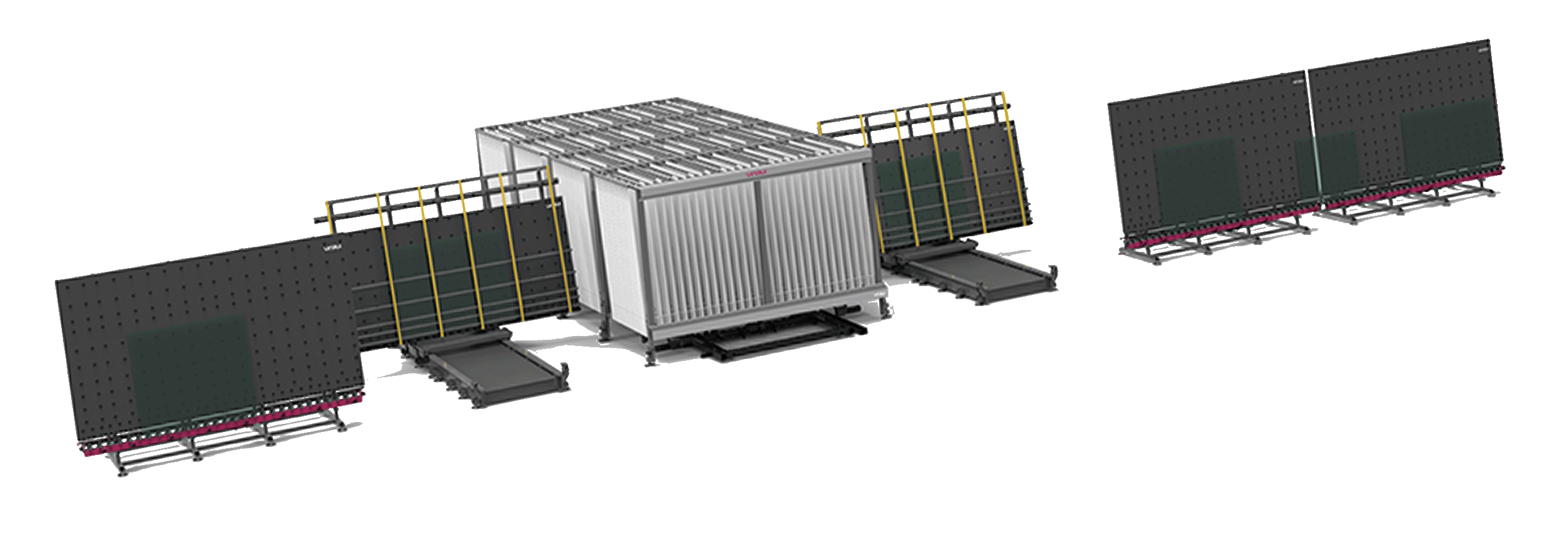

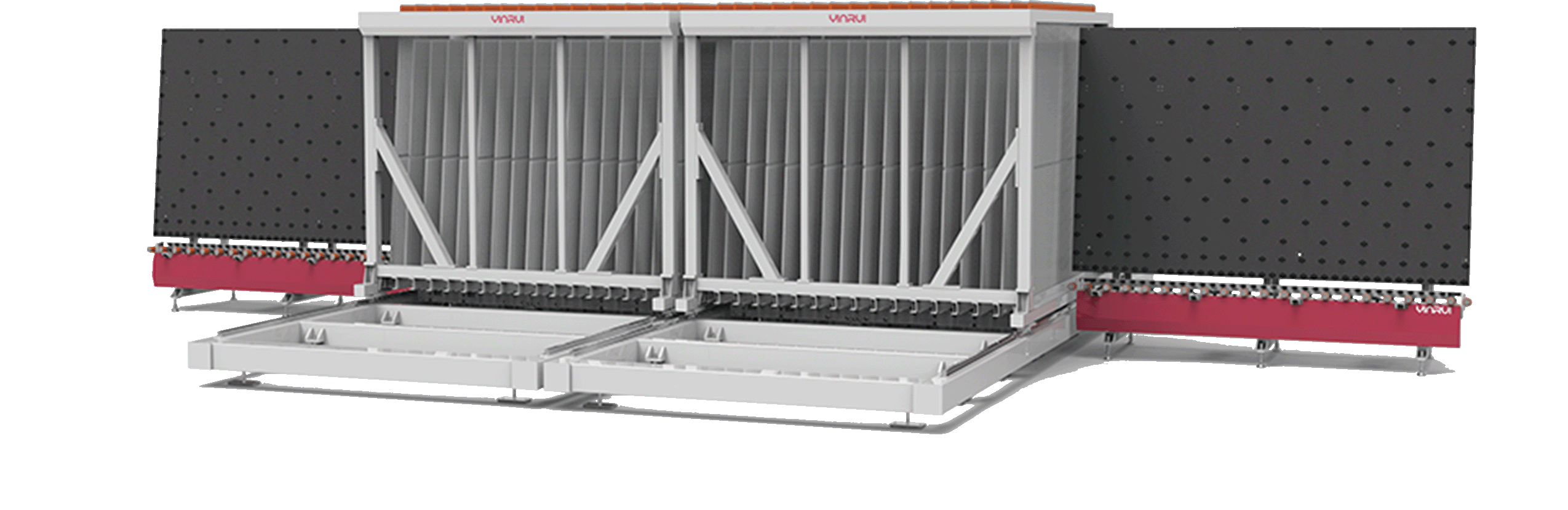

Organized Storage Between Processing Stages

The vertical shelving system stores processed panels by sequence and retrieves them when the next production stage is ready.

• Less damage from repeated restacking
• Better order sequence between processes
• Faster retrieval for further processing

Key Specifications

• Glass conveying speed: 45 m/min
• Grid structure moving speed: ≥10 m/min

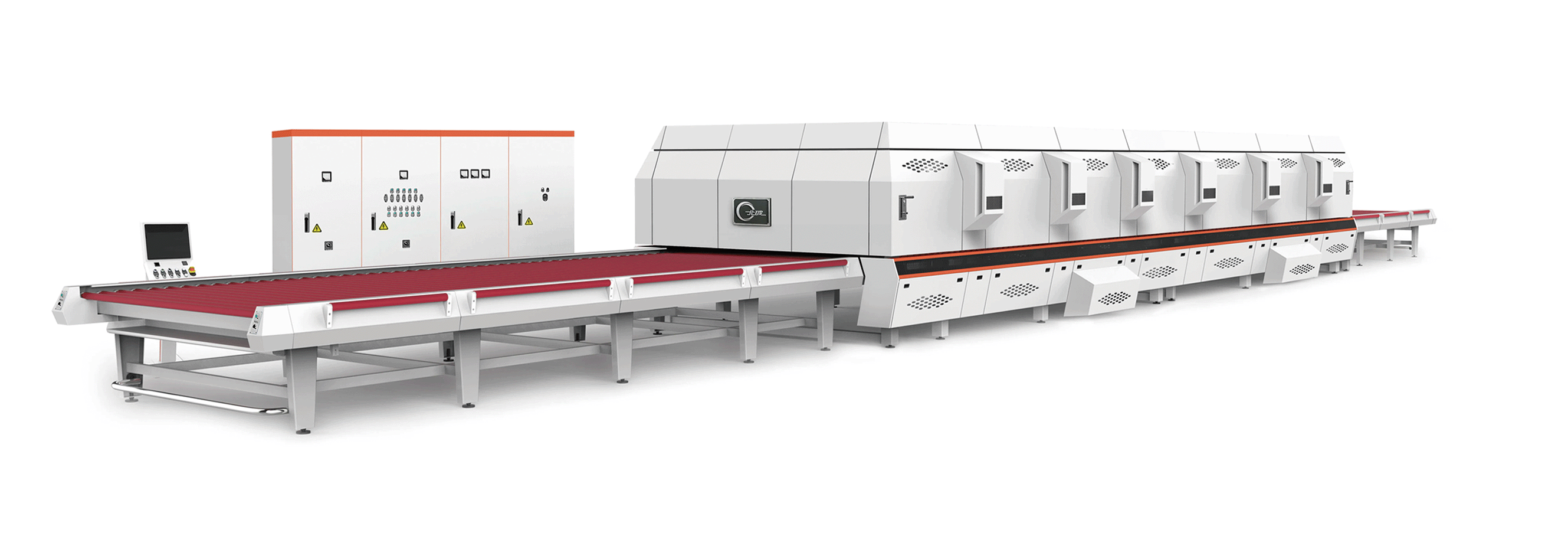

Stable Tempering for Bulk Glass Orders

The double-chamber line heats and cools architectural glass through a controlled convection tempering process.

• More consistent strength across large batches
• Better appearance consistency between panels
• Reliable processing of oversized glass

Key Specifications

• Maximum processing size: 3,300 × 12,000 mm
• Glass thickness: 3–19 mm
• Double-chamber tempering configuration
• Gap-free convection heating system
• Intelligent temperature control
• Symmetrical heating technology

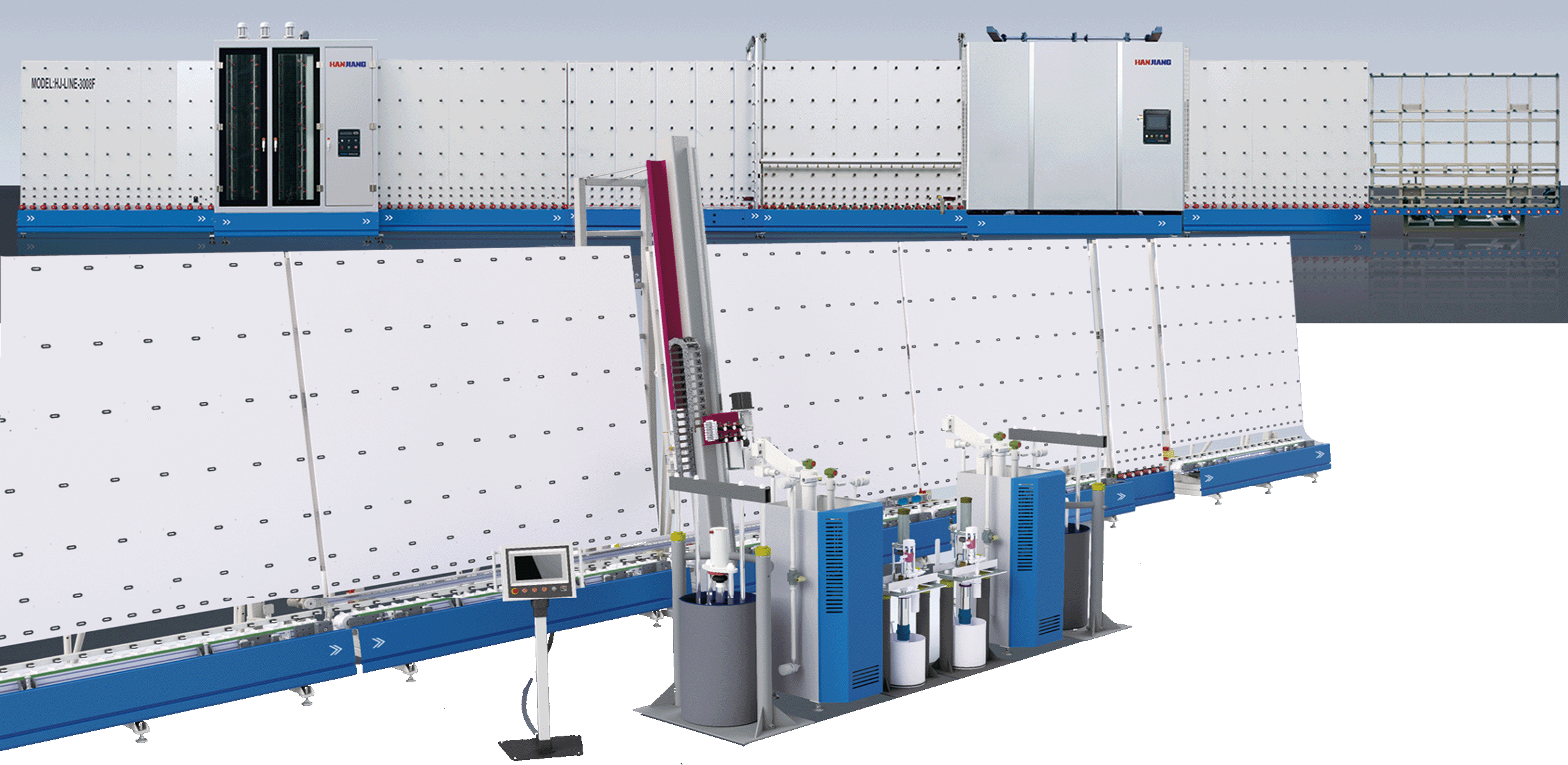

More Consistent IGU Assembly

The line automatically positions glass panes, assembles insulating glass units and completes gas filling in line.

• More consistent pane alignment
• Better control of overall unit thickness
• More uniform assembly across the order

Key Specifications

• Insulating glass thickness: 10–48 mm
• Maximum glass size: 2,500 × 3,000 mm
• Minimum glass size: 300 × 450 mm
