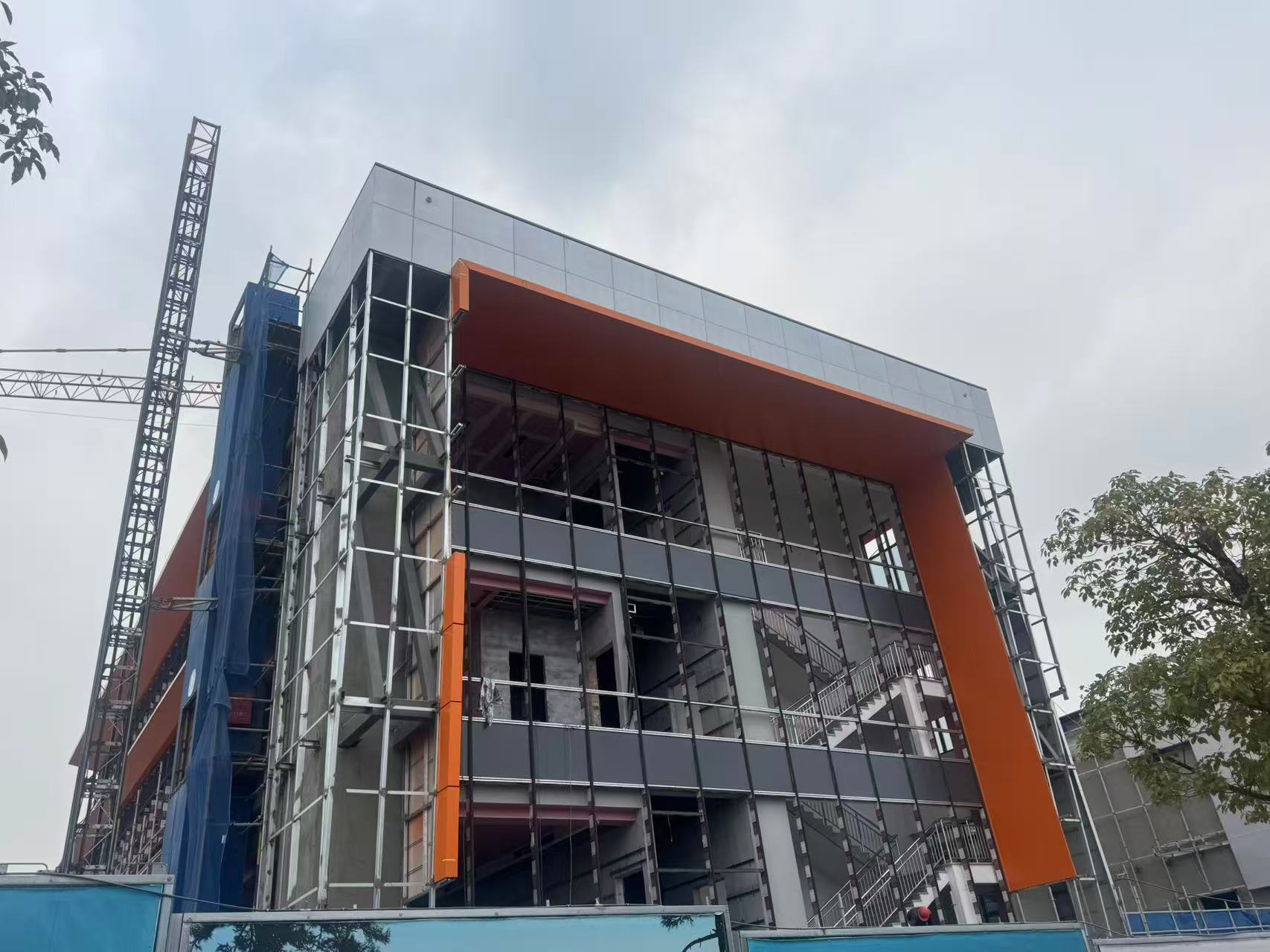

Shangyu Workers' Home: A Masterpiece of High-Performance Public Architecture

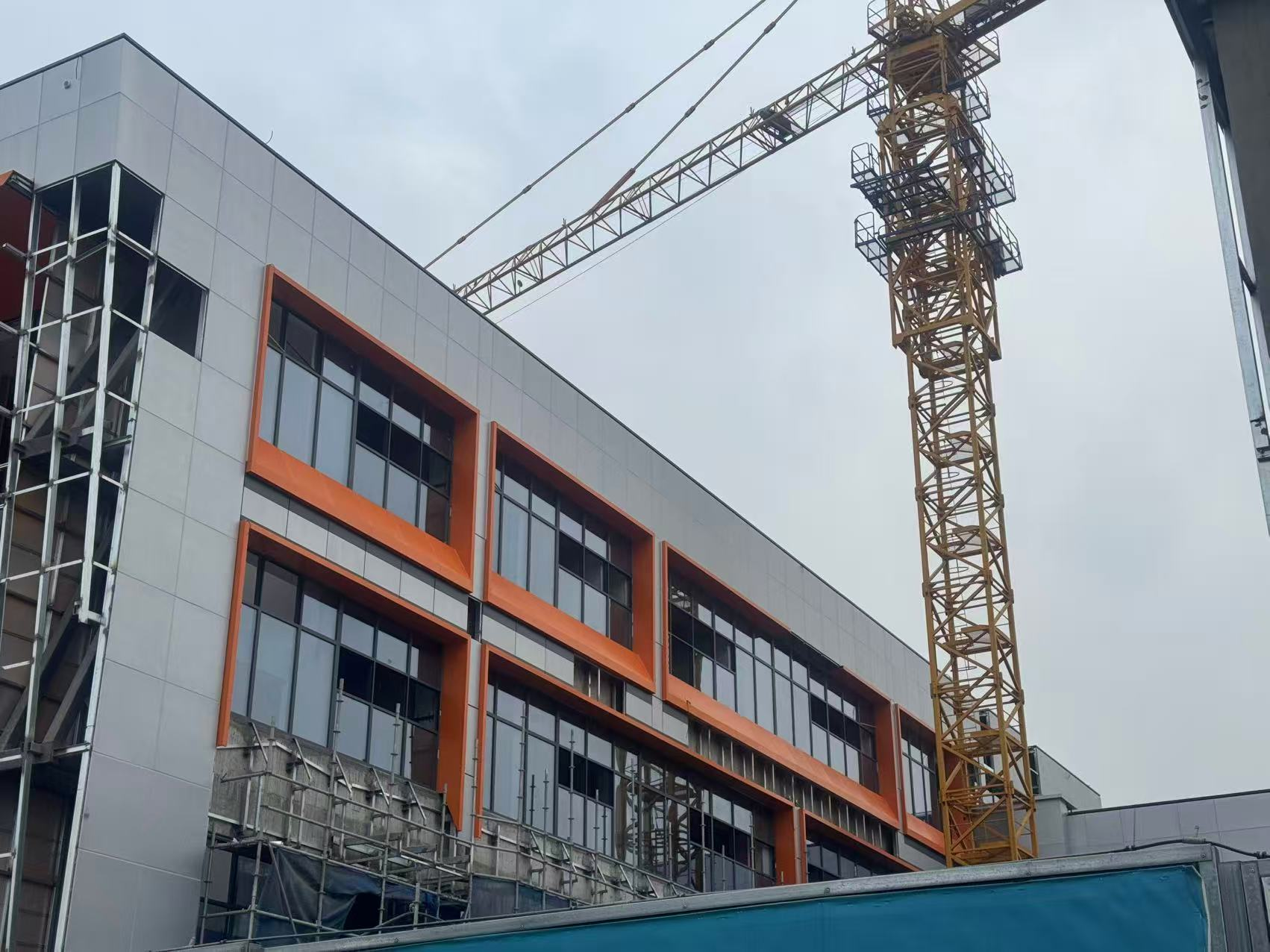

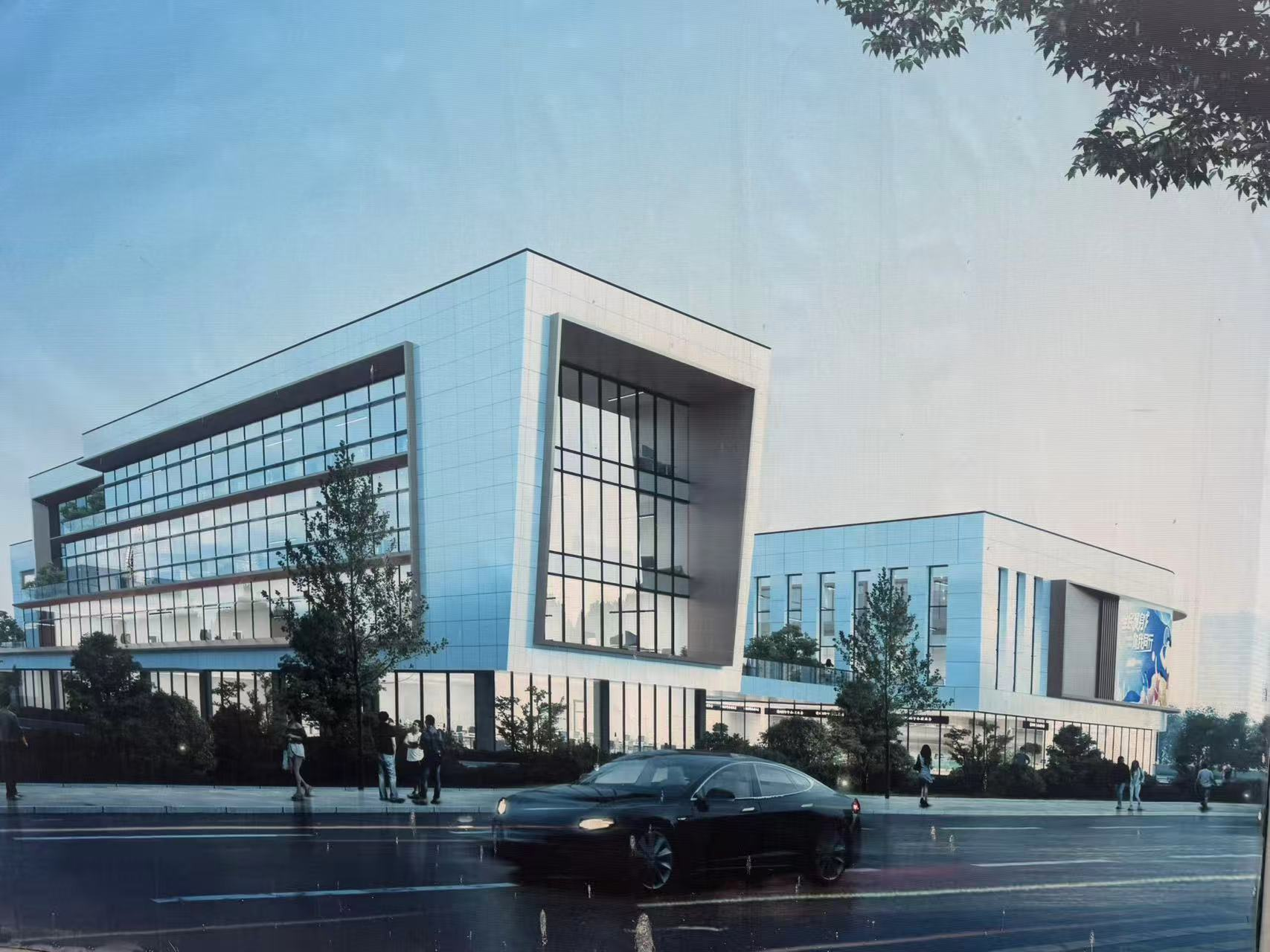

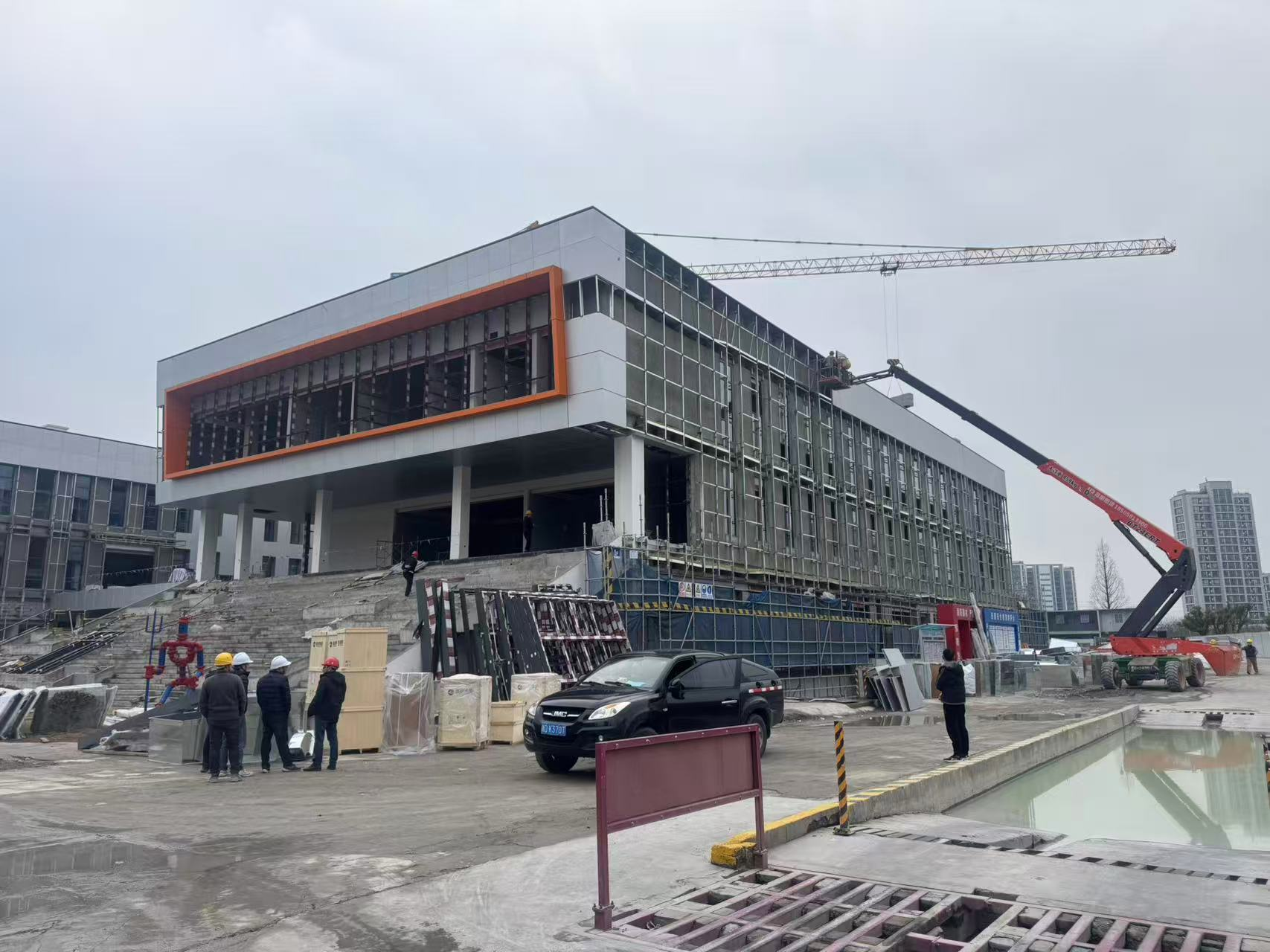

Located in the Shangyu District of Shaoxing, the Workers' Home is a landmark multi-functional complex dedicated to training, culture, and wellness. Spanning a total construction area of 14,300 sqm, the project incorporates ultra-clear tempered glass as part of its glazing system, balancing the transparency of modern design with the rigorous safety and energy-efficiency standards required for large-scale public infrastructure.

The centerpiece of the project’s architectural skin is the extra-large curtain wall units (≥7m²). To ensure structural integrity and thermal excellence at this scale, Reach Building engineered a sophisticated 4-layer tempered composite structure:

• Configuration: 6mm Ultra-Clear Tempered + 1.52PVB + 6mm Ultra-Clear Tempered (Low-E) + 12A + 8mm Ultra-Clear Tempered + 12A + 8mm Low-E Ultra-Clear Tempered.

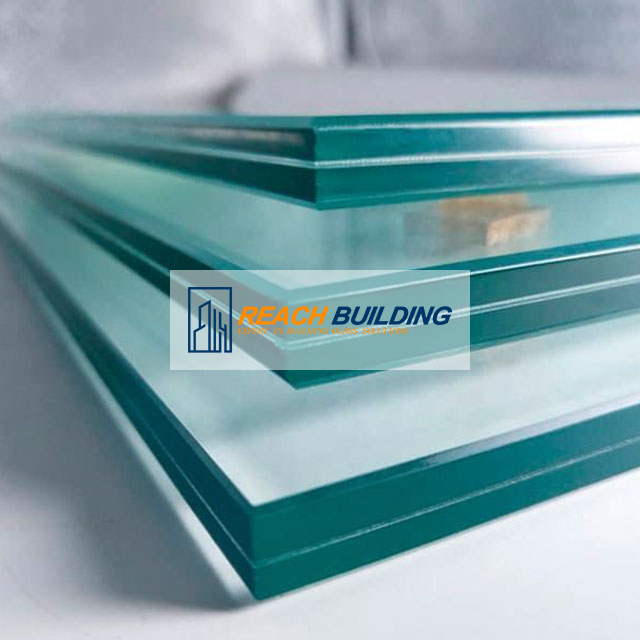

• Laminated Safety Matrix: The 1.52PVB interlayer ensures the glass remains intact even under extreme impact, providing a "safety shield" for the building’s exterior.
• Dual 12A Cavities: The double-argon-filled air gaps act as a powerful thermal and acoustic barrier, drastically reducing heat transfer and urban noise.
• Double Low-E Performance: Featuring two layers of Low-E coating to minimize infrared transmission, ensuring the building exceeds modern green building energy codes and significantly lowers carbon emissions.

• Ultra-Clear Aesthetics: By using high-transparency ultra-white glass, the project achieves maximum neutral light and a crystal-clear visual identity.

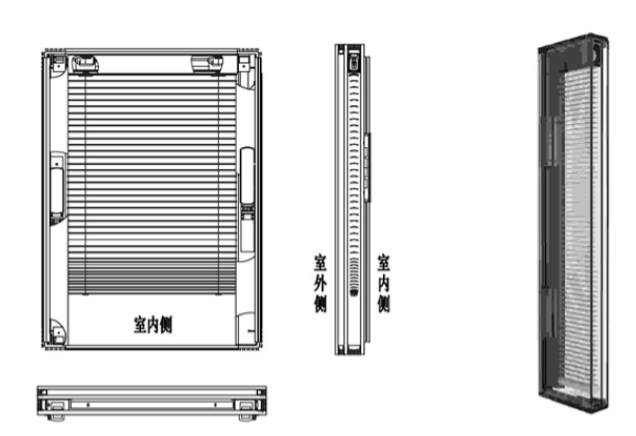

The Shangyu Workers' Home stands as a testament to Reach Building’s capability in handling complex, high-spec public tenders. By integrating integrated blinds (25A spacer) in the office areas and triple-glazed insulated units across the main structure, the project achieves a seamless blend of:

• Structural Integrity: Meeting the rigorous safety demands of large-span curtain walls.
• Thermal Efficiency: Reducing overall building energy consumption through dual-cavity technology.
• Sustainable Design: Contributing to long-term carbon footprint reduction through high-performance coatings.
