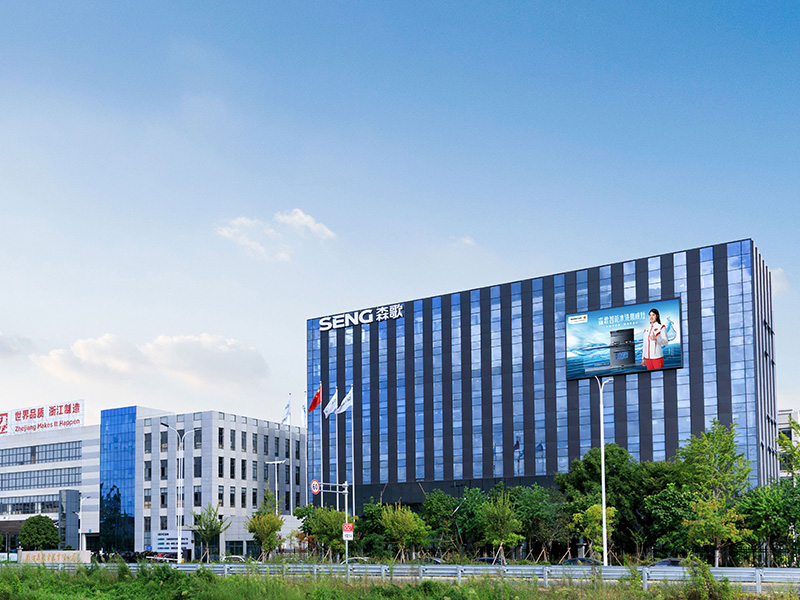

Completed in 2024, this 18,000 sqm facade glazing project reflects the company’s focus on advanced manufacturing environments and modern industrial architecture. Designed to accommodate both production and office functions, the project required a versatile glazing solution that balances structural performance, thermal efficiency, and long-term durability. Reach Building delivered a comprehensive facade system integrating multiple Low-E insulated glass configurations with laminated safety glass to meet diverse functional demands.

The facade glazing strategy for Zhejiang Seng adopts a multi-configuration approach, combining Low-E insulated glass and laminated insulated systems to address varying structural, thermal, and safety requirements across the 18,000 sqm facility:

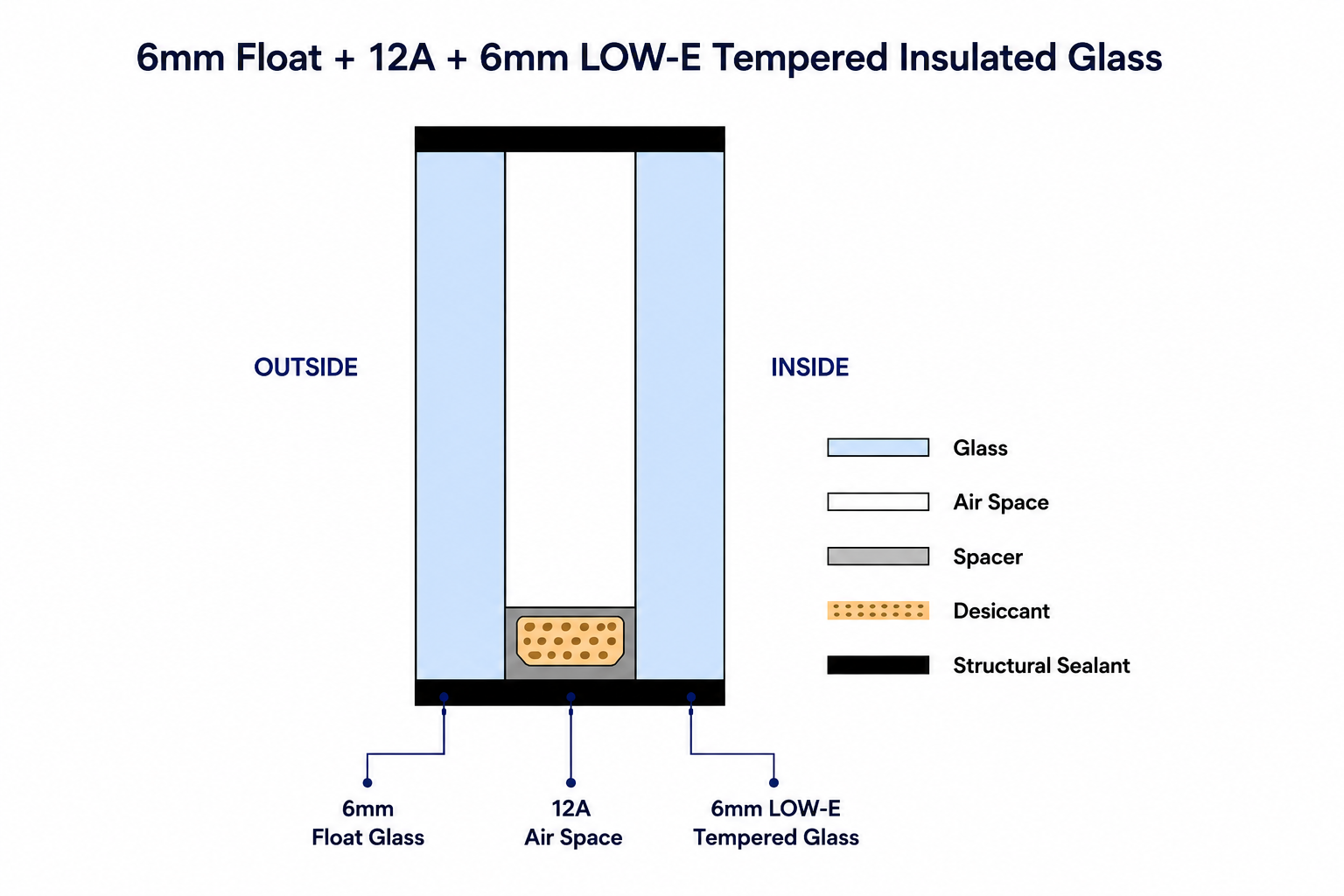

• Configuration: 5mm Float + 12A + 5mm Low-E Tempered Insulated / 6mm Float + 12A + 6mm Low-E Tempered Insulated / 10mm Float + 12A + 10mm Low-E Tempered Insulated / 8mm + 1.52mm + 8mm Dry Laminated Tempered + 12A + 8mm Tempered Insulated.
• Multi-Thickness Strategy for Structural Adaptability: Different glass thicknesses provide flexibility across facade zones, balancing weight, strength, and wind load performance for various building sections.
• Low-E Insulated Glass for Thermal Control: All insulated configurations incorporate Low-E coatings to reduce solar heat gain and improve overall energy efficiency, supporting stable indoor conditions in both office and production environments.
• Laminated Insulated Glass for Safety: The laminated configuration enhances impact resistance and ensures fragment retention, making it suitable for areas requiring higher safety performance.
• 1.52mm PVB Interlayer: The upgraded 1.52mm PVB interlayer provides improved fragment retention, higher impact resistance, and stronger adhesion between glass layers, enhancing overall safety and structural integrity.
• 12A Cavity: The consistent use of a 12A cavity provides a reliable balance between thermal insulation, condensation resistance, and structural stability across all systems.

The Zhejiang Seng manufacturing base stands as a testament to Reach Building's capability in delivering integrated multi-system glazing solutions for large-scale national high-tech enterprise campuses. By deploying four precision-engineered glass configurations across 18,000 sqm, the project achieves a seamless blend of:

• Structural Performance: A multi-thickness glass strategy ensures adaptability to different facade conditions, enhancing overall durability and facade stability.
• Thermal Efficiency: Low-E insulated glass systems reduce solar heat gain and improve indoor thermal performance across both office and production areas.
• Safety Integration: Laminated insulated glass enhances impact resistance and safety in critical zones, supporting long-term operational reliability.
