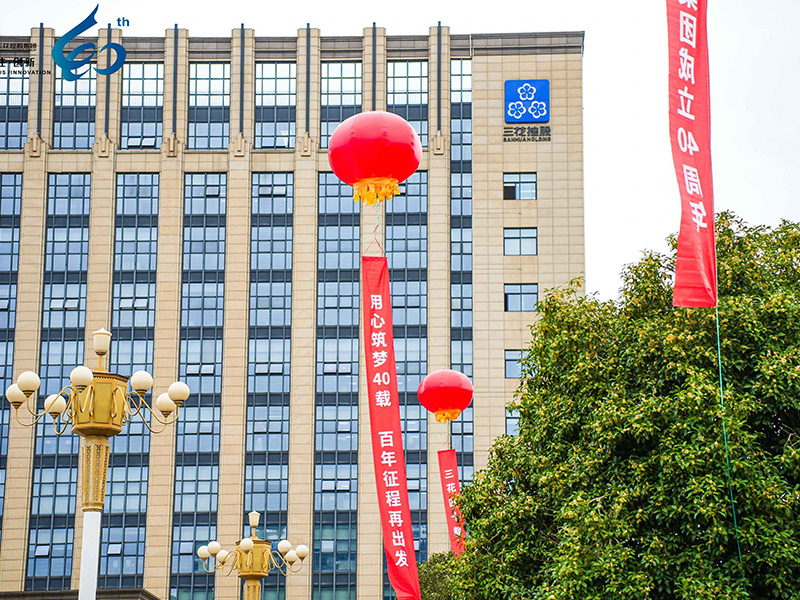

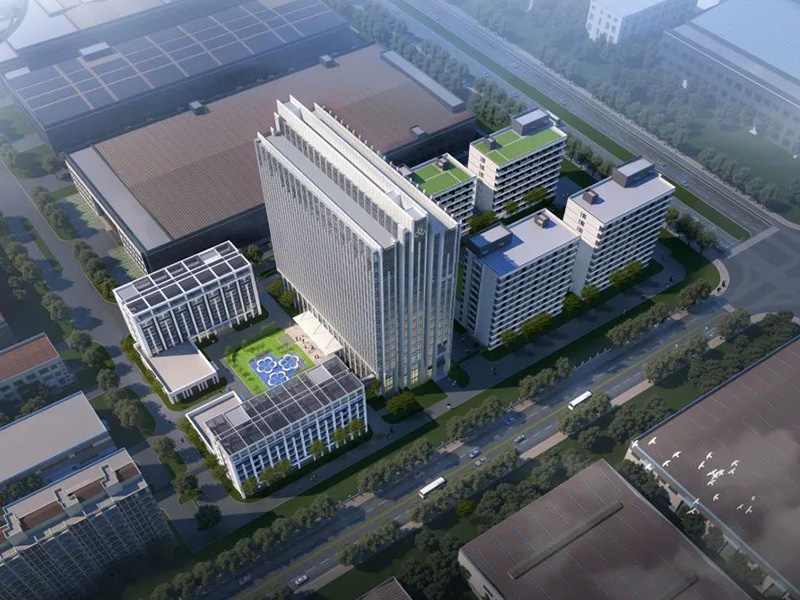

SanHua Holding Group Binhai Industrial Park, located in Shaoxing Binhai New Area, is a key production base for new energy vehicle components. The project, featuring 12,000 square meters of curtain wall glass, was completed in 2024. To meet the precision and efficiency requirements of a modern smart factory, the project deploys high-performance tempered insulated glass systems. The glazing solution ensures balanced performance in daylighting, thermal insulation, and structural reliability across different functional areas of the facility.

The facade glazing strategy for Sanhua Holding Group Binhai Industrial Park deploys two Low-E insulated glass systems, each calibrated to meet the thermal and structural demands of a large-scale industrial and office complex built to Industry 4.0 standards:

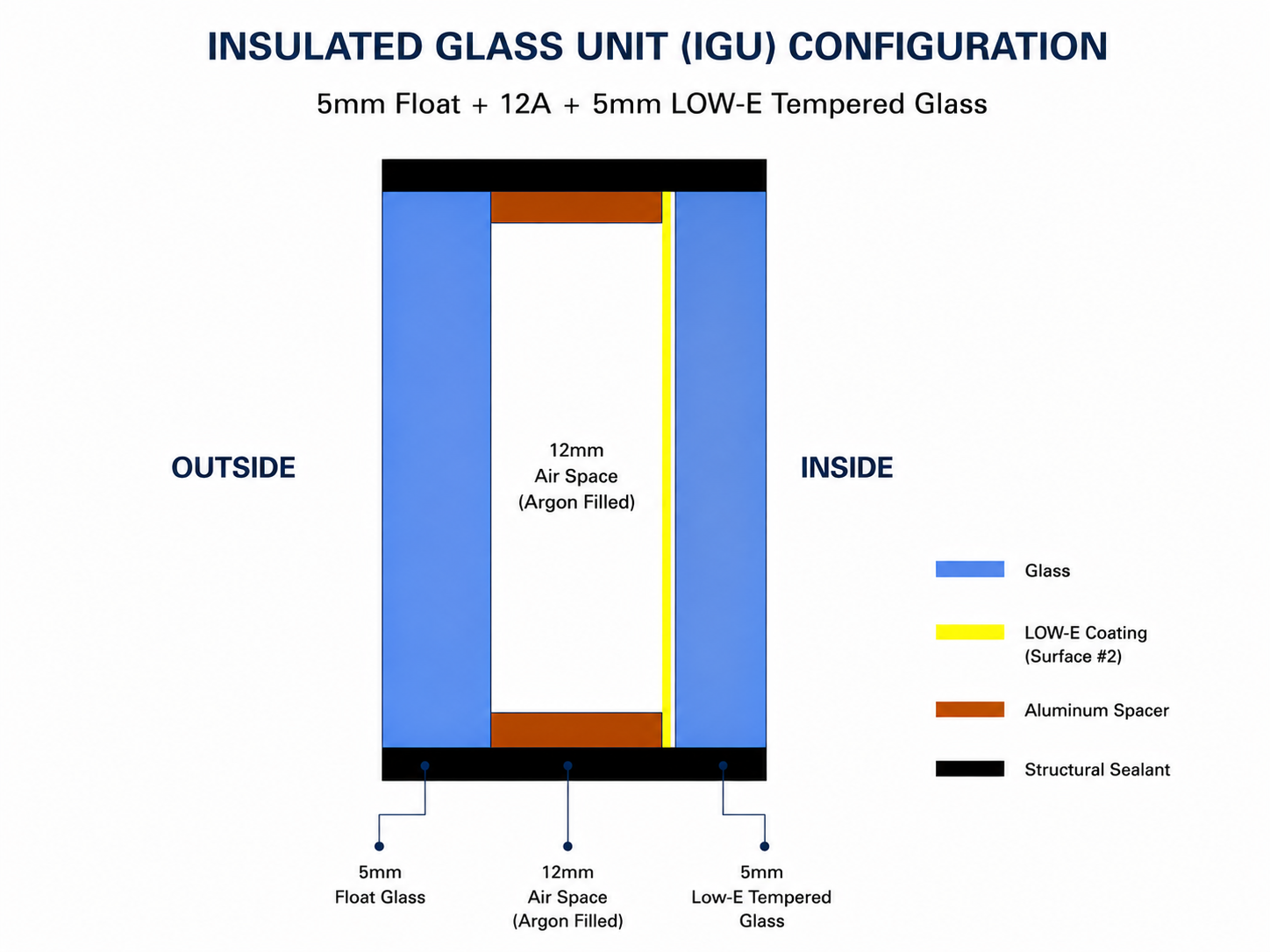

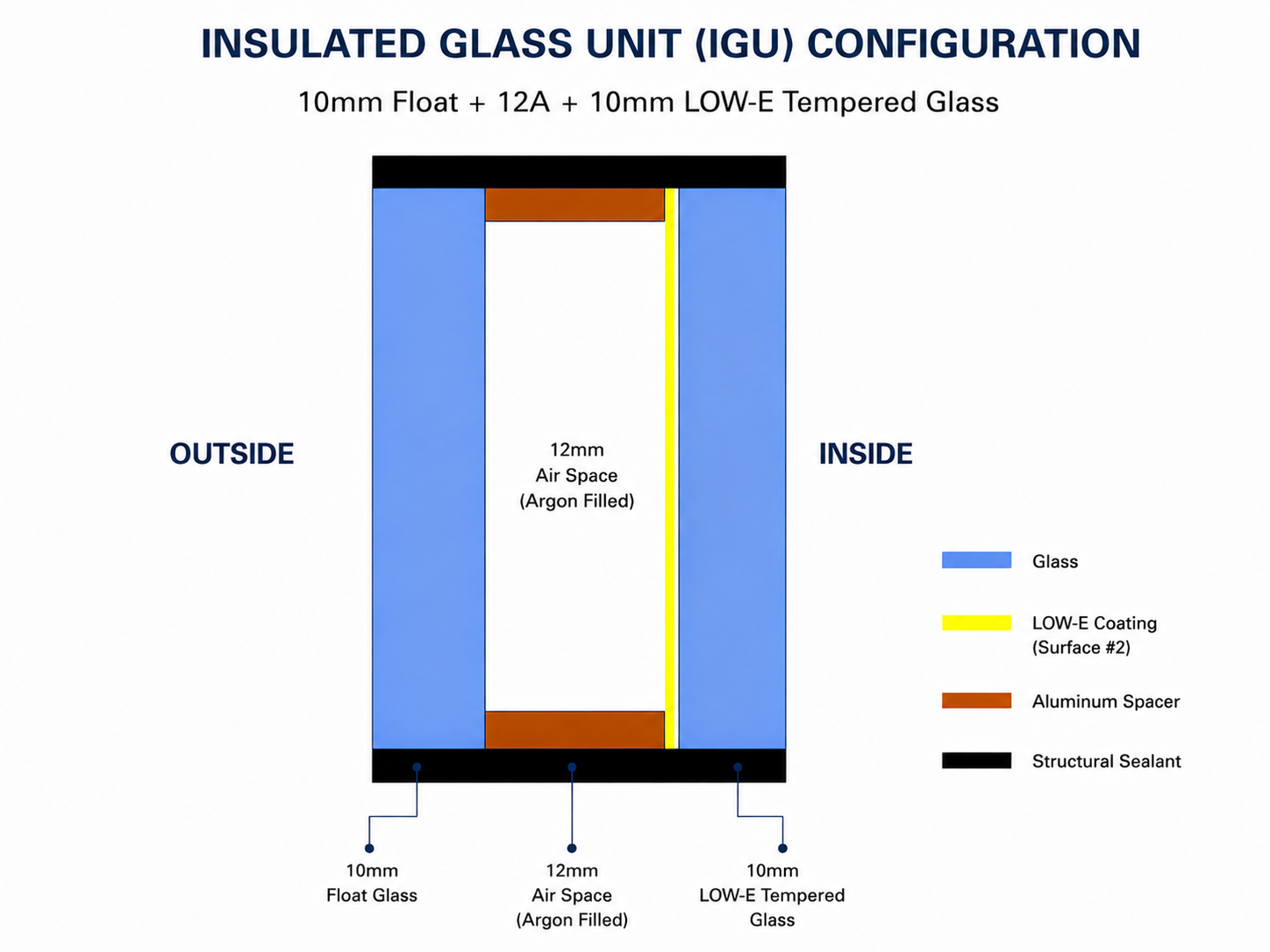

• Configuration: 5mm Float + 12A + 5mm Low-E Tempered Insulated Glass & 10mm Float + 12A + 10mm Low-E Tempered Insulated Glass.
• Dual Low-E Systems for Layered Performance: Both glass configurations feature a Low-E coating that minimizes infrared radiation and solar heat gain, reducing cooling loads across the facility and supporting long-term energy efficiency in a high-output manufacturing environment.
• Insulated Glass for Thermal Control: The sealed insulated unit construction in both systems creates an effective thermal barrier between interior and exterior environments, maintaining stable indoor temperatures critical for precision manufacturing processes.
• 12A Cavity for Insulation and Stability: The 12A cavity achieves the optimal balance between thermal insulation and structural stability, minimizing convective heat transfer while contributing to acoustic attenuation and condensation resistance, essential performance factors for a smart factory operating year-round.
• Thickness Differentiation: The 5mm configuration provides lightweight thermal efficiency suited to standard facade zones, while the 10mm configuration delivers enhanced structural strength and durability for larger or more exposed curtain wall areas.

The Sanhua Holding Group Binhai Industrial Park stands as a testament to Reach Building's capability in delivering high-performance glazing solutions for large-scale industrial and corporate developments. By deploying dual Low-E tempered insulated glass systems across a 12,000 sqm smart manufacturing complex, the project achieves a seamless blend of:

• Structural Integrity: The 10mm tempered configuration delivers the facade strength and long-term durability demanded by a high-output industrial facility operating to Industry 4.0 standards.
• Thermal Efficiency: The Low-E coating across both glass systems minimizes infrared radiation and solar heat gain, reducing cooling loads and supporting stable indoor temperatures critical for precision manufacturing environments.
• Sustainable Design: The high-performance Low-E insulated glass specification contributes to long-term energy savings and carbon footprint reduction.
