More Possibilities from SpectraVeil Smart Glass

SpectraVeil Smart Glass is REACH BUILDING’s PDLC smart glass solution for switchable privacy, designed for both smart laminated glass and retrofit switchable glass film applications. It shifts between clear visibility and softly frosted privacy, helping glass partitions, doors, windows, meeting rooms, hotel spaces, healthcare areas, retail displays, and automotive smart glass applications stay open, bright, private, and visually flexible.

SpectraVeil responds quickly to different space needs, switching between clear and frosted states for open use, meetings, rest, display, or private conversations through simple smart control.

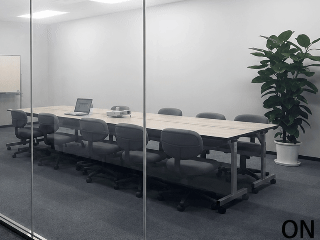

When powered on, SpectraVeil keeps the glass clear, allowing natural light, open views, and visual connection to remain.

When powered off, SpectraVeil turns softly frosted, hiding interior details while still allowing natural light to enter. It creates instant privacy without curtains, blinds, or heavy visual barriers.

In frosted mode, the glass can become a clean visual surface for presentations, projection, retail display, or brand visuals, turning glass partitions into more flexible communication surfaces.

SpectraVeil film can support custom sizes, shapes, patterns, or partial frosted effects, allowing privacy glass to become part of the visual design language for doors, windows, partitions, and commercial spaces.

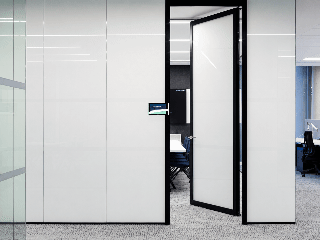

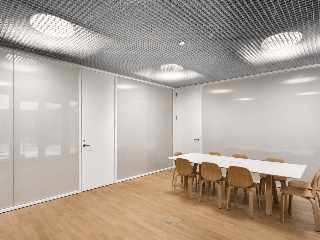

SpectraVeil PDLC Glass on-demand fast switching effect
SpectraVeil PDLC Glass On-Demand Fast Switching

A Smarter Choice: SpectraVeil Smart Glass or Film

Choose SpectraVeil Smart Glass for new laminated glass projects, or SpectraVeil PDLC Switchable Film for retrofit upgrades on existing glass. Built on PDLC smart technology, both options provide instant clear-to-frosted privacy control with a clean architectural finish, making it easier to match smart privacy with different spaces, project stages, and installation methods.

SpectraVeil Smart Glass

SpectraVeil Smart Glass

Ultra Low Haze avg. 2.5%
Operating Range -30°C to 90°C
Fast Switching OFF → ON <45ms
ON → OFF <100ms
Low Energy Use 2W/m²
SpectraVeil PDLC Film

SpectraVeil PDLC Film

Ultra Low Haze avg. 2.5%
Film Options White film / Gray film
Fast Switching OFF → ON <45ms
ON → OFF <100ms
Low Energy Use 2W/m²

White or Gray Film, Matched to Your Space

REACH BUILDING SpectraVeil PDLC Film is available in white and gray, giving projects more flexibility in both privacy performance and visual style. White film creates a bright, clean frosted effect, while gray film adds a calmer, more refined tone for spaces that need a darker glass appearance. Gray PDLC film also offers a stronger shading impression and a higher sense of visual privacy, making it a good choice for spaces that need a more subdued glass effect.

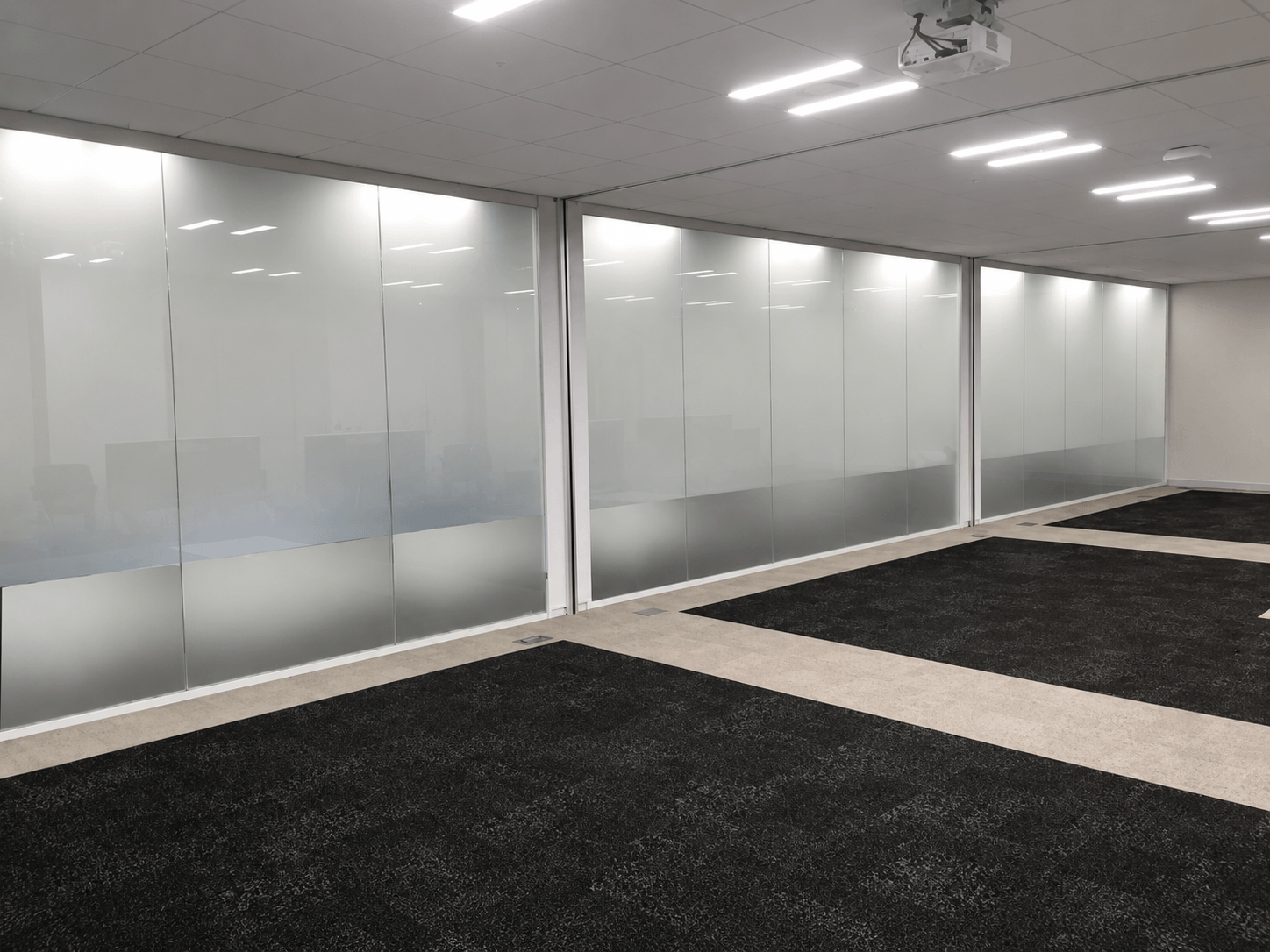

PDLC film opaque state when powered off
▸ SpectraVeil PDLC Film (White style)

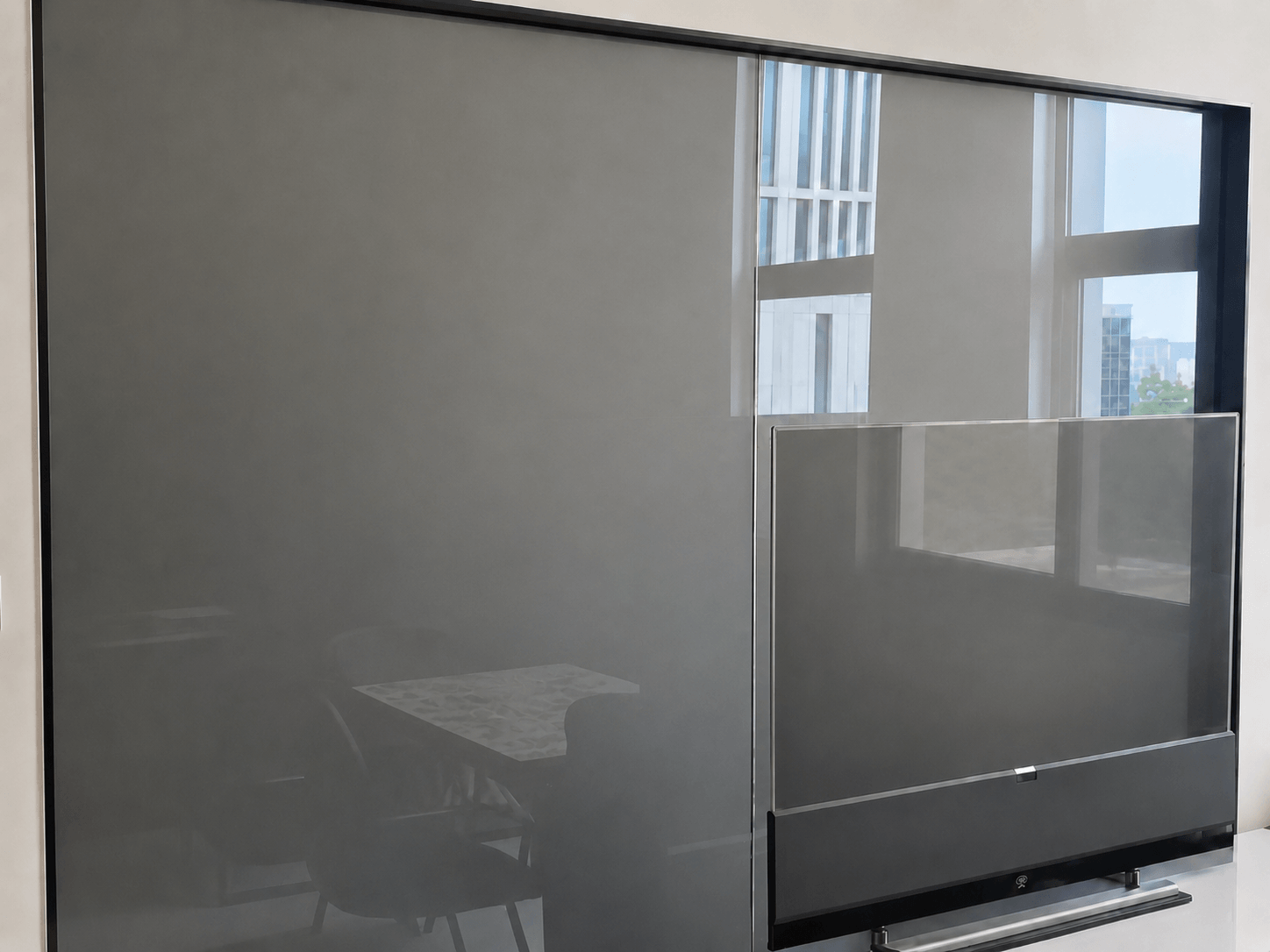

Gray PDLC film opaque state when powered off
▸ SpectraVeil PDLC Film (Gray style)

View technical parameters of SpectraVeil PDLC Film

Item Mode Reach Building PDLC Technology
Visible Light Transmittance ON At least 85%
OFF Over 65%
Haze ON Less than 3%
OFF Over 99%
Working Voltage ON 48V
Response Time OFF to ON Less than 45ms
ON to OFF Less than 100ms
Operating Temperature / -30 deg C to 90 deg C
Service Life / Over 100,000 hours
Power Consumption / 2W/m²
Switching Cycles / Over 3,000,000 times
UV Blocking Rate ON 68.9%
OFF 99.5%
Item Mode Reach Building PDLC Technology
Visible Light Transmittance ON 38%
OFF 32%
Haze ON Less than 2.5%
OFF Over 99%
Working Voltage ON 48V
Response Time OFF to ON Less than 45ms
ON to OFF Less than 100ms
Operating Temperature / -30 deg C to 90 deg C
Service Life / Over 100,000 hours
Power Consumption / 2W/m²
Switching Cycles / Over 3,000,000 times
UV Blocking Rate ON 81.6%
OFF 99.9%

Smart, Simple Control for SpectraVeil

SpectraVeil Smart Glass and PDLC Switchable Film can be operated through a simple ON/OFF controller. With a single press, the glass switches between clear and opaque states. REACH BUILDING configures the appropriate control system and wiring plan for single panels, grouped zones, and larger installations.
SpectraVeil PDLC smart glass controller
Glass state Clear
01 On / Off Privacy Control

Switch the SpectraVeil smart glass between clear and frosted states for immediate privacy control.

02 Flexible Glass and Channel Configuration

Configurable for different glass sizes, load areas, and channel output requirements.

03 Compact and Easy to Install

The compact form factor supports discreet placement, simplified wiring, and efficient installation.

04 Large Drive Capacity

Designed to support larger PDLC glass loads when matched with the appropriate controller rating.

Where SpectraVeil Smart Glass Works Best

SpectraVeil Smart Glass brings clear-to-frosted privacy control to hotels, offices, healthcare, banking, projection display, and automotive glass applications. It keeps glass open and bright when visibility is needed, then switches to a softly frosted surface for privacy, presentation, or visual comfort — without adding curtains, blinds, or heavy partitions.

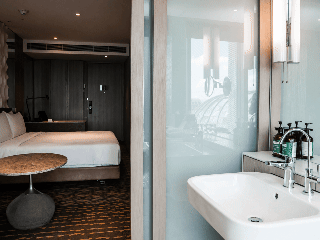

SpectraVeil PDLC glass for hotel bathrooms and suites
Application Focus

Hotel Bathrooms & Suites

Bring a cleaner, more modern privacy experience to hotel bathrooms, suites, showers, and spa spaces. The glass stays open when desired and turns softly frosted when privacy is needed.

Explore Selected SpectraVeil Projects

See how SpectraVeil Smart Glass and switchable film bring instant privacy, seamless integration, and responsive control to residential bathrooms, glass entrances, and modern office environments, while preserving natural light, visual openness, and a refined architectural finish.

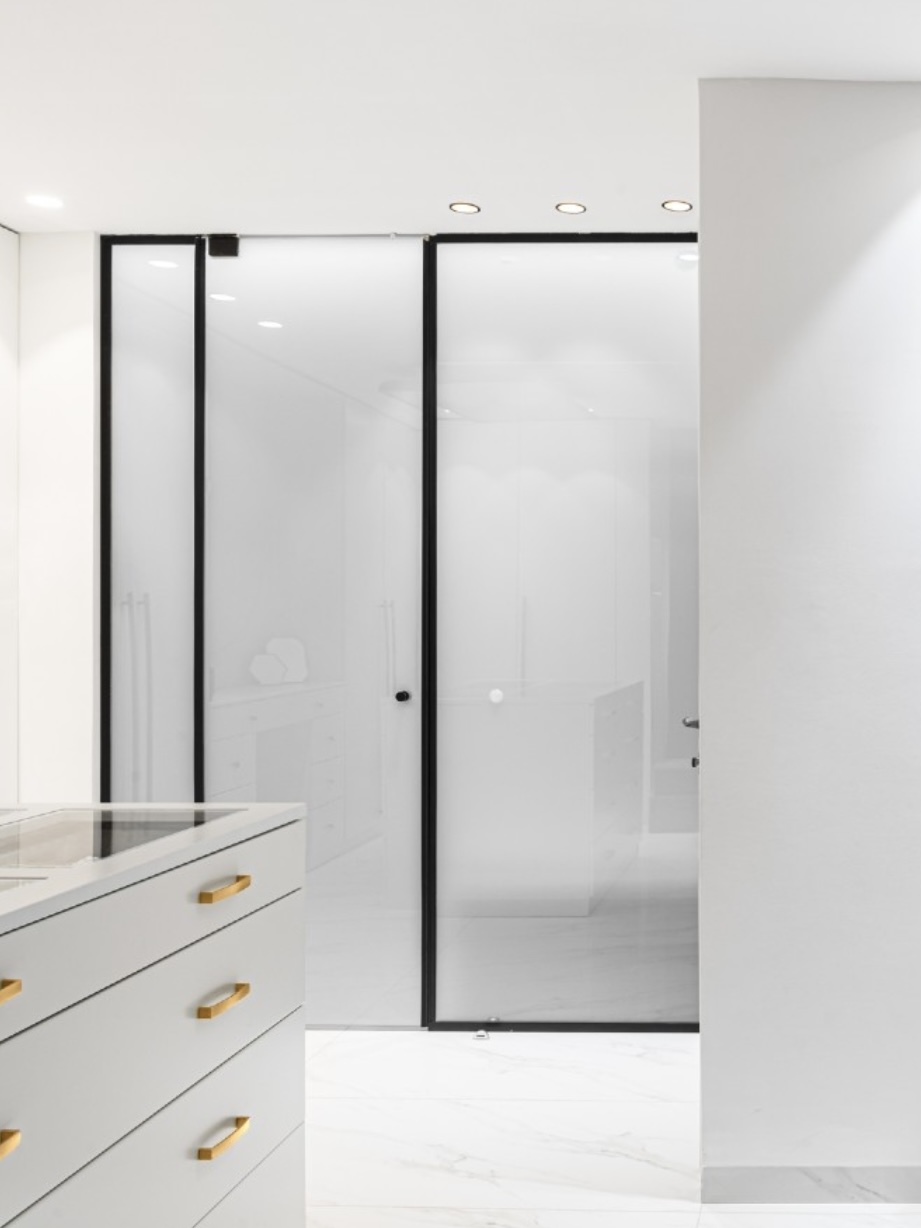

SpectraVeil Smart Glass residential bathroom project

Residential Bathroom Project

SpectraVeil Smart Glass creates on-demand privacy for interior bathroom spaces while keeping the room bright, clean, and modern.

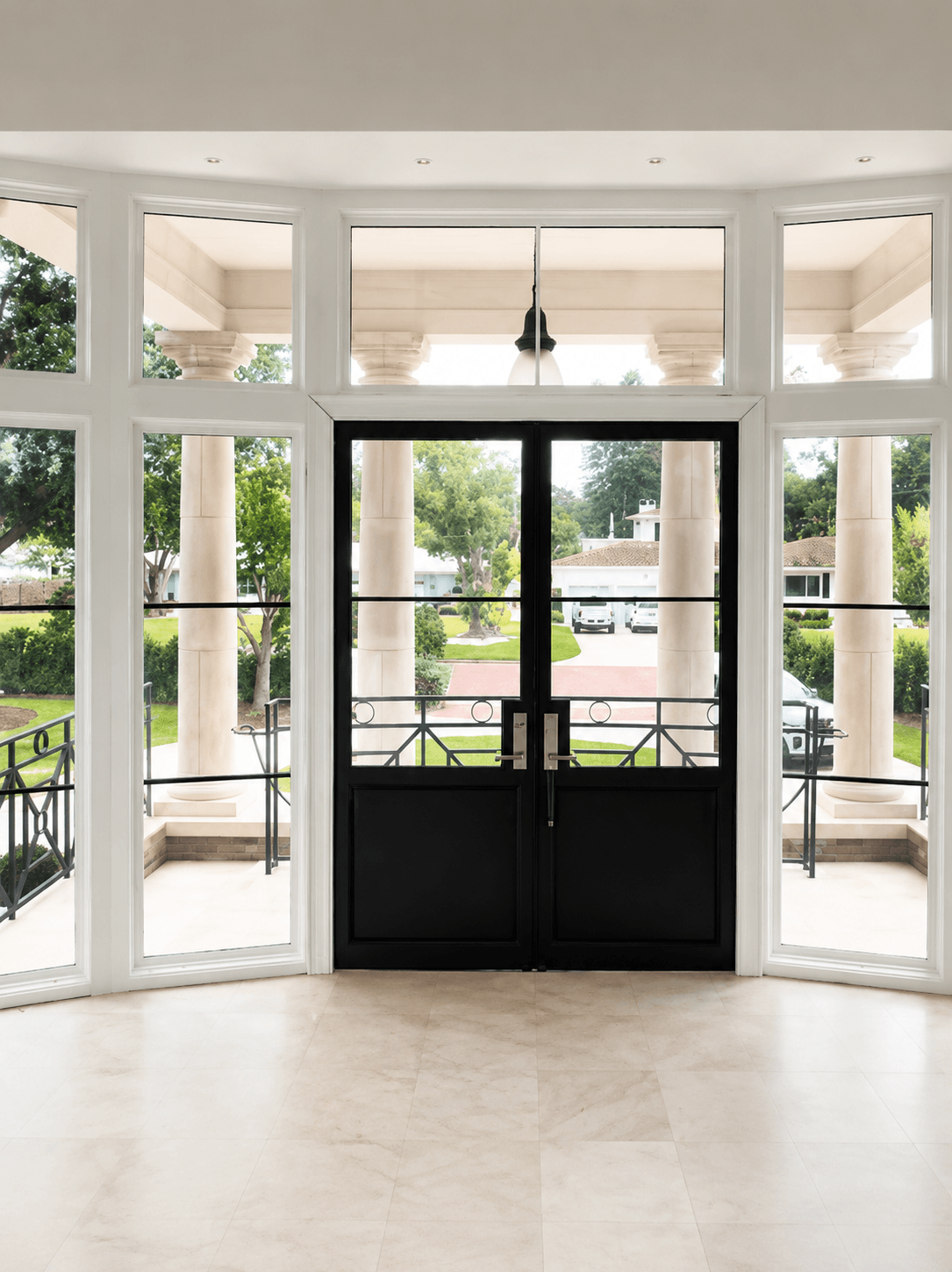

SpectraVeil smart film retrofit for residential glass entrance

Residential Entrance Retrofit

A smart film installation transforms the existing glass entrance into a modern privacy solution without replacing the original glazing.

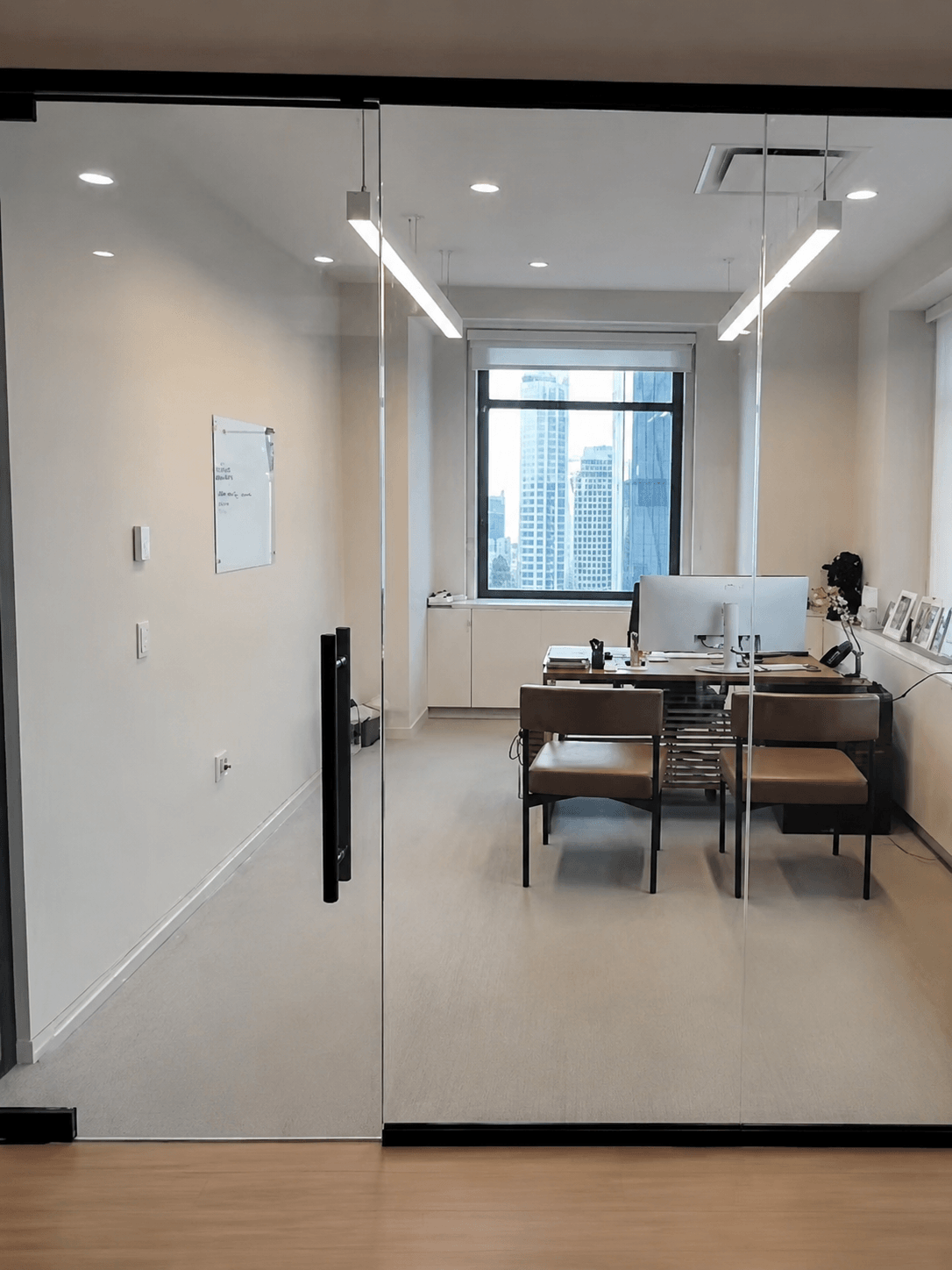

SpectraVeil Smart Glass office project

Office Smart Glass Project

SpectraVeil Smart Glass helps create flexible office spaces with switchable privacy for meeting rooms, partitions, and daily work areas.
