SpectraNyx Glass – REACH BUILDING's new generation smart dimmable glass solution

SpectraNyx Glass is an SPD-based glass solution, allowing glass to shift smoothly from clear to tinted

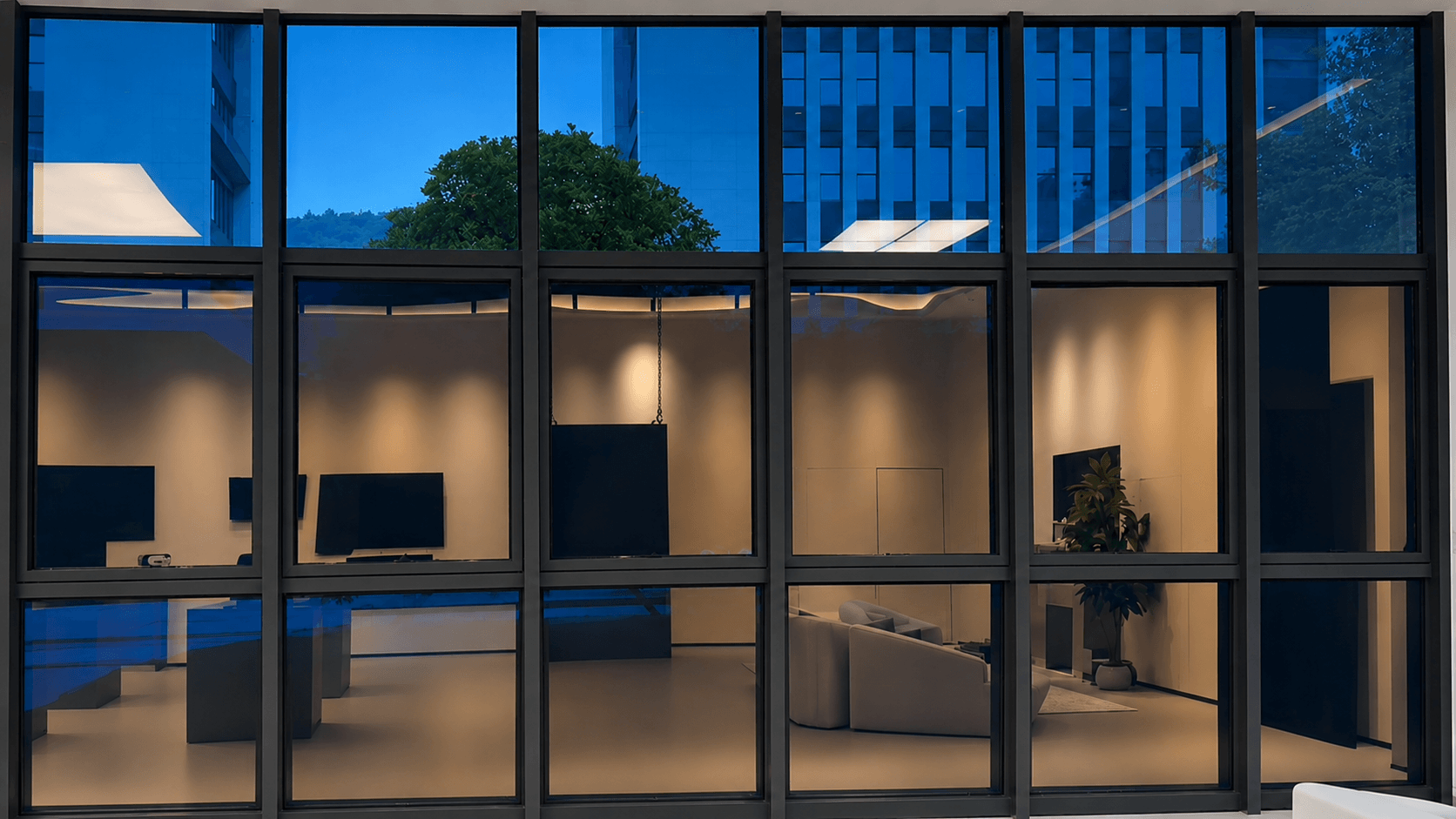

SpectraNyx Glass – Smart Dimmable Glass for Sunlight Control, Facades & High-End Spaces

SpectraNyx Glass is REACH BUILDING’s new-generation smart dimmable glass solution for facades, equipment glass, skylights, high-end architectural spaces

and so on. It supports stepless tint adjustment and fast response, allowing glass to shift smoothly from clear to tinted. By controlling sunlight, glare, heat, UV, and infrared radiation, it helps improve indoor comfort, protect interiors, and maintain a clean modern architectural appearance. Use the quick navigation below to find the SpectraNyx Glass information that matches your project needs.

Technical Principles

Technical Principles Product Options Complete Service Product Advantages Application Scenarios

What Is SpectraNyx Glass?

SpectraNyx Glass is an SPD-based smart dimmable glass solution designed for solar shading and light control. Unlike ordinary glass or privacy frosted glass, it provides continuously adjustable tint while maintaining visibility. SpectraNyx Glass can be supplied as finished laminated smart glass or as a retrofit film solution.

Clear Mode

More Daylight

Soft Tint

Balanced Light

Dark Tint

Strong Shading

▸ This Reach Building video is at original speed.

Quick Understanding

SpectraNyx Glass at a Glance

Stepless Dimming Ultra-Fast Response Indoor & Outdoor Use Panel Splicing Available

0 m

Maximum Width

Supports wider smart glass design possibilities for architectural and project-based applications.

0 Years

Warranty Support

Designed for reliable project use with long-term product and technical support.

0 + Years

Service Life

Built for long-term smart glass operation in commercial and architectural projects.

0 °C+

Operating Temperature

Suitable for demanding environments where heat resistance and stable performance matter.

From Fixed Transparency to Continuous Smart Tint Control

Compare fixed transparency, privacy switching, and continuous tint control across Reach Building glass solutions.

01

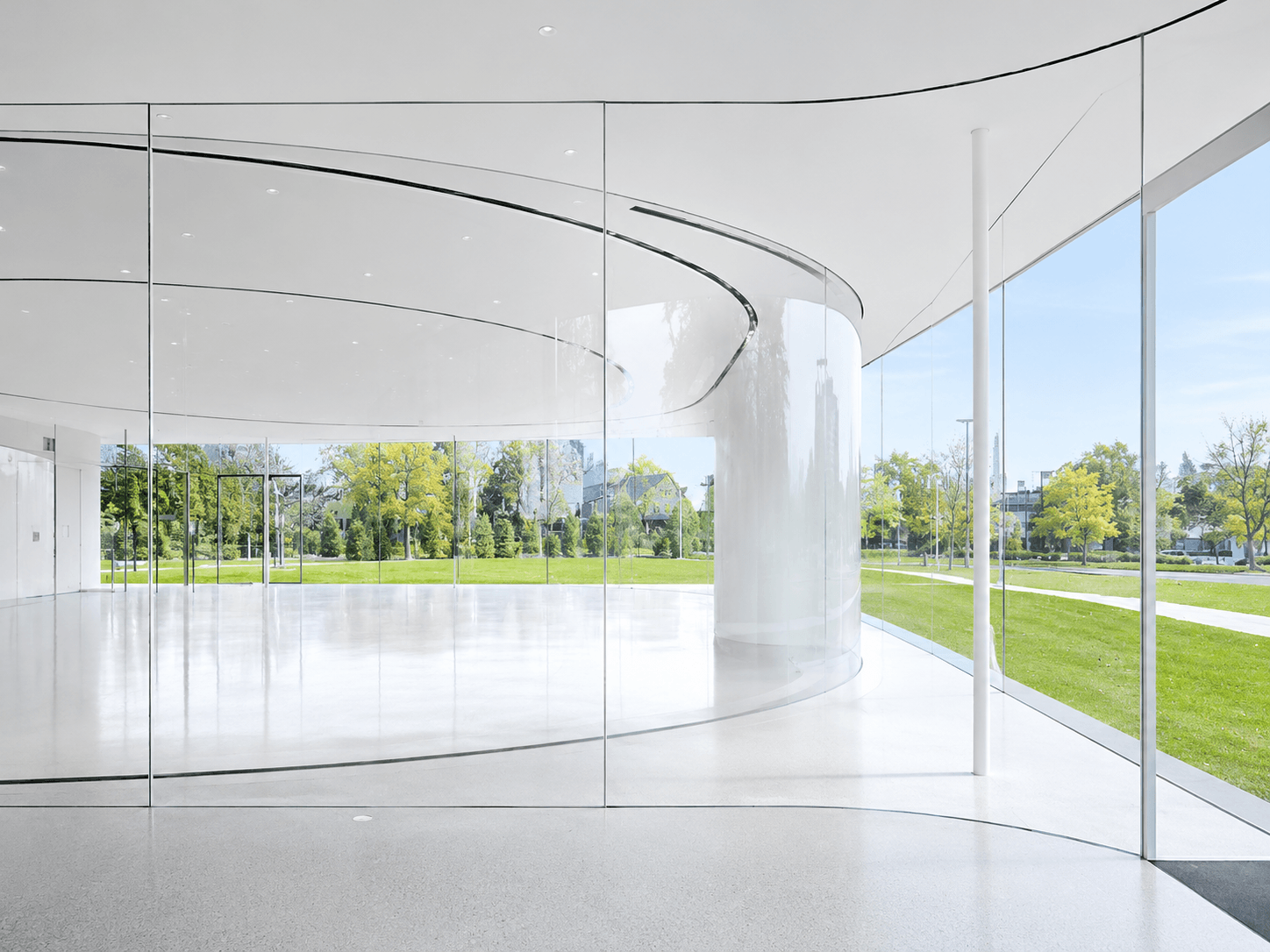

Traditional Glass

Fixed Transparency

Provides a fixed level of transparency with no active light or privacy adjustment.

02

SpectraVeil PDLC Glass

Clear / Frosted Privacy Switching

Switches between transparent and frosted states for instant privacy control.

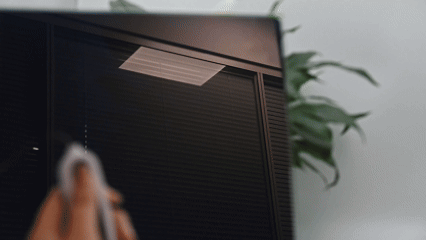

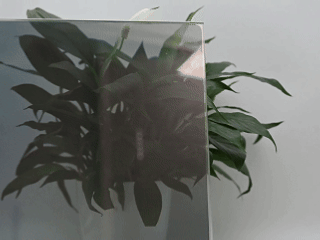

SpectraNyx SPD Glass

Continuous Tint Control with View Retention

Adjusts light transmission continuously while maintaining outside visibility.

How SpectraNyx Glass Works?

SpectraNyx Glass uses a smart dimming layer composed of polarized particles and polymer material. Under an electrical field, the particles adjust their alignment quickly, allowing the glass to change its light transmission continuously from clear to tinted.

Not Just ON / OFF

More than simple clear-or-dark switching.

Stepless Tint Control

Continuously adjusts light transmission for comfort, glare control, and shading.

SpectraNyx Glass can adjust its tint level based on sunlight, usage scenarios, and user needs.

It can be connected to controllers, sensors, smart home systems, or building control systems.

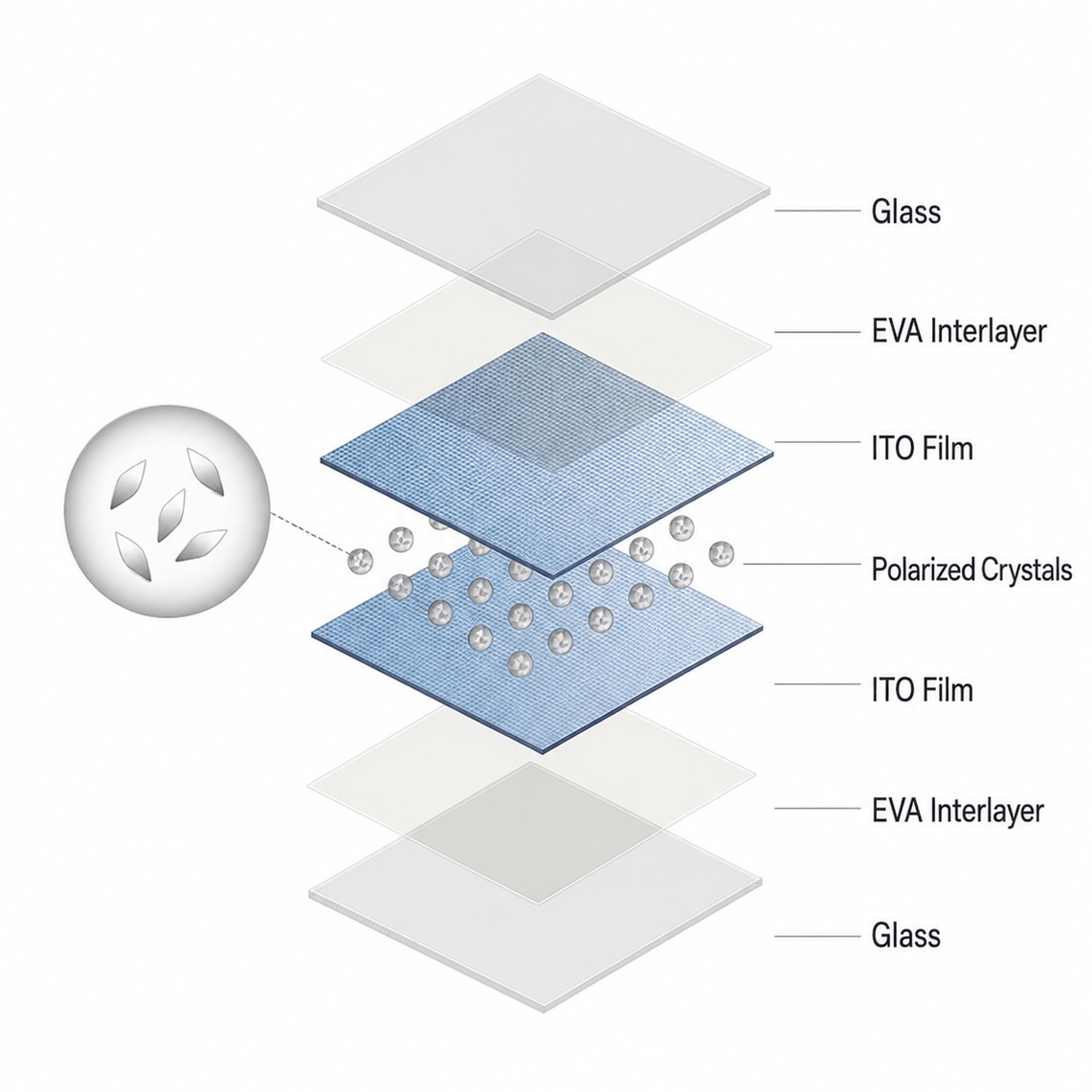

Power-off State Click to enlarge

No Control Signal

SPD particles stay randomly distributed, reducing visible light transmission.

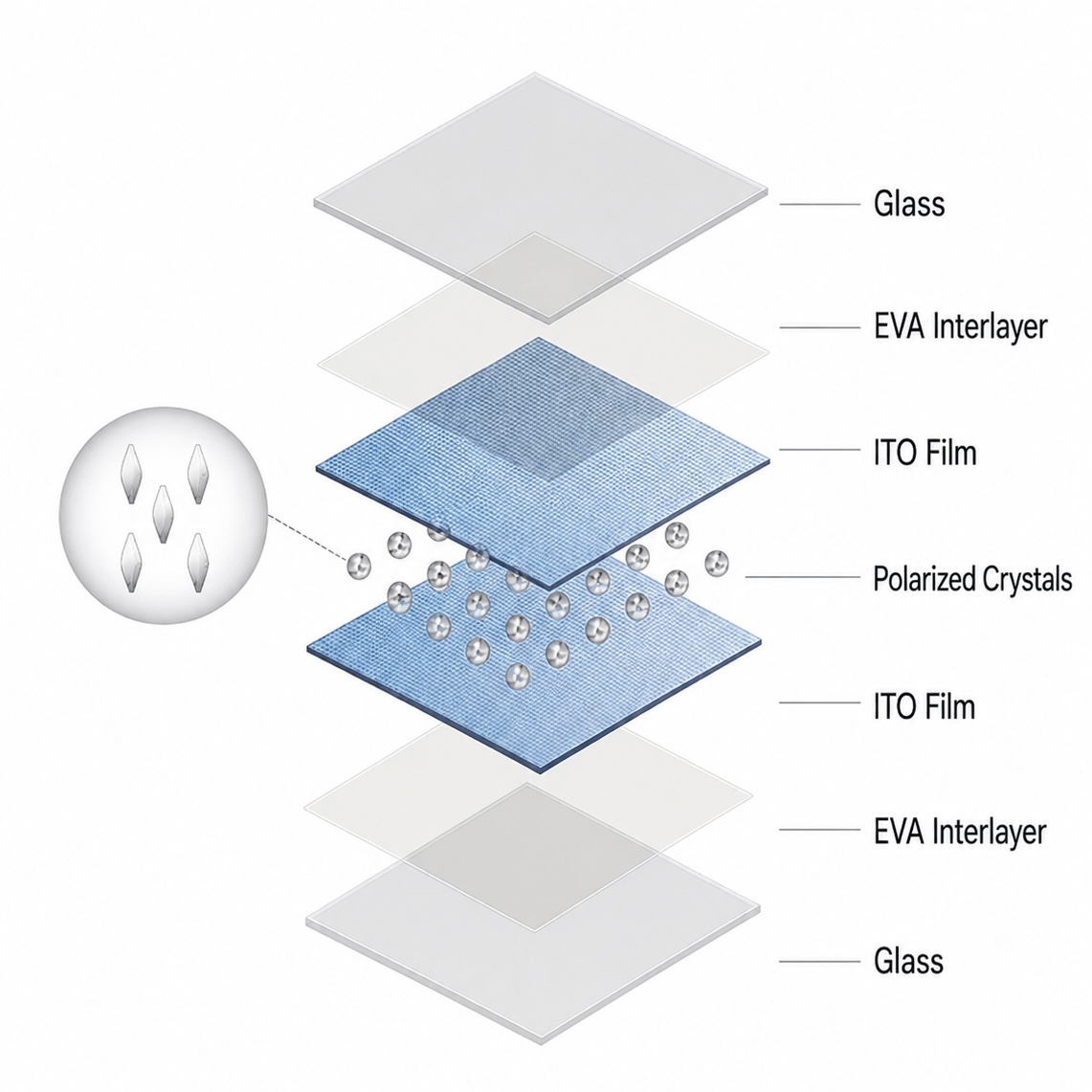

Power-on State Click to enlarge

Control Signal Applied

SPD particles align quickly, allowing smooth tint adjustment.

Quick Understanding

Power / Control Signal

SPD Particles Adjust Their Alignment

Glass Tint Changes Continuously

Light, Glare, Heat, UV and IR Are Controlled

Technical Highlight

SpectraNyx Glass: Intelligent Adaptive Dimming

A smart dimming glass that responds to changing ambient light. It darkens under strong sunlight and returns clearer when daylight softens.

Strong Sunlight

Automatically darkens to reduce glare and help lower solar heat.

Soft Light

Returns to a clearer state for better visibility and natural daylight.

Smart Glass Product Options

Reach Building offers different smart glass solutions for retrofit, new construction, and privacy-focused applications. SpectraNyx SPD Film upgrades existing glass with smart tint control. SpectraNyx Glass integrates smart dimming film into laminated glass for new architectural projects. SpectraVeil PDLC Film can switch between transparent and opaque states.

Explore SpectraNyx SPD Film

Explore SpectraNyx SPD Film Explore SpectraNyx Smart Glass Explore SpectraVeil PDLC Film

SpectraNyx SPD Film

SpectraNyx SPD Film is designed for upgrading existing glass without replacing the full glass panel.

Key Benefits

Retrofit Friendly

Can be applied to existing glass for smart tint upgrades without full glass replacement.

Stepless Tint Control

Supports smooth adjustment from clearer to darker states for flexible sunlight and glare control.

Consistent Visual Performance

Uniform film layer distribution helps deliver excellent visual consistency across the glass surface.

Suitable for Offices · Hotels · Meeting Rooms · Existing Windows · Retrofit Projects

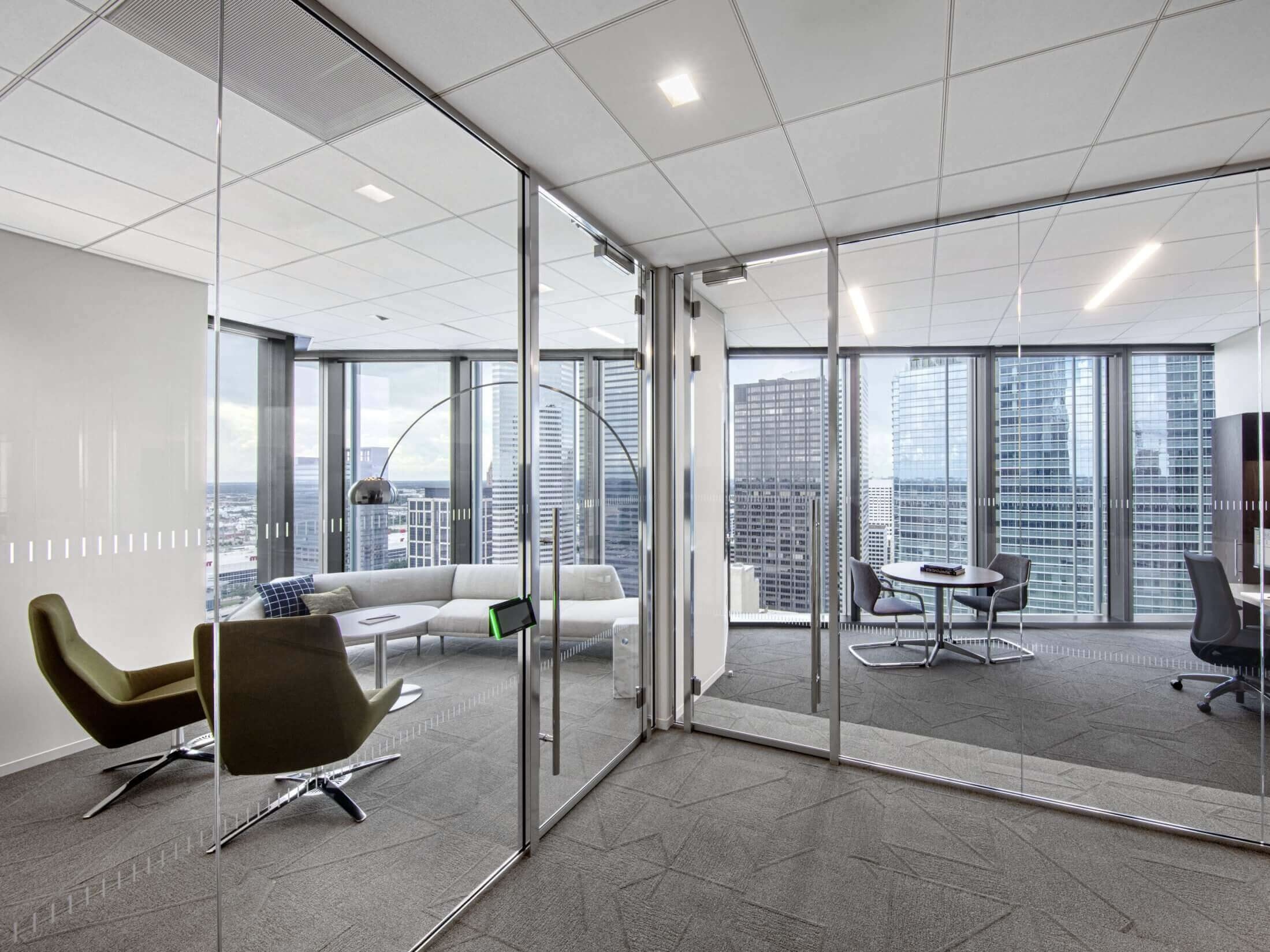

SpectraNyx SPD film for office and interior partitions

SMART TINT FILM

SWITCHING EFFECT The effect of SpectraNyx Glass

View related technical parameters of SpectraNyx SPD Film

Technical Parameters Structure Principle

SpectraNyx SPD Film Product Performance and Technical Parameters

01 Visible Light Transmittance

Item	Mode	Reach Building EPC Technology
Visible Light Transmittance	ON	12% to 35%
Visible Light Transmittance	OFF	0.3% to 0.7%

View More Technical Parameters

Item	Mode	Reach Building EPC Technology
Haze	ON	Less than 5%
Haze	OFF	100%
Working Voltage	ON	110V
Response Time	OFF to ON	2s or less
Response Time	ON to OFF	9s or less
Operating Temperature	/	-30 deg C to 90 deg C
Power Consumption	/	1W/m2 or less
Switching Cycles	/	Over 1,000,000 times
Infrared Blocking Rate	ON	92%
Infrared Blocking Rate	OFF	96%

Structure Principle of SpectraNyx SPD Film

SpectraNyx SPD Film is designed with electrically controlled particles dispersed in a polymer structure. Under an applied electric field, the particle orientation changes, allowing the film to quickly adjust light transmittance for different privacy, shading, and comfort requirements.

SpectraNyx SPD Film Process Flow

Coating Apply SPD dimming slurry onto ITO-PET film

01

Lamination Form a stable composite film structure

02

UV Curing Cure the film through UV cross-linking process

03

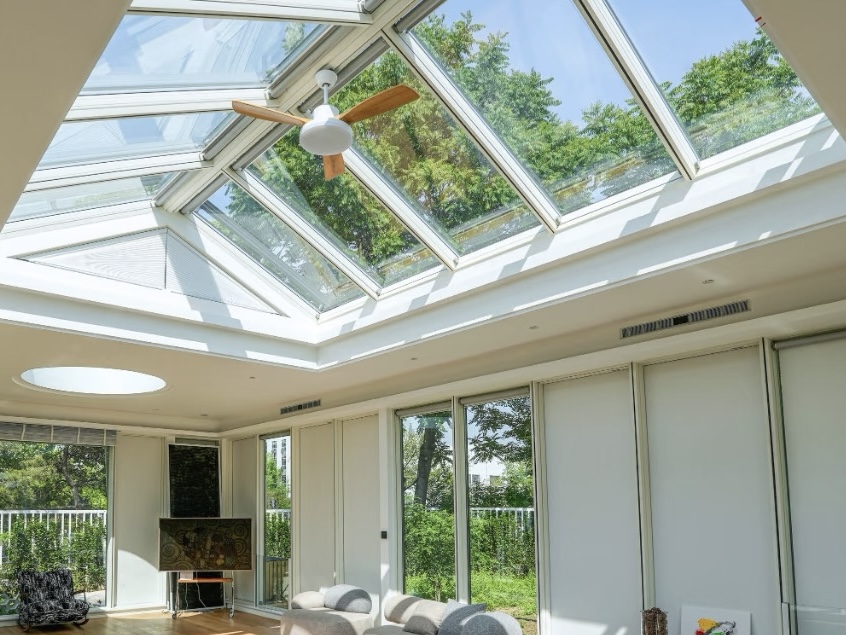

SpectraNyx Smart Glass

SpectraNyx Smart Glass integrates smart dimming film between double-layer glass for controllable light and solar shading.

Key Benefits

High Cost Performance

Optimized process and material system support large-scale applications with better cost efficiency.

Lower Energy Consumption

Works from -40°C to 90°C, with power consumption ≤1W/m² for energy-saving daily use.

Fast Response Speed

Switches between light and dark states in seconds for a smooth visual transition.

Suitable for Facades · Skylights · Offices · Hotels · Villas · Sunrooms · New Glass Projects

SPD SMART GLASS

SWITCHING EFFECT SpectraNyx Smart Glass switching effect

SpectraNyx Glass with Laminated Safety Structure

SpectraNyx Glass is built as a laminated glass solution. Even if broken, glass fragments remain bonded to the interlayer instead of scattering, while also allowing flexible combinations with Reach Building laminated glass, insulated glass, tempered glass, and other architectural glass configurations.

Laminated Glass

Helps hold broken fragments on the interlayer for safer architectural glass applications.

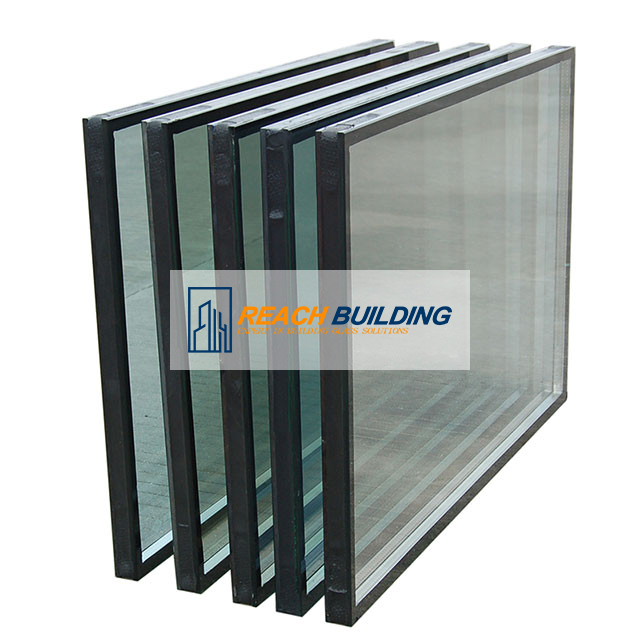

Insulated Glass

Can be combined into insulated glass build-ups for facade, skylight, and energy-focused projects.

Tempered Glass

Supports stronger glass configurations when combined with tempered glass for project needs.

View related technical parameters of SpectraNyx Smart Glass

Technical Parameters Structure Principle

SpectraNyx Smart Glass Product Performance and Technical Parameters

01 Visible Light Transmittance

Item	Mode	Reach Building EPC Technology
Visible Light Transmittance	ON	55% to 65%
Visible Light Transmittance	OFF	1% to 2%

View More Technical Parameters

Item	Mode	Reach Building EPC Technology
Haze	ON	Less than 5%
Haze	OFF	100%
Working Voltage	ON	110V
Response Time	OFF to ON	Up to 2s
Response Time	ON to OFF	Up to 9s
Operating Temperature	/	-30 deg C to 90 deg C
Power Consumption	/	Up to 1W/m2
Switching Cycles	/	Over 1,000,000 times
UV Blocking Rate	ON	99%
UV Blocking Rate	OFF	99.9%

Structure Principle of SpectraNyx Smart Glass

SpectraNyx Smart Glass integrates smart dimming film between double-layer glass through a high-temperature and high-pressure lamination process.

Structure Design Points of SpectraNyx Smart Glass

Film Edge Setback Keep the EPC film edge at least 10mm away from the glass edge.

01

Edge Sealing Stability Helps protect service life and improve long-term edge sealing reliability.

02

Flexible Glass Build-Up Compatible with different glass thicknesses, sizes, and installation methods.

03

SpectraVeil PDLC Film

Reach Building’s PDLC film can be laminated into smart glass and switched between transparent and frosted states for privacy, shading, and interior comfort.

Key Benefits

Instant Privacy Switching

Changes quickly between transparent and frosted states for flexible privacy control.

Lamination-Compatible Solution

Can be processed into laminated smart glass for architectural and automotive applications.

Comfort & Light Management

Helps improve shading, reduce glare, and support more comfortable interior spaces.

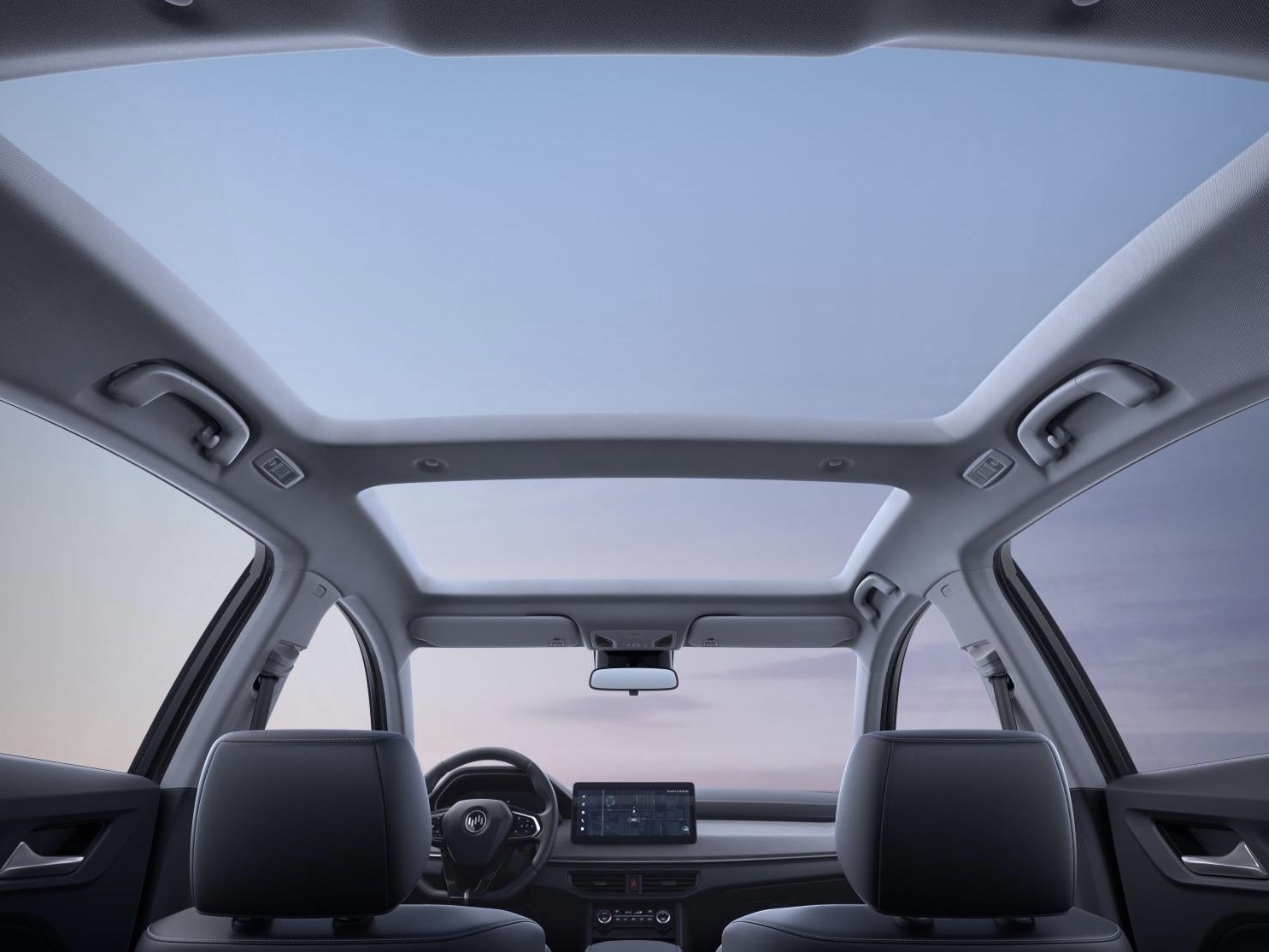

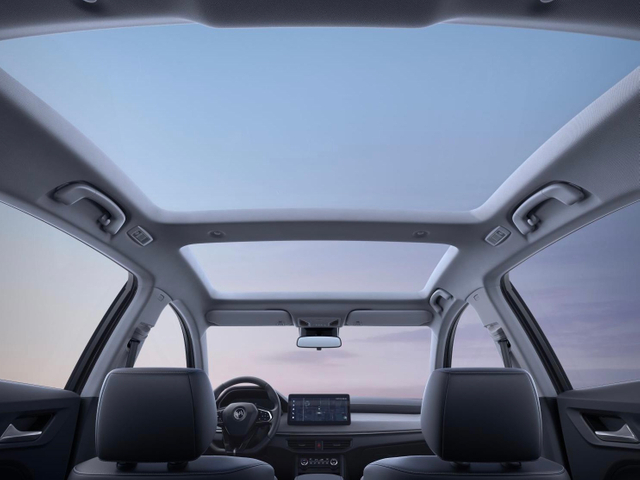

Suitable for Automotive Side Windows · Sunroofs · Meeting Rooms · Banks · Bathrooms

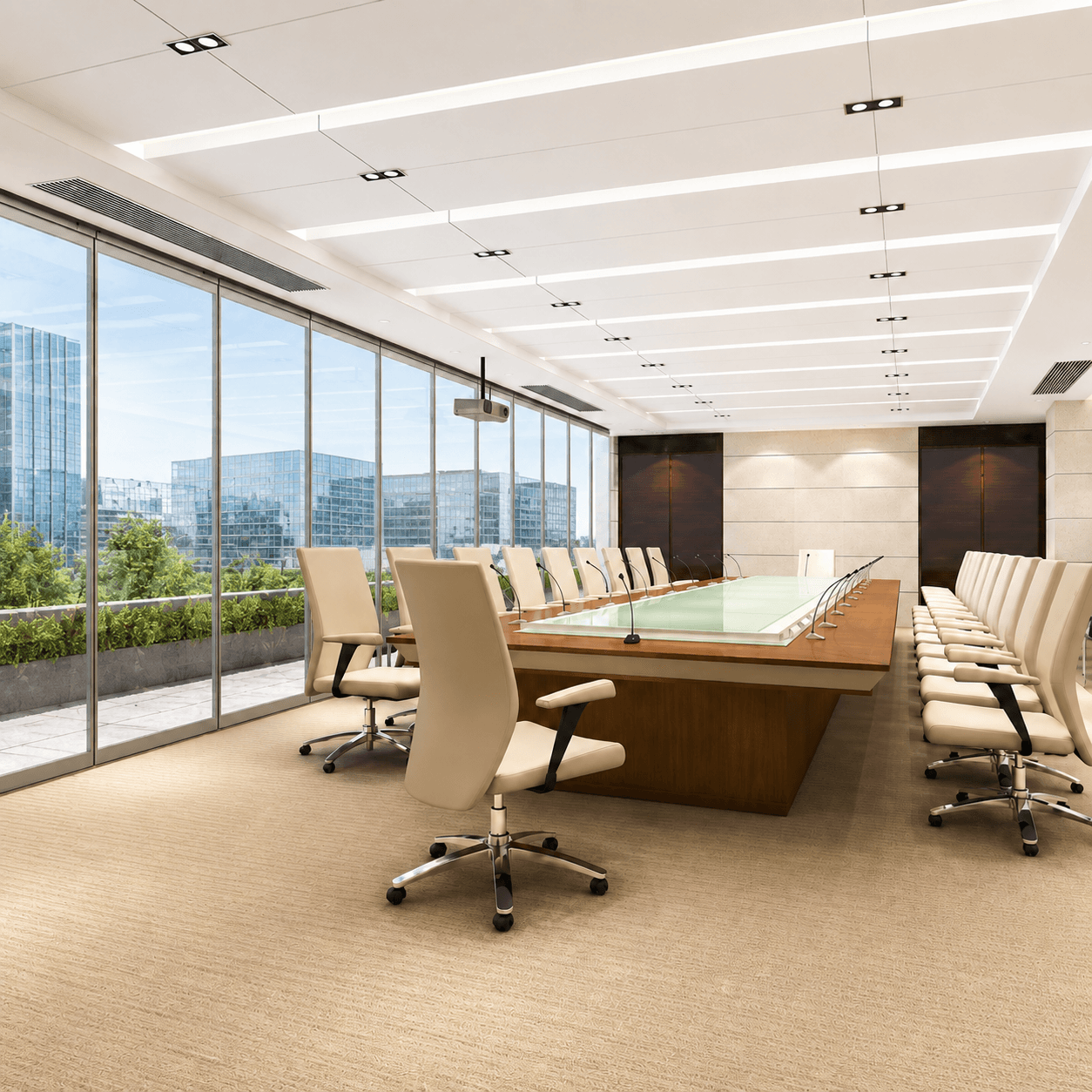

Transparent state of PDLC film when power is on

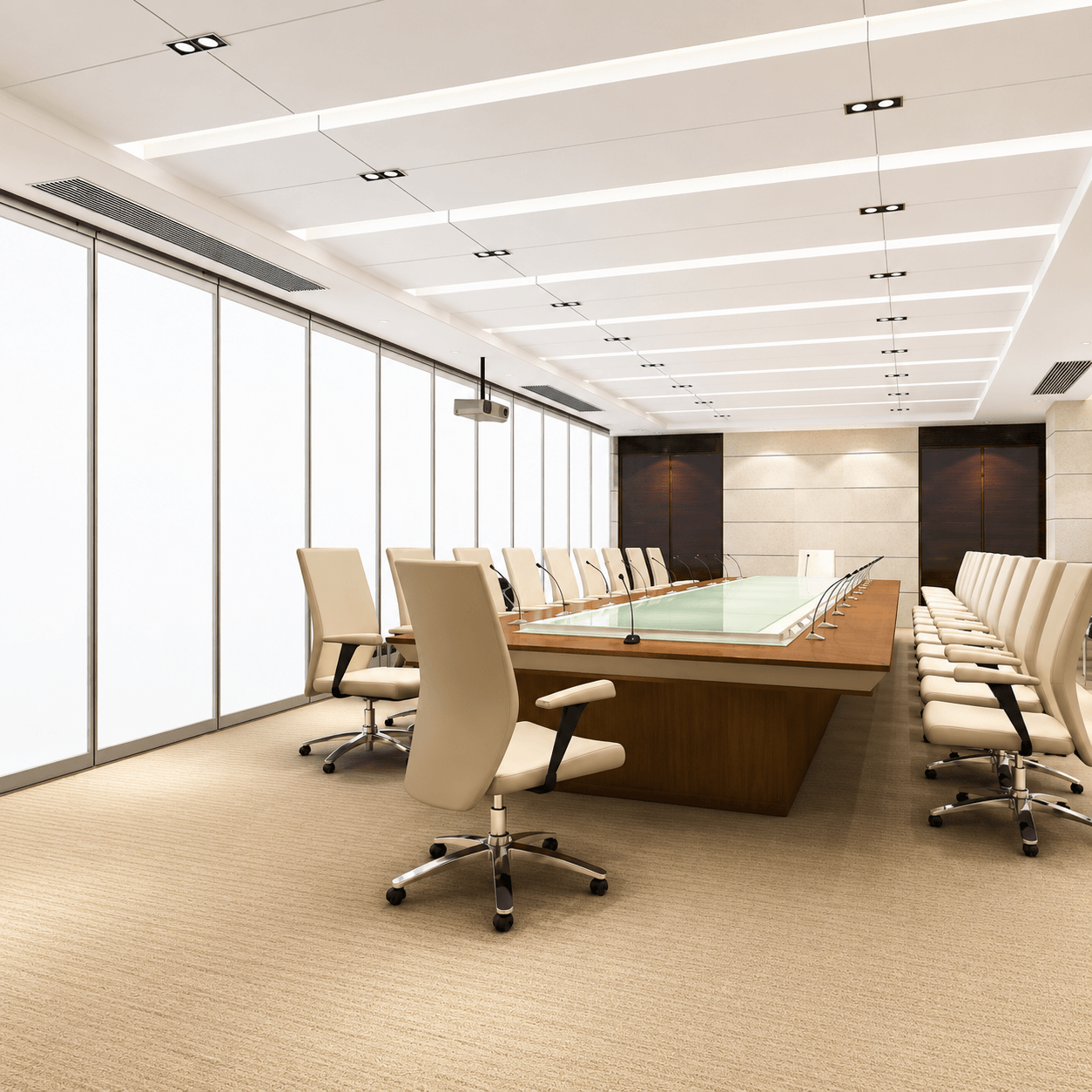

Opaque state of PDLC film when power is off

Left Opaque State When Power Is Off

Right Transparent State When Power Is On

View related technical parameters of SpectraVeil PDLC Film

White PDLC Film Gray PDLC Film

SpectraVeil PDLC Film Product Performance and Technical Parameters

01 White PDLC Film · Visible Light Transmittance

Item	Mode	Reach Building PDLC Technology
Visible Light Transmittance	ON	At least 85%
Visible Light Transmittance	OFF	Over 65%

View More Technical Parameters

Item	Mode	Reach Building PDLC Technology
Haze	ON	Less than 3%
Haze	OFF	Over 99%
Working Voltage	ON	48V
Response Time	OFF to ON	Less than 45ms
Response Time	ON to OFF	Less than 100ms
Operating Temperature	/	-30 deg C to 90 deg C
Service Life	/	Over 100,000 hours
Power Consumption	/	2W/m2
Switching Cycles	/	Over 3,000,000 times
UV Blocking Rate	ON	68.9%
UV Blocking Rate	OFF	99.5%

SpectraVeil PDLC Film Product Performance and Technical Parameters

02 Gray PDLC Film · Visible Light Transmittance

Item	Mode	Reach Building PDLC Technology
Visible Light Transmittance	ON	38%
Visible Light Transmittance	OFF	32%

View More Technical Parameters

Item	Mode	Reach Building PDLC Technology
Haze	ON	Less than 2.5%
Haze	OFF	Over 99%
Working Voltage	ON	48V
Response Time	OFF to ON	Less than 45ms
Response Time	ON to OFF	Less than 100ms
Operating Temperature	/	-30 deg C to 90 deg C
Service Life	/	Over 100,000 hours
Power Consumption	/	2W/m2
Switching Cycles	/	Over 3,000,000 times
UV Blocking Rate	ON	81.6%
UV Blocking Rate	OFF	99.9%

Smart Glass Solutions We Offer

Reach Building provides four smart glass solutions: laminated SPD glass for new projects, retrofit SPD film for installed glass, PDLC film for privacy control, and custom pattern smart glass for branded spaces. Click the arrows below to explore different smart glass solutions.

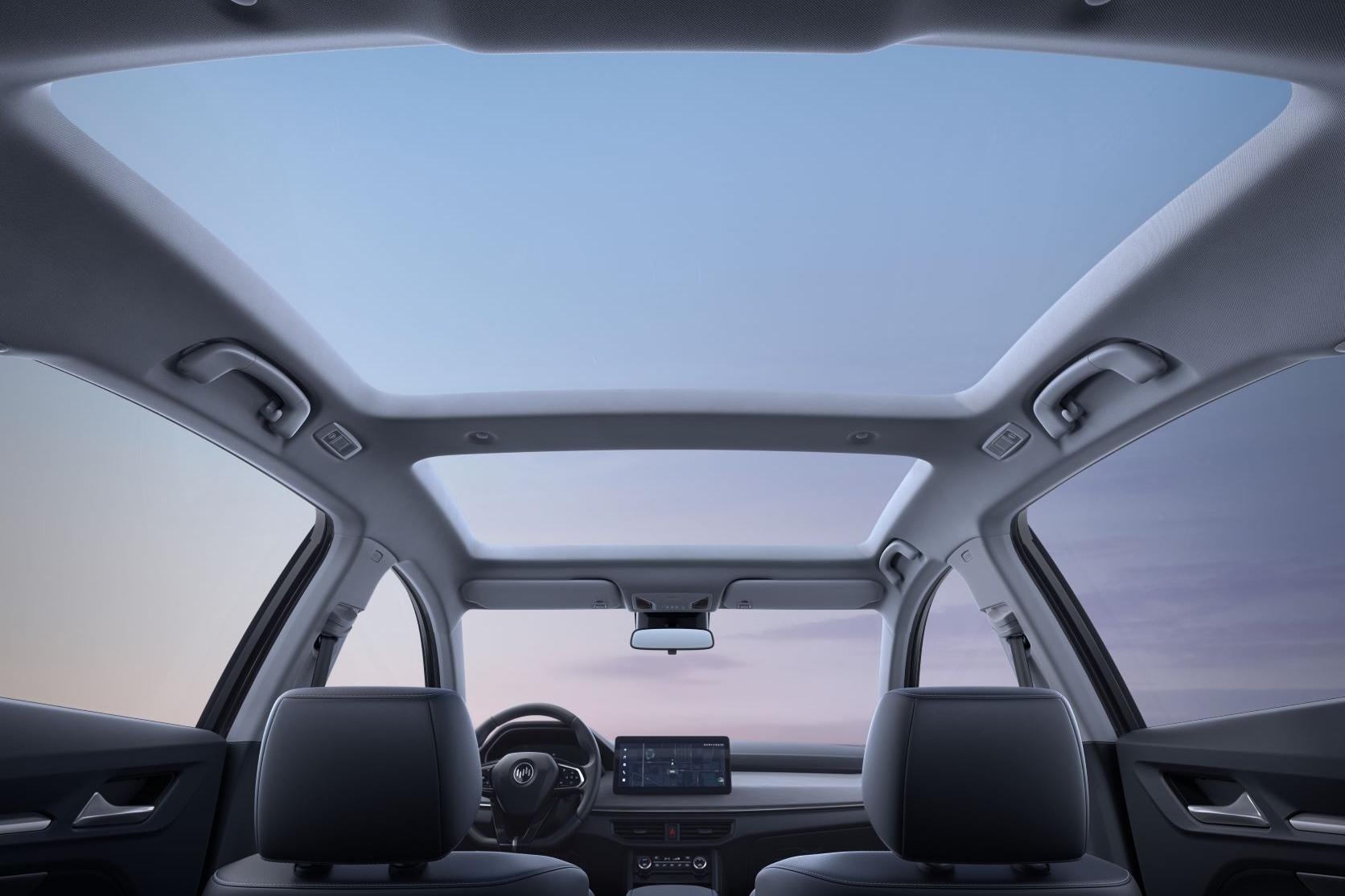

For New Build Projects

SpectraNyx Glass

Best For

New facades, skylights, premium equipment glass, and long-term projects.

Main Advantage

SPD film is laminated inside the glass for better protection, longer service life, and more stable performance.

Compatible with laminated glass, tempered glass, low-iron glass, insulated glass, and other architectural glass configurations.

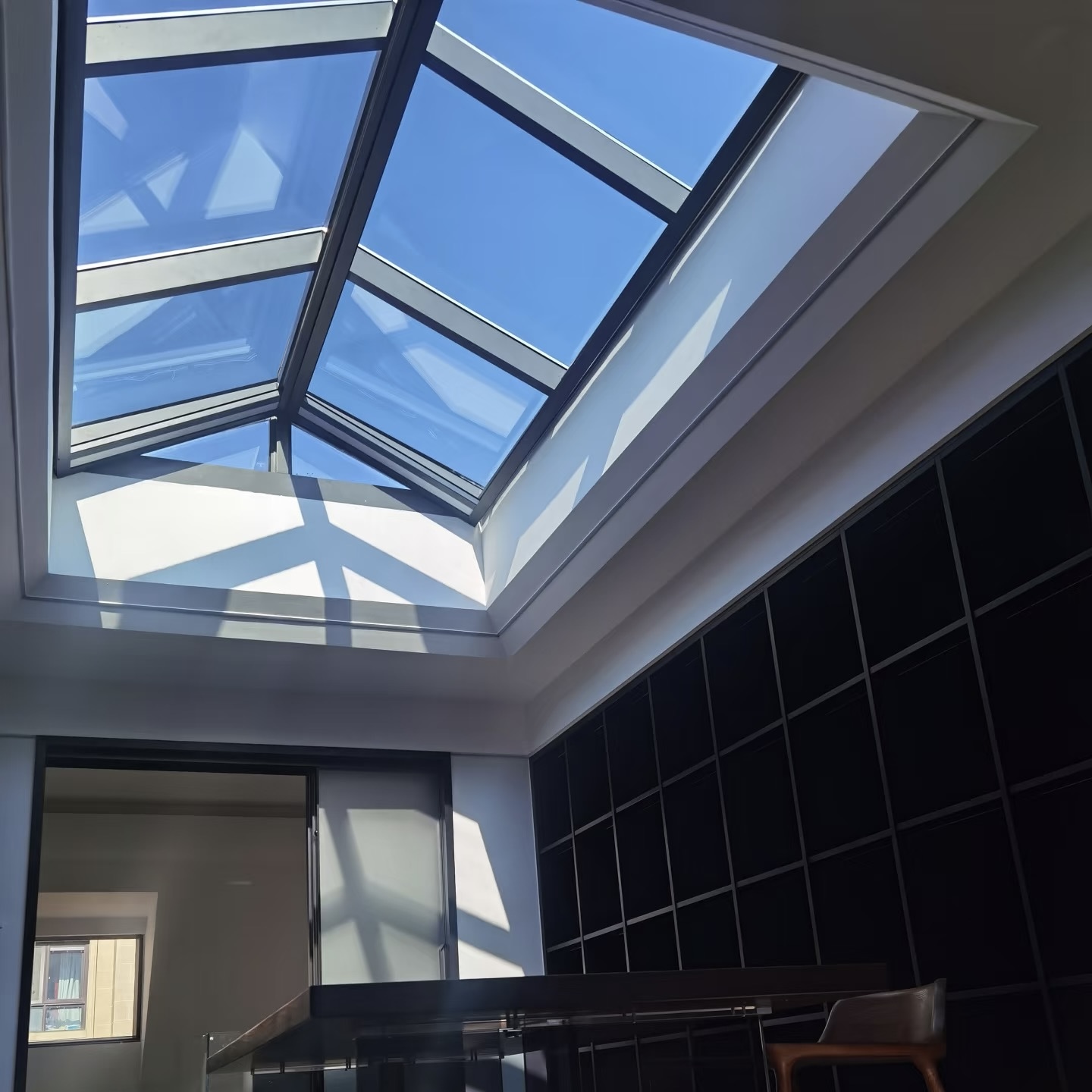

For Installed Glass Upgrade

SpectraNyx SPD Film

Best For

Renovation, budget-sensitive projects, and fast installation.

Main Advantage

Applied directly to existing glass without removing the original panels.

For Privacy Switching

SpectraVeil PDLC Film

Best For

Meeting rooms, bathrooms, hospitals, and office partitions.

Main Advantage

Clear / frosted switching mainly designed for privacy control.

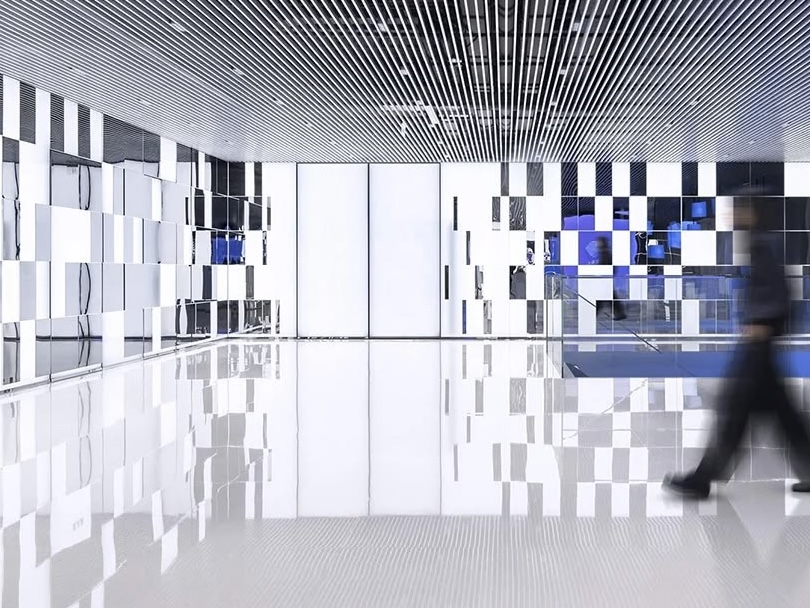

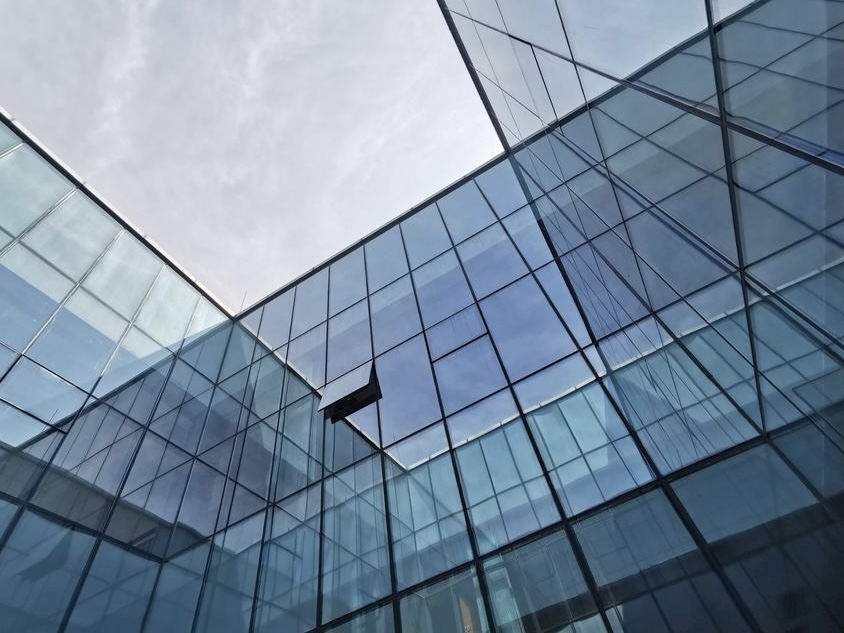

For Decorative Smart Glass

Custom Pattern / Logo Smart Glass

Best For

Brand spaces, showrooms, hotels, and commercial projects.

Main Advantage

Supports custom patterns, logos, zoning control, and decorative visual effects.

Create a smarter, more refined glass experience with Reach Building. Discuss a tailored smart glass solution for your project.

Discuss a Tailored Smart Glass Solution

Complete Smart Glass Control System Support

Reach Building provides more than smart glass products. We help support the complete control system, from controller selection and power supply configuration to wiring design, drawing review, and installation guidance.

PATENTED CONTROL SOLUTION

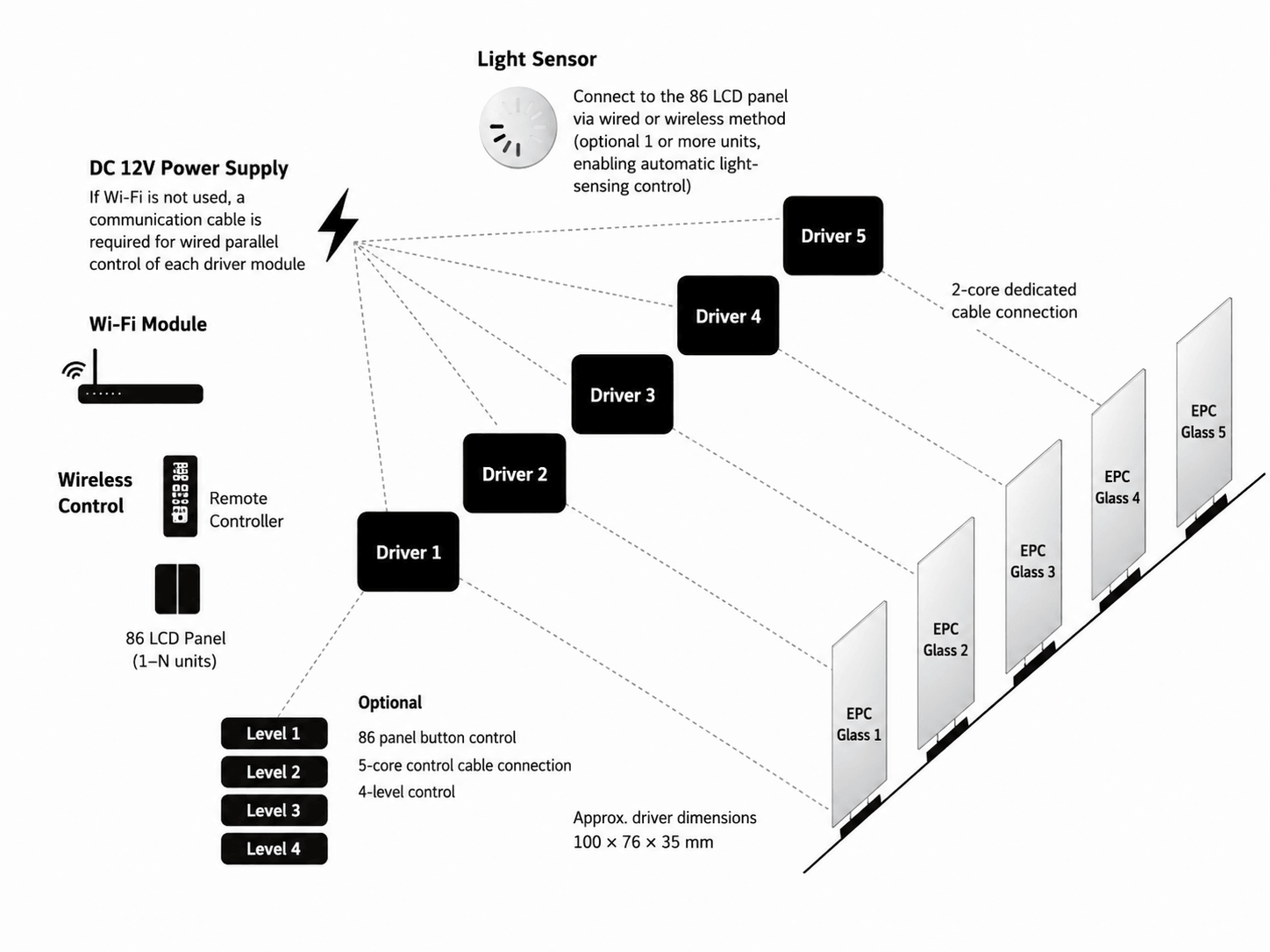

SpectraNyx Smart Glass Controller

Reach Building’s patented controller enables intuitive smart glass operation, supporting switching, dimming, and system-level integration with simplified control logic.

System Support We Provide

01 Control Hardware

Controller Power Supply Communication Module Driver

02 Smart Integration

Sensor System Smart Home Connection App / RF / WiFi Control

03 Project Support

Wiring Layout Guidance Drawing Review Installation Support

01

Smart Glass Selection

SpectraNyx Glass · Smart Film · PDLC

02

Drawing Review & Panel Division

Glass size · Max width 1.6m · Panel division · Cutting plan

03

Control System Supply

Controller · Power supply · Sensors · Remote control

04

Wiring Design Support

Cable exit points · Power position · Controller location · Hidden wiring

One-Stop Project Support

Complete Smart Glass Solution Support

From SpectraNyx Glass selection to control system matching, wiring planning, glass processing, testing, and installation guidance, REACH BUILDING supports the full smart glass project workflow.

Discuss Your Smart Glass Project

View More Project Support

Smart Home & BMS Integration

Connect with smart home systems, hotel control systems, BMS, sensors, and automation controls.

Customized Design

Support custom patterns, logos, local visual effects, and branded smart glass design.

Glass Processing

Support cutting, edge work, holes, lamination, insulated combinations, and system matching.

Design & Engineering Support

Work with architects, facade contractors, equipment manufacturers, and project teams before installation to confirm glass layout, wiring routes, power position, and control method.

Sample & Testing

Support samples, dimming tests, synchronized tint changing, electrical checks, and appearance inspection.

Installation Guidance

Provide wiring suggestions, control system connection guidance, remote support, and maintenance advice.

Why Choose SpectraNyx

Smart Glass?

Smart tint control, solar protection, flexible installation, and wide architectural applications come together in one advanced glass solution. SpectraNyx Glass helps improve daylight comfort, reduce glare and heat, and bring intelligent dimming performance to modern architectural glass projects.

SPECTRANYX GLASS CAN PROVIDE

Stepless dimming for continuous tint adjustment, not simple ON / OFF switching
UV and IR protection to reduce solar radiation impact on interiors, equipment, and furniture
Protection for valuable furniture, leather, wood finishes, artworks, and premium interior spaces
Glare and solar shading control for better working, living, driving, and operating comfort

Outdoor effect of SpectraNyx SPD smart glass

SPECTRANYX GLASS CAN PROVIDE

Solar shading while maintaining outside views, unlike curtains or blinds
Integration with smart homes, controllers, communication modules, sensors, and building control systems
Flexible tinting effects including top-bottom zoning, left-right zoning, and panel-by-panel control
Concealed wiring design to keep the overall glass appearance clean, natural, and premium

SpectraNyx SPD Glass Advantages at a Glance

Stepless Dimming

Continuously adjusts visible light transmission from clear to tinted, not simple ON / OFF switching.

Fast Tint Response

Quickly changes between clear, soft tint, and dark tint states to match changing sunlight conditions.

UV & IR Protection

Helps block ultraviolet and infrared radiation, reducing solar impact on interiors and furniture.

Smart Control

Supports remote control, app control, sensors, timers, and building control system integration.

Wide-Width SPD Film

SpectraNyx SPD film can reach up to 1.6 meters in width for larger glass panels.

Laminated or Retrofit

Available as laminated smart glass for new projects or retrofit SPD film for installed glass.

Energy Saving

Helps reduce solar heat gain, improve indoor comfort, and support building energy performance.

Wide Application

Suitable for facades, skylights, sunrooms, smart homes, hotels, commercial spaces, and equipment glazing.

Where Can SpectraNyx Glass

Be Used?

Reach Building smart glass solutions can be adapted to facades, skylights, residences, hotels, vehicles, showrooms, and interior partitions. Based on your project scenario, glass structure, installation method, and control requirements, we help recommend the most suitable option.

Application Effects

See SpectraNyx Glass in Different Applications

Explore how SpectraNyx Glass performs in pet carriers, transportation glass, vehicle windows, sunrooms, and other smart glass application scenarios.

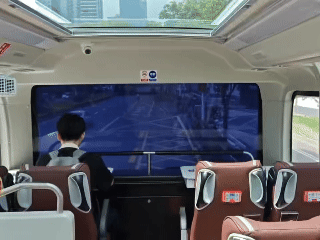

SpectraNyx Glass effect on bus windshield

In its opaque state, SpectraNyx Glass can also be used as a projection screen, adding display functionality to the glass surface.

Need a Tailored Smart Glass Recommendation?

Share your project drawings, site photos, or application requirements with our team. We can help recommend the suitable smart glass type, glass build-up, control method, and concealed wiring solution for a refined final installation without exposed cables.

Get a Tailored Recommendation

Project Scenarios for SpectraNyx Glass

See how SpectraNyx Glass supports smart tint control, solar shading, daylight comfort, and custom visual effects across different architectural applications, helping glass facades, skylights, and commercial spaces achieve a cleaner balance between performance and design.

Case 01

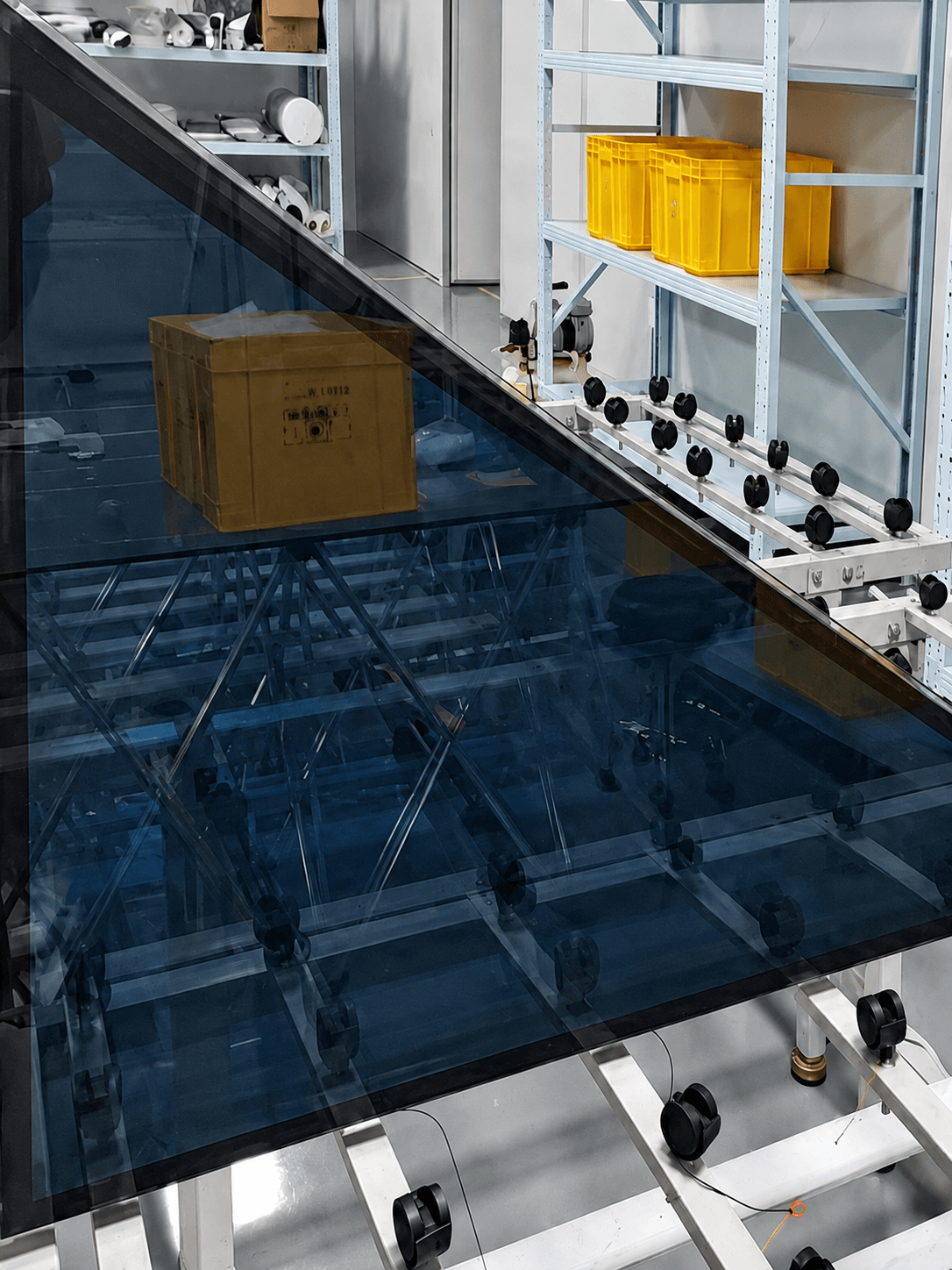

BILI Planet Skylight Configuration

A skylight configuration study combining ultra-clear tempered glass, Low-E insulated glass, argon-filled cavity, and SpectraNyx smart dimming film for project-based daylight control.

Case 02

Vietnam Smart Glass Project Reference

A project reference showing SpectraNyx Glass used in a large architectural glass structure, supporting daylight control, solar shading, privacy, and a distinctive smart tint effect.

Case 03

Building Facade Effect Study

A facade visual study showing different smart glass layout options for exterior elevation design, pattern presentation, and branded architectural glass effects.

Frequently Asked Questions

Answers to common questions about SpectraNyx Glass, SPD smart dimming technology, applications, control systems, wiring, warranty, and project support.

Is SpectraNyx Glass SPD or PDLC?

SpectraNyx Glass is an SPD-based smart dimmable glass solution developed by REACH BUILDING. It supports stepless tint adjustment, fast response, sunlight control, glare reduction, and UV/IR protection.

PDLC smart glass is also available, but it is mainly used for privacy control, switching between transparent and frosted states.

What is the difference between SPD and PDLC smart glass?

SPD glass changes from clear to tinted and supports continuous dimming, making it suitable for sunlight, glare, heat, UV, and IR control.

PDLC glass switches between transparent and frosted states, making it better for privacy applications such as offices, bathrooms, hotels, and partitions.

Choose SPD for shading and light control. Choose PDLC for privacy.

Can SpectraNyx Glass be dimmed continuously?

Yes. SpectraNyx Glass supports stepless dimming, allowing the glass to adjust to different tint levels instead of only switching between clear and dark.

This makes it suitable for facades, skylights, equipment glass, villas, hotels, and commercial spaces.

Can SpectraNyx Glass be used indoors and outdoors?

Yes. SpectraNyx Glass can be used for both indoor and outdoor applications.

It is suitable for facades, skylights, glass roofs, equipment glass, high-end residences, hotels, showrooms, offices, and spaces that need sunlight control or smart visual effects.

What is the maximum panel width? Can it be spliced?

The maximum single panel width of SpectraNyx Glass is 1.6 meters.

For larger glass areas, multiple panels can be combined or spliced according to the facade grid, frame system, skylight structure, equipment opening, or interior layout.

Can SpectraNyx Glass be used in hot climates?

Yes. SpectraNyx Glass can withstand temperatures up to 90°C, making it suitable for hot regions and sun-exposed applications.

For high-temperature projects, REACH BUILDING can help review the glass structure, installation position, ventilation condition, and control system design.

What is the service life and warranty?

SpectraNyx Glass is designed for long-term use, with an expected service life of more than 10 years under proper application and installation conditions.

It comes with a 5-year warranty based on agreed project specifications, correct installation, and normal operating conditions.

Can REACH BUILDING provide controllers and smart system support?

Yes. REACH BUILDING can provide controllers, power supply units, drivers, communication modules, sensors, switches, and remote-control options.

SpectraNyx Glass can also be connected with smart home systems, hotel control systems, sensors, or building management systems according to project requirements.

Can you help with wiring design before installation?

Yes. REACH BUILDING can help review drawings and provide wiring planning before production and installation.

Support can include reserved wiring positions, power supply layout, controller location, glass outlet direction, panel grouping, and control zone planning.

Can SpectraNyx Glass be used on existing glass?

Yes. SpectraNyx is available as both laminated smart glass and retrofit smart film.

Laminated SpectraNyx Glass is recommended for new projects, facades, skylights, and long-term architectural applications. Retrofit SpectraNyx Film is more suitable for existing glass upgrades or renovation projects where replacing the original glass is not ideal.

SpectraNyx Glass – Smart Dimmable Glass for Sunlight Control, Facades & High-End Spaces

What Is SpectraNyx Glass?

Clear Mode

Soft Tint

Dark Tint

SpectraNyx Glass at a Glance

Maximum Width

Warranty Support

Service Life

Operating Temperature

From Fixed Transparency to Continuous Smart Tint Control

Traditional Glass

SpectraVeil PDLC Glass

SpectraNyx SPD Glass

How SpectraNyx Glass Works?

Not Just ON / OFF

Stepless Tint Control

No Control Signal

Control Signal Applied

Power / Control Signal

SPD Particles Adjust Their Alignment

Glass Tint Changes Continuously

Light, Glare, Heat, UV and IR Are Controlled

SpectraNyx Glass: Intelligent Adaptive Dimming

Strong Sunlight

Soft Light

Smart Glass Product Options

SpectraNyx SPD Film

SpectraNyx SPD Film Product Performance and Technical Parameters

Structure Principle of SpectraNyx SPD Film

SpectraNyx Smart Glass

SpectraNyx Glass with Laminated Safety Structure

Laminated Glass

Insulated Glass

Tempered Glass

SpectraNyx Smart Glass Product Performance and Technical Parameters

Structure Principle of SpectraNyx Smart Glass

SpectraVeil PDLC Film

SpectraVeil PDLC Film Product Performance and Technical Parameters

SpectraVeil PDLC Film Product Performance and Technical Parameters

Smart Glass Solutions We Offer

SpectraNyx Glass

SpectraNyx SPD Film

SpectraVeil PDLC Film

Custom Pattern / Logo Smart Glass

Complete Smart Glass Control System Support

SpectraNyx Smart Glass Controller

System Support We Provide

Smart Glass Selection

Drawing Review & Panel Division

Control System Supply

Wiring Design Support

Complete Smart Glass Solution Support

Why Choose SpectraNyx

Smart Glass?

SPECTRANYX GLASS CAN PROVIDE

SPECTRANYX GLASS CAN PROVIDE

SpectraNyx SPD Glass Advantages at a Glance

Stepless Dimming

Fast Tint Response

UV & IR Protection

Smart Control

Wide-Width SPD Film

Laminated or Retrofit

Energy Saving

Wide Application

Where Can SpectraNyx Glass

Be Used?

See SpectraNyx Glass in Different Applications

Project Scenarios for SpectraNyx Glass

BILI Planet Skylight Configuration

Vietnam Smart Glass Project Reference

Building Facade Effect Study

Frequently Asked Questions

CONTACT US

QUICK LINKS

PRODUCTS CATEGORY

SIGN UP FOR OUR NEWSLETTER
