GLASS PROCESSING SUPPORT

Glass Processing Support for Americas Projects

From glass thickness to hardware-ready holes and project traceability, Reach Building helps turn railing and pool fencing requirements into installation-ready glass panels.

Item Frameless Glass Railing & Pool Fencing Semi-Frameless Glass Railing & Fencing
Glass Thickness 12mm+ glass options 10mm+ glass options
Hardware Preparation U-channel / spigot / standoff / hinge / latch interfaces Post / clamp / bracket / handrail interfaces
Opening Coordination Panel gaps / bottom clearance / gate-side openings Glass-to-post gaps / bottom clearance / hardware-side spacing
01

Glass Processing

Frameless System

Pre-tempered holes, cutouts, polished edges, and radius corners for frameless railing and pool fencing panels.

Semi-Frameless System

Pre-tempered drilling, edge polishing, corner finishing, and cutouts for post or clamp-supported systems.

02

Marking & Traceability

Safety Glazing Mark

Reach Building safety glazing marks can be applied to support project identification and inspection needs.

Project Traceability

Panel labels, packing references, and project records help contractors match glass panels to drawings and installation areas.

01 FRAMELESS SYSTEM CONFIGURATION

Reach Building supports frameless glass railing and fencing projects across the Americas with hardware options matched to glass thickness, fixing method, railing height, coastal exposure, pool gate access, and project-specific code review.

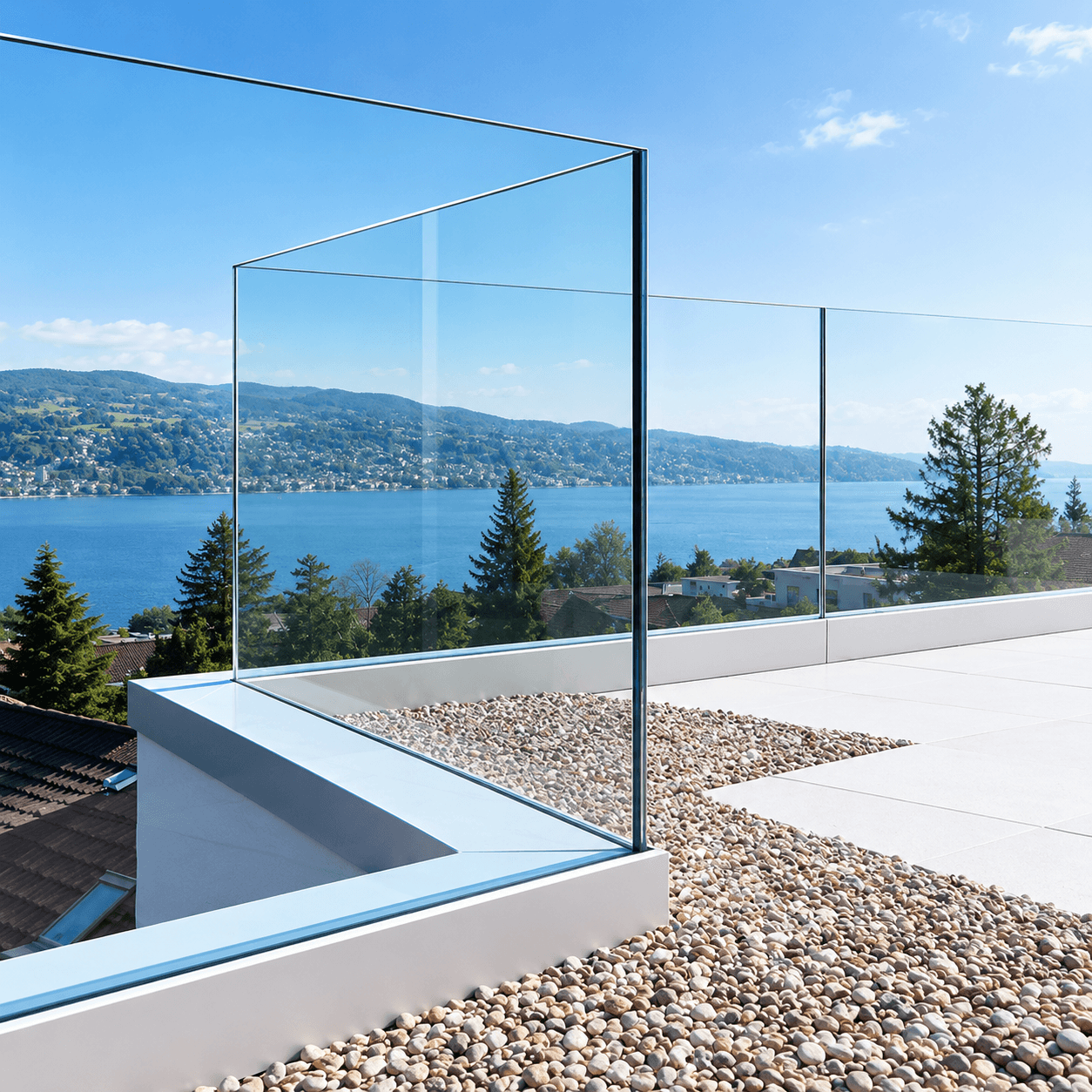

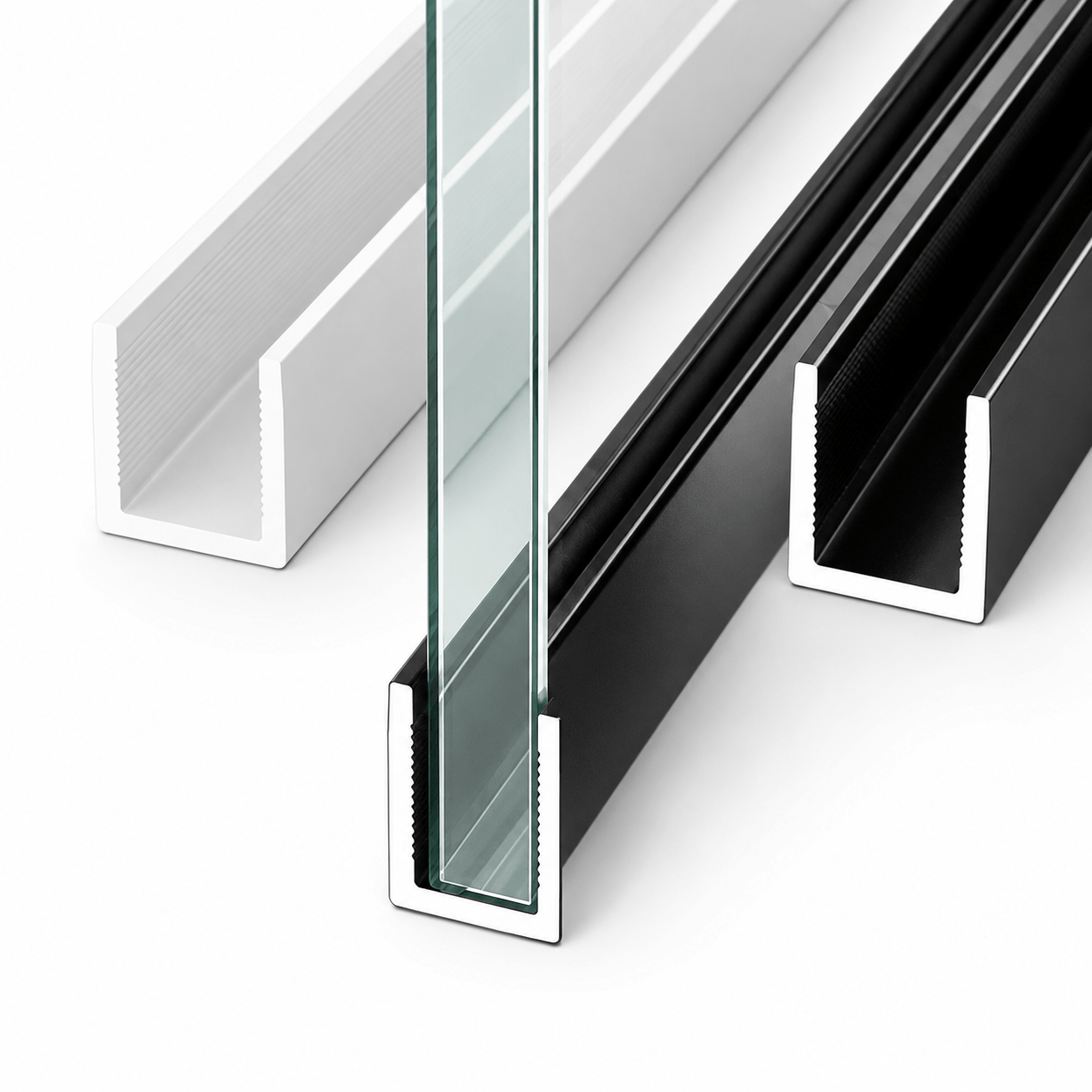

U-Shaped Channel U-Shaped Channel for frameless glass railing
01

U-Shaped Channel

Standoff Fixings Standoff fixings for frameless glass railing
02

Standoff Fixings

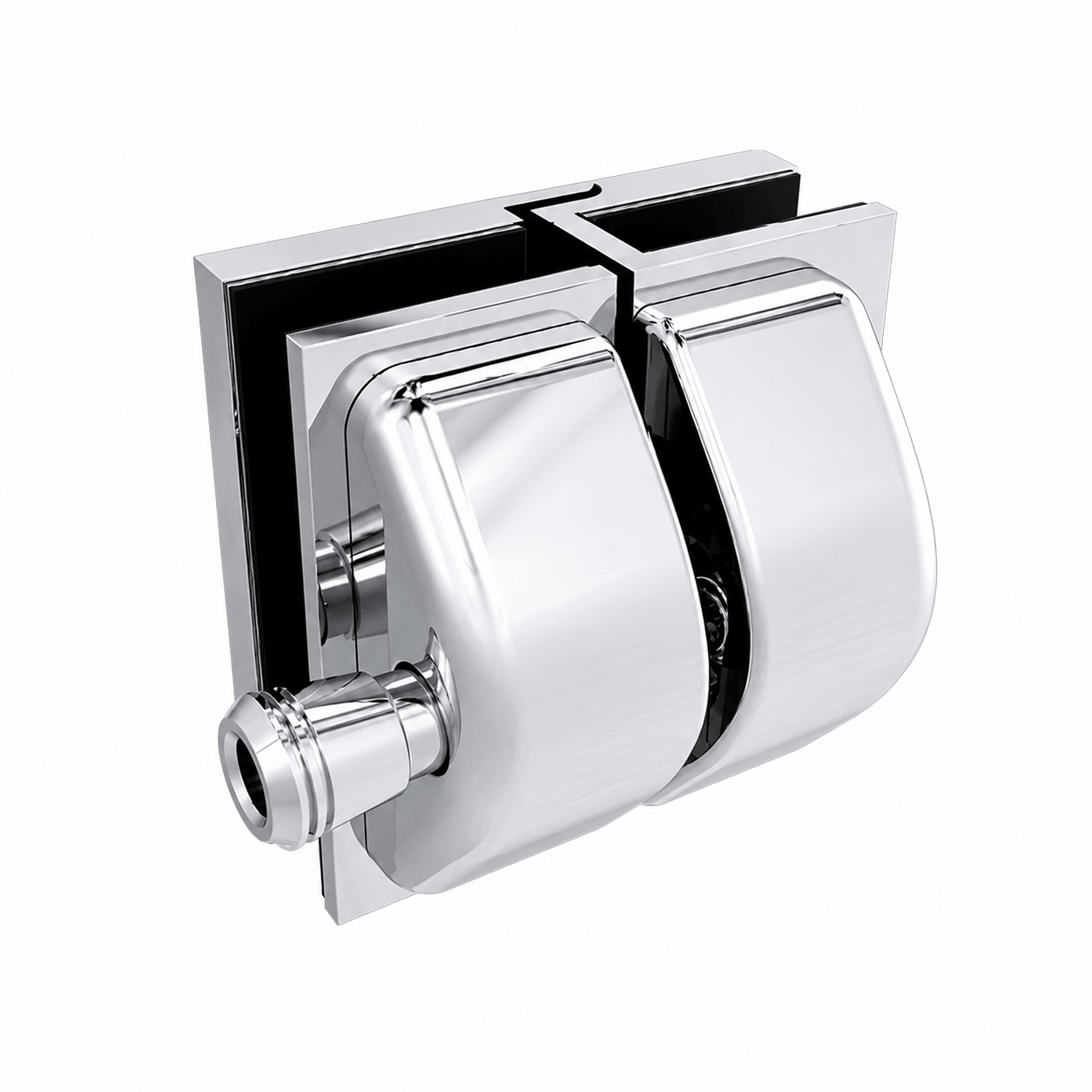

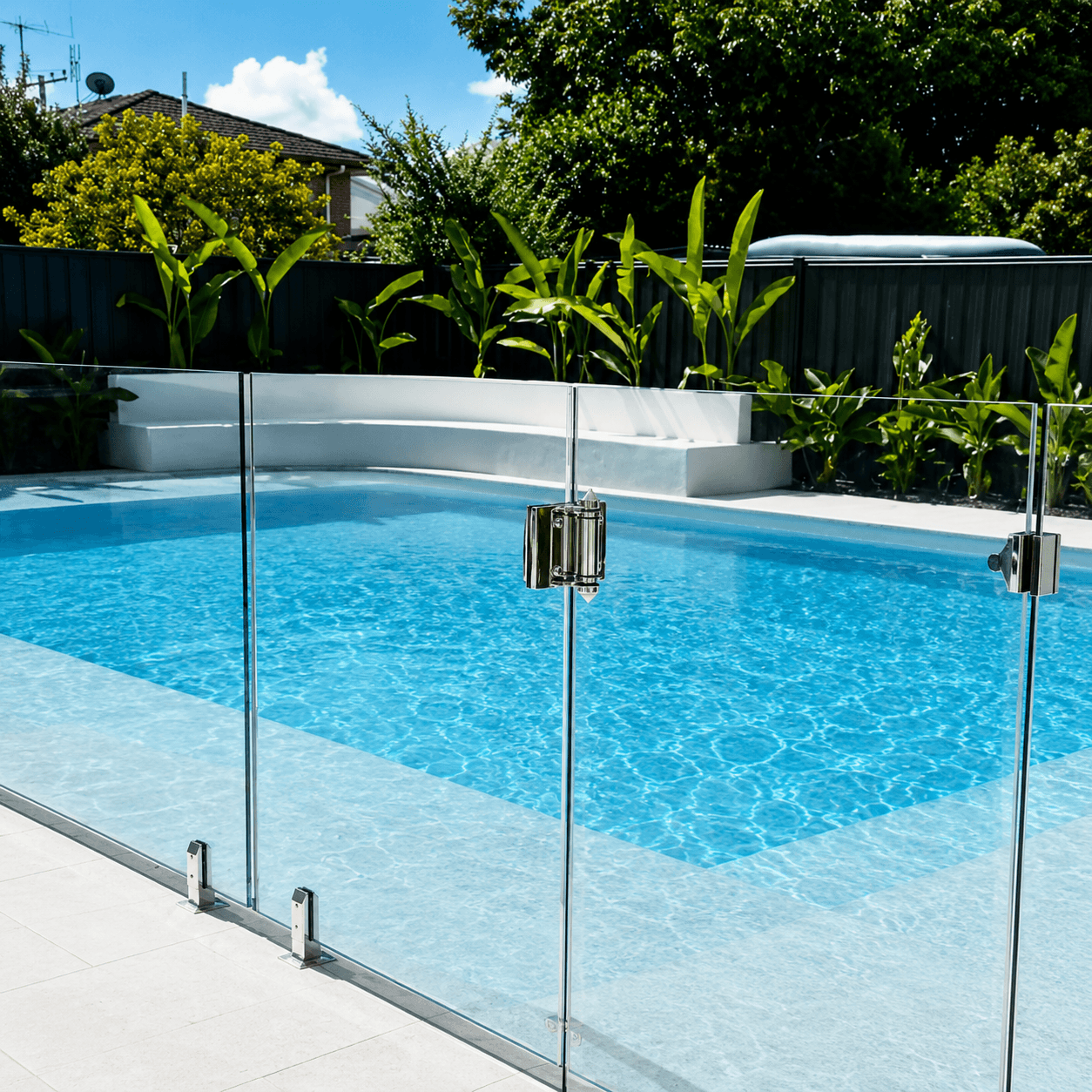

Self-Closing Hinges Self-closing hinges for pool fencing gate access
03

Self-Closing Hinges

Handrail Handrail for frameless glass railing
04

Handrail

Recommended Glass Options for Americas Projects
Name Introduction Download
TEMPERED GLASS.pdf Tempered glass: 5-19mm, max 2800x12000mm, high transmittance, edge/drilling/film coating processing. Download
With over 20 years of experience in building materials, Reach Building provides customized glass products and technical solutions for global construction and interior projects.
