Thickness: 3mm, 4.2mm, 4.5mm, 5mm, 6mm, 7.2mm, 8mm, 10mm, 12mm, 15mm, etc.

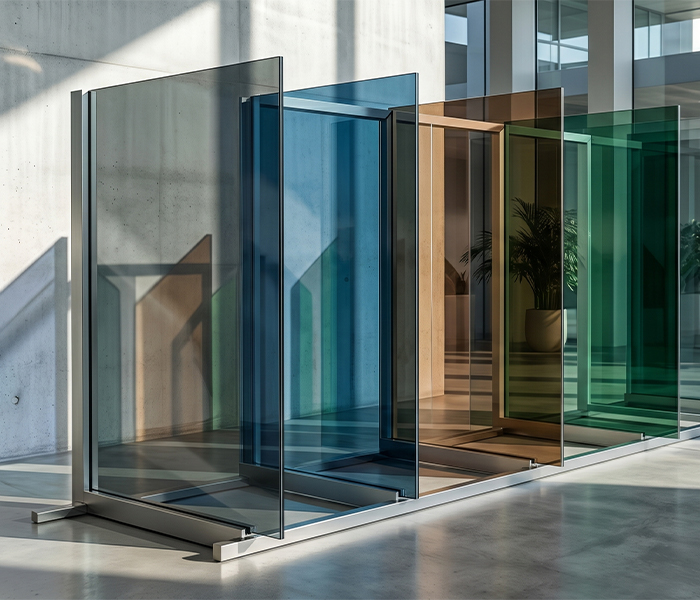

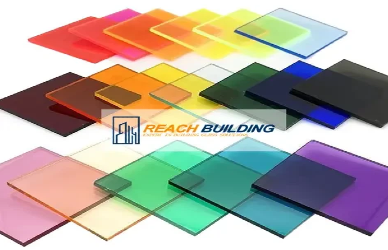

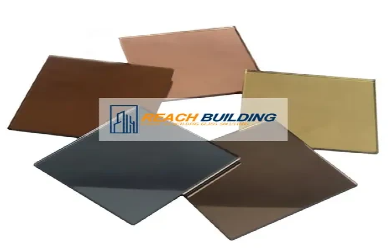

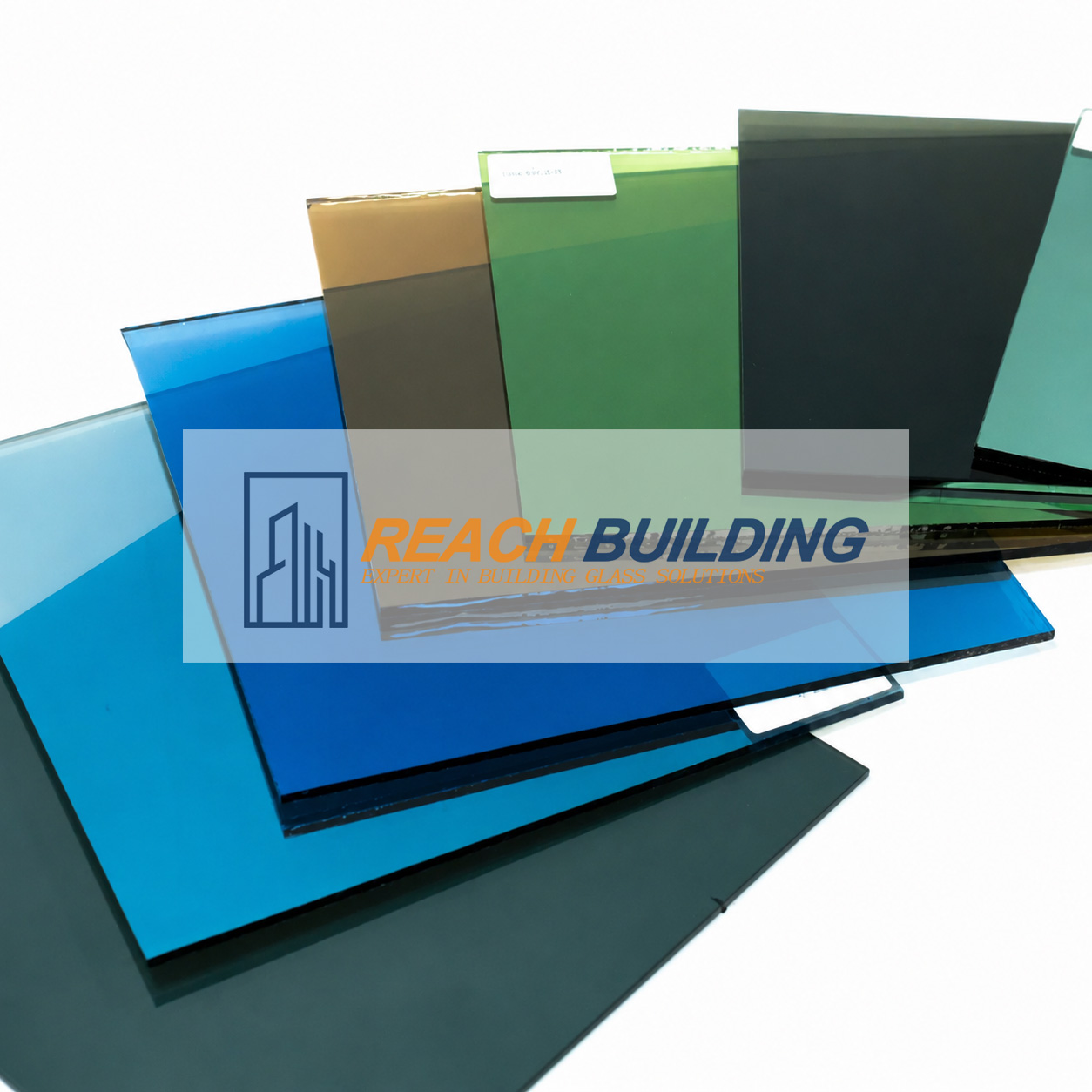

Colors: French Green, Bronze, Dark Green, Lake Blue, Dark Blue, Gold Bronze, Euro Grey, Dark Grey, Black, etc.
Min Size: 300mm * 300mm
Max Size: 2800mm * 12000mm

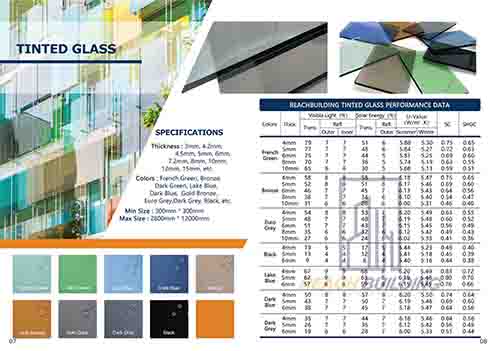

Thickness | 3-15mm (Other thicknesses available upon request) |
Color | Euro Grey, Dark Grey, Bronze, French Green, Dark Blue, Black, etc. |
Optical Transmittance | 15% - 75% (Depends on color and thickness) |
Bending Strength | 120-180Mpa (After tempering) |
Impact Strength | 4-5 times higher than standard float glass (After tempering) |
Temperature Resistance | 200°C - 300°C (After tempering) |
Maximum Size | 2800mm x 12000mm (Custom sizes available) |
Minimum Size | 300mm x 300mm (Custom sizes available) |
Delivery time | 7-14 days |
"Body-Tinted" Float Process: Eliminates the scratching and peeling risks associated with surface coatings or aftermarket films.
High-Temperature Fusion: Specific metallic oxides (cobalt, iron, selenium) are precisely blended into molten glass at over 1,500°C.
Extreme Durability: Permanently fade-resistant, weatherproof, and fully immune to peeling.
Long-Term Aesthetics: Ensures architectural facades maintain their original visual impact for decades.
The unique chemical composition of body-tinted glass gives it distinct physical and optical characteristics highly valued by architects:
Proportional Color Density: The intensity of the color and the level of light transmission are directly related to the thickness of the glass. A 12mm Euro Grey panel will appear noticeably darker and offer more privacy than a 5mm panel of the same color, allowing for nuanced architectural light control.
Exceptional Glare Reduction: By absorbing a specific portion of the visible light spectrum, tinted glass acts as a natural filter. It softens harsh, direct sunlight, creating a visually comfortable indoor environment that reduces eye strain and minimizes the need for interior blinds.
High Thermal Absorption: Tinted float glass naturally absorbs solar heat radiation (Infrared). By trapping this heat within the glass pane itself (which is then dissipated outward by exterior airflow), it significantly reduces the amount of heat entering the building.
While our tinted float glass is a premium raw material, subjecting it to Reach Building’s advanced tempering process unlocks its ultimate architectural potential:
Thermal Stress Resistance: Because tinted glass absorbs solar heat, it can experience temperature differentials across the panel, which can lead to thermal breakage in standard annealed glass. Tempering the tinted glass increases its thermal resistance exponentially, making it completely safe for highly sun-exposed facades and hot climates.
Ultimate Mechanical Strength: Once tempered, our tinted glass becomes 4 to 5 times stronger than standard float glass. This extreme structural rigidity makes it suitable for heavy-duty applications like frameless glass railings, floor-to-ceiling office partitions, and jumbo-size curtain walls.
Post-Breakage Safety: In the rare event of severe impact, tinted tempered glass safely shatters into small, blunt granular chunks rather than dangerous sharp shards, ensuring full compliance with international safety codes (SGCC, CE, AS/NZS).
UV Radiation Barrier: Depending on the selected color and thickness, our tinted glass acts as a highly effective shield against ultraviolet (UV) rays, protecting valuable interior furnishings, retail merchandise, and artwork from sun-induced fading.
Seamless Processing Compatibility: Our tinted glass serves as the perfect substrate for further deep processing. It can be easily combined with Low-E coatings to create high-performance Insulated Glass Units (IGUs), or bonded with PVB/SGP interlayers to manufacture tinted laminated safety glass for ultimate security and acoustic control.
Building Facades & Curtain Walls: Tinted glass is a cornerstone of modern commercial and residential architecture. The uniform body-tinted finish enhances a building's aesthetic, providing a sleek, high-end appearance that conceals internal structures. Functionally, it significantly reduces solar heat gain and glare, improving the overall energy efficiency and climate comfort of large-scale glass envelopes.

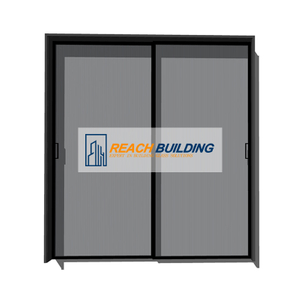

Windows & Doors: Our tinted glass is extensively used in premium window and door systems to provide enhanced privacy without compromising the entry of natural light. By absorbing a portion of the visible light spectrum, the glass reduces the intensity of direct sunlight, making it an ideal solution for offices and residences located in high-sunlight or tropical regions.
Canopies & Skylight Glazing: Used in skylights and overhead glazing, tinted tempered glass provides essential UV protection and thermal shielding. It filters harsh overhead light into a soft, diffused glow, protecting interior occupants and assets from sun damage while maintaining a connection to the sky.

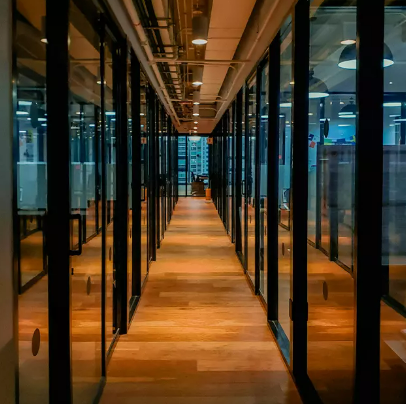

Executive Office Partitions: In corporate environments, tinted glass serves as a sophisticated medium for partition walls and room dividers. It creates a modern, professional atmosphere that balances openness with semi-privacy. The use of Euro Grey or Bronze tints allows light to flow through the workspace while providing visual boundaries for meeting rooms and executive suites.
High-End Retail Storefronts: Luxury boutiques and retail storefronts utilize dark-tinted glass to create a dramatic and exclusive brand presence. The glass naturally controls reflections and glare, allowing displayed merchandise to stand out under targeted lighting. Its permanent color ensures the storefront maintains a premium look that does not fade under high-intensity mall or street lighting.
Balustrades & Railing Systems: Tinted safety glass is a preferred choice for balcony railings and staircases in luxury hotels and residential projects. It offers a naturally shaded outdoor experience and hides floor slabs from view, creating a cleaner exterior building line. When laminated with SGP or PVB, it provides a high-strength structural barrier that combines safety with panoramic views.
Premium Furniture Surfaces: Beyond construction, tinted glass is a staple in the high-end furniture industry. Precision-cut and CNC-finished, it is used for dining table tops, shelving units, and cabinet doors. The deep, consistent coloration adds a layer of material weight and luxury to minimalist furniture designs, offering a durable surface that is resistant to scratches and fading.
Structural Glass Floors & Stair Treads: For specialized structural applications, multi-layered tinted laminated glass provides a unique aesthetic for skywalks and transparent flooring. The tint adds a sense of security by reducing the dizzying effect of total transparency while maintaining the architectural drama of a glass floor. Its thermal resistance makes it suitable for areas with varying temperature exposures.
Appliance & Electronic Panels: Due to its high precision and excellent thermal stability, our tinted glass is increasingly used for decorative panels in high-end appliances and electronic interfaces. It provides a "dead-front" effect where displays are hidden when powered off and clearly visible when lit, aligning with the "minimalist industrial" design trend.
We transform raw tinted glass into high-performance structural components through our state-of-the-art facility:
Custom CNC Cutting: Utilizing high-precision CNC technology to provide bespoke sizing from 300mm up to our signature 12,000mm jumbo format, maintaining strict dimensional tolerances.
Professional Edge Finishing: We offer various edge treatments including flat polished edges, pencil (C-shape) edges, and mitred edges (up to 45°) to ensure safety and aesthetic perfection for exposed glass applications.
Safety Toughening & Tempering: All tinted glass can be fully tempered or heat-strengthened to increase mechanical strength and thermal stress resistance, ensuring compliance with global safety standards.
Drilling & Notching: Precise water-jet cutting and drilling for hardware integration, ideal for frameless railings, door panels, and point-fixed curtain walls.
Laminated & Insulated Upgrades: We specialize in bonding tinted glass with PVB or SGP interlayers for security, or integrating it into Double Glazed Units (IGUs) for superior thermal and acoustic insulation.
Recognizing the complexities of international logistics and the fragility of oversized glass, we implement a multi-layered protection system:

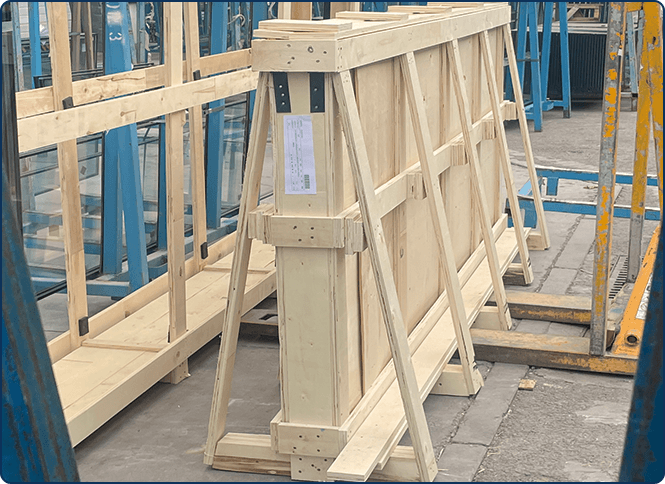

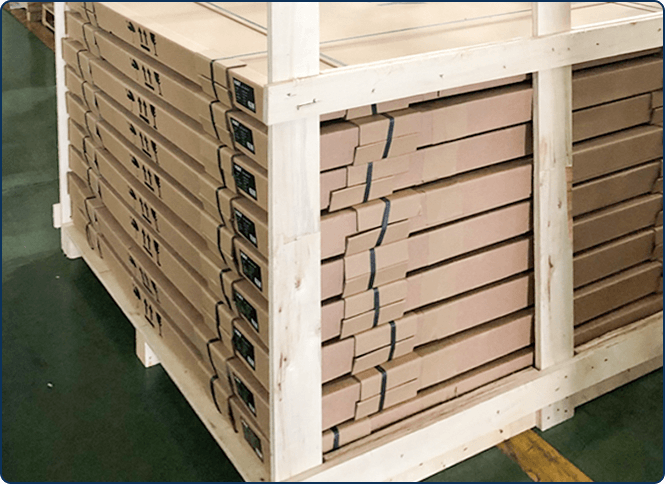

Reinforced Plywood Crating: All glass panels are secured in heavy-duty, fumigation-free plywood crates specifically engineered for sea and land transport.
Interleaved Surface Protection: To prevent scratches and chemical staining (glass-to-glass contact), each panel is interleaved with moisture-resistant paper or non-staining anti-mold powder.
Jumbo-Size Load Management: For our 12-meter jumbo panels, we utilize specialized internal bracing and steel-strapping systems to prevent shifting during transit.
Moisture & Corrosion Barrier: Crates are lined with moisture-proof materials to protect the glass from humidity and sea-salt exposure during long-distance shipping.
Comprehensive Labeling & Tracking: Every crate is clearly marked with specifications, fragility warnings, and orientation indicators to facilitate safe handling and easy inventory management at your site.
Will the color of the tinted glass fade over time under intense sunlight?
No. Our glass is produced using advanced body-tinted technology, where metallic oxides are fused into the molten glass at 1,500°C. The color is a permanent, structural part of the glass mass, making it completely immune to UV fading, peeling, or scratching, unlike surface-applied films.
How do you ensure color consistency across large wholesale orders?
Color uniformity is critical for architectural facades. For large-scale projects, REACH BUILDING manages production in dedicated batches using precise colorimeter monitoring. We recommend supplying all glass for a single project from the same production run to guarantee a flawless, seamless visual match across the entire envelope.
Is tinted glass more prone to thermal breakage than clear glass?
Yes, because tinted glass is designed for solar heat absorption, it retains more thermal energy. To mitigate the risk of thermal stress—especially in high-sunlight regions—we strongly recommend tempering or heat-strengthening the tinted panels. This process increases the glass's resistance to temperature differentials by 4–5 times.
How much energy can I save by using solar control tinted glass?
Tinted glass can block up to 30–50% of solar heat gain compared to standard clear glass. By reducing the Solar Heat Gain Coefficient (SHGC), it significantly lowers the cooling load on HVAC systems, leading to substantial long-term energy savings in commercial and residential buildings.
What colors are currently the most popular for modern architecture?
Euro Grey and Dark Grey remain the industry standards for a "cool," modern aesthetic. Bronze is frequently selected for its warm, luxury feel in high-end hospitality projects, while French Green is popular in regions seeking a balance between high light transmittance and effective heat absorption.
Is it possible to combine tinted glass with other functional coatings?
Yes. We often process tinted glass into Double Glazed Units (IGUs) combined with Low-E coatings. This "double-action" solution provides the aesthetic and shading benefits of tinted glass on the exterior, while the Low-E coating on the inner surface offers superior thermal insulation.
How do you guarantee the safety of oversized glass during international shipping?
We utilize a zero-breakage packaging protocol. Every order is secured in reinforced, fumigation-free plywood crates with moisture-proof interleaving. For jumbo panels, we employ specialized steel-frame bracing and shock-absorption systems to ensure that your materials arrive on-site in perfect condition, regardless of the transit distance.
