Modern architecture constantly wrestles with a core tension. You design iconic, sweeping geometries, but you must simultaneously maintain strict structural, thermal, and budgetary viability. It is a delicate balancing act defining modern urban skylines today. Transitioning conceptual renders into a finalized, compliant facade requires highly precise specifications. It also demands a capable fabrication partner who truly understands the nuances of complex geometry. Every curved elevation brings distinct challenges to light transmission, wind load distribution, and energy performance.
This article outlines how you can evaluate different manufacturing methods for your next architectural project. We will show you how to mitigate critical installation risks and avoid common procurement pitfalls. You will also learn exactly how to select the right supply partner to execute complex facade requirements without compromising safety, aesthetic intent, or baseline project schedules.
Manufacturing dictates design limits: The choice between hot-bending and cold-bending directly impacts maximum dimensions, achievable radii, and project budgets.
Performance requires precision: Custom curved panels must meet the same stringent wind-load, seismic, and thermal requirements as flat glazing, demanding advanced lamination and coating techniques.
Vetting prevents delays: Selecting an experienced OEM partner early in the design phase minimizes optical distortion (anisotropy) and mitigates supply chain risks for oversized panels.
Developers and lead architects often face severe scrutiny when justifying the premium costs of an architectural curved facade. However, the return on investment becomes clear through increased long-term property values. A sweeping glass exterior instantly establishes localized landmark status. It drives premium tenant acquisition in highly competitive urban markets. Tech companies and global law firms actively seek these iconic headquarters. Architects utilize these dynamic geometries to win prestigious design competitions.
True success hinges entirely on aligning visual intent with structural realities. You naturally want smooth continuous curves. You expect optimal light transmission throughout the lobby. Yet, physical glass imposes rigid structural deflection limits. Local safety codes mandate specific post-breakage behaviors. You must harmonize these competing demands early in the schematic design phase. Smooth renders mean nothing if the physical glass cannot handle real-world wind pressures.
Tighter radii and complex geometries exponentially inflate your procurement budgets. Cylindrical designs bend along a single axis. They remain relatively manageable for experienced fabricators. Multi-directional curves bend across two or more axes. This 3D geometry demands customized steel molds for every single panel. Oversized panels create entirely different logistical nightmares. Procurement costs skyrocket when you exceed standard jumbo glass dimensions. We can visualize this financial and logistical relationship directly below.
Geometry Type | Radius Constraint | Budget Impact | Installation Complexity |
|---|---|---|---|
Cylindrical (Single-axis) | Moderate to Tight | Medium | Standard crane logic |
Multi-directional (3D) | Highly Variable | High | Requires precision 3D framing |
Oversized Convex/Concave | Shallow limits | Very High | Specialized custom lifting equipment |

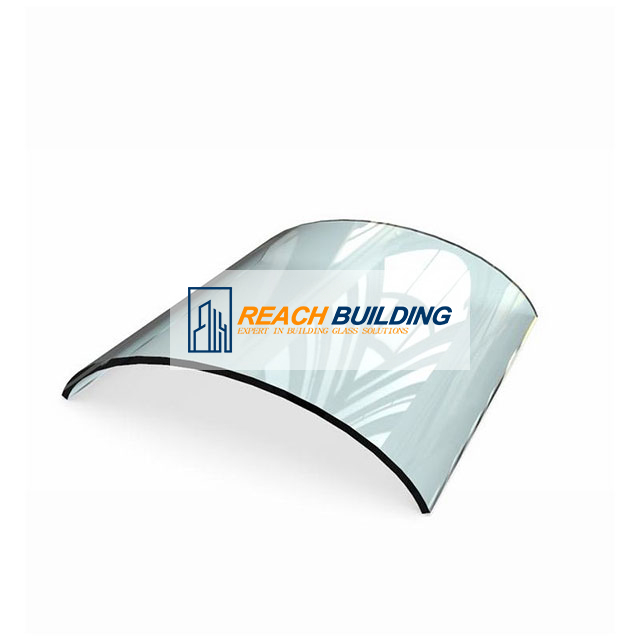

To execute your design properly, you must fully understand the core fabrication methods. Solution categories generally divide into two distinct techniques. Each method imparts very different physical properties. They define exactly how bent building glass achieves its final shape.
Hot-Bent (Gravity and Press Bending)
The hot-bending process involves heating glass to a highly pliable state. Technicians place flat glass over a bespoke steel mold. A massive convection furnace heats the glass until it softens. Gravity naturally pulls the material into the mold. Sometimes, mechanical presses assist this forming stage. Technicians then carefully control the cooling cycle inside an annealing lehr.
Best for: Tight radii demand hot bending. Complex multi-directional curves like spherical or conical shapes require this intense heat manipulation. Highly customized structural glass fins also rely heavily on this traditional method.
Trade-offs: Tooling costs run exceptionally high. Fabricators must weld custom molds for each unique panel radius. Fabrication lead times stretch out for several months. Minor optical distortion can easily surface if cooling rates fluctuate.
Cold-Bent Bending
Alternatively, cold-bending takes a radically different mechanical approach. You never heat the glass to a pliable state. Instead, crews mechanically force flat panels into pre-curved aluminum frames. Installers often execute this directly at the job site. Factory teams can also clamp the glass prior to the lamination process.
Best for: Gentle, sweeping facade curves benefit immensely here. It excels at keeping overall production standardized. Optical perfection remains high because you skip the distortion-inducing furnace entirely.
Trade-offs: This method remains strictly limited to shallow radii. Bending the panel too far simply shatters it. It generates continuous spring-back energy. Your framing system must permanently manage this internal engineered stress safely.
Specifying custom curved glass demands intense engineering scrutiny. You cannot simply apply flat glass performance standards to a bent panel. Structural and safety compliance forms your absolute baseline. You must rigorously calculate static dead loads and dynamic wind loads. Seismic drift requirements push these curved panels to their physical limits. Impact resistance dictates your core material choice. Tempered options resist heavy blunt forces well. Heat-strengthened options avoid spontaneous breakage risks. Laminated configurations keep the entire facade sealed even if an outer lite breaks.
Thermal and energy performance introduces severe manufacturing hurdles. Modern energy codes mandate highly insulated building envelopes. Specifiers frequently demand curved insulated glass units (IGUs) to meet these targets. Integrating performance coatings requires extreme caution. Applying soft-coat Low-E before bending often destroys the microscopic metallic layers. The furnace heat oxidizes the silver coating instantly. Manufacturers must utilize specialized bendable coatings carefully designed for thermal stretching.
Optical clarity constraints frequently cause major friction between architects and fabricators. You must establish strict, measurable tolerances very early. Visual rendering software cannot replace physical reality.
Establish absolute limits for roller wave distortion.
Define the maximum allowable edge dip dimension.
Set anisotropy tolerance thresholds using quantifiable millidiopters.
Always demand full-scale, localized physical mock-ups before full production begins. You need to see exactly how ambient sunlight refracts through the bent glazing.
Finally, acoustic insulation plays a massive role in premium urban developments. Urban noise pollution severely degrades building occupant comfort. Pairing your curved architectural glass geometry with acoustic interlayers solves this issue. Specific PVB or SentryGlas interlayers effectively dampen low-frequency city traffic noise.
Moving massive panels from a factory floor to final facade installation is perilous. You must proactively manage field experience and implementation risks. Fabrication tolerances present a massive daily challenge. Standard flat-glass dimensional tolerances simply do not work here. Bent glass naturally carries slight, unavoidable dimensional deviations. The rapid cooling process introduces unpredictable micro-shrinkage. You need precision-engineered framing systems to compensate. Mullions and transoms must feature adjustable mechanical bites. Thick structural silicone gaskets help absorb minor manufacturing variations.
The logistics of oversized cargo require exhaustive advance planning. Shipping highly convex or concave panels is incredibly difficult. They consume massive spatial volume on transport trucks. Factory teams must build intricate, custom wooden A-frames. Transport companies install digital shock sensors to monitor road vibrations. Port handling for international shipments demands specialized spreader bars. Ignoring these transit realities guarantees shattered panels before they even reach the site.
Installation phasing requires meticulous on-site coordination. Site breakage remains a statistical reality on large commercial projects. Curved panels require custom suction cups for crane hoisting. Standard flat suction cups will lose vacuum and drop heavy loads. Because replacement panels demand lengthy custom fabrication, delays compound quickly. You must factor long replacement lead times into your overarching schedule. Procurement teams should always order buffer panels for highly unique corner geometries.
Sourcing an OEM curved glass partner dictates your ultimate success. Your shortlisting logic must look far beyond basic square-meter pricing. You must evaluate manufacturers rigorously before signing large contracts.
First, verify their proven capacity and machinery directly. Do they actually own the specific autoclaves required? Measure their furnace dimensions against your largest designed panel. Ask about their maximum bending radius capabilities. A manufacturer lacking the correct equipment will silently subcontract the work. Subcontracting immediately increases your quality risks and extends production lead times.
Next, audit their quality assurance and testing protocols. Review their in-house testing procedures for long-term structural integrity. Check their weathering data for laminated units. Demand modern optical scanning capabilities on their factory floor. Automated laser distortion mapping provides objective quality data, eliminating subjective visual arguments.
Robust engineering support separates genuine partners from basic material vendors. Look for OEMs offering comprehensive pre-construction design-assist services. They should provide finite element analysis (FEA) to validate complex stress points. Comprehensive shop drawing support ensures precise frame integration. Accurate shop drawings prevent cascading errors during site installation.
Your next-step action involves formalizing the engineering review. Move away from loose initial consultations quickly. Commission localized mock-up production to lock in aesthetic and performance variables securely.
Successful curved facades rely entirely on early, transparent alignment. You must harmonize your aesthetic architectural vision with actual manufacturing constraints and rigid structural engineering limits. Relying on assumptions leads directly to delayed schedules and compromised designs. Procurement managers and lead architects should act decisively during the early schematic design phase. Submit your project specifications and detailed blueprints to a qualified manufacturing partner. Request a deep technical consultation to assess real-world feasibility and secure accurate baseline pricing today.
A: The minimum bending radius depends heavily on glass thickness and the chosen bending method. Cold-bending usually limits you to radii over 1,500 times the glass thickness. Hot-bending can achieve much tighter radii, often down to 100mm for thinner glass. However, structural loads dictate actual safety limits. Custom engineering is always required to confirm if a specific radius meets local building codes.
A: Yes, but the order of operations matters greatly. Soft-coat Low-E is highly sensitive to extreme heat. Manufacturers typically apply the coating after the glass bends, or they use specialized bendable coatings designed to withstand the furnace. Tight extreme radii can restrict certain high-performance coatings because metallic layers micro-crack under intense stretching.
A: Curved glass generally costs three to five times more than standard flat architectural glass. This premium multiplier stems from expensive custom steel tooling, lower furnace yield rates, and extended processing times. Shipping constraints and specialized wooden crating for 3D convex or concave shapes also heavily drive up the final landed cost.
A: Curved annealed glass cools slowly, offering basic weather protection but breaks into large, dangerous shards. Curved tempered glass is heat-treated for high impact resistance, shattering into small, blunt pebbles to meet strict safety codes. Curved laminated glass bonds two or more glass plies together, ensuring the panel stays intact post-breakage for maximum structural safety.
