A glass facade should bring in daylight, not turn every sunny afternoon into a battle with glare. The same challenge appears in panoramic vehicle windows: people want a clear view without sitting in direct sunlight. However, fixed shading blocks the scenery, while conventional SPD solutions can push up project costs and complicate glass fabrication.
Why should you have to choose between a beautiful view and effective sun protection? REACHBUILDING's EPC opens up a new possibility: a fresh approach to light control that brings clear views, effective shading, and greater project cost efficiency together. Developed as an independent alternative to conventional suspended particle device (SPD) technology, EPC pairs adjustable tint with practical film, glass and control solutions. In this article, we'll compare EPC with SPD, explore its benefits in real-world projects, and look at where the technology is headed.
EPC vs. SPD: What Makes the Difference?
The Real-World Bottlenecks of Traditional SPD Glass
SPD smart glass electrically aligns suspended particles to shift between dark and clear states. However, conventional SPD solutions can present several challenges in real-world projects. Strict lamination requirements can make processing more difficult, reduce production yield, and drive up costs. A limited light-transmission range and higher haze in the dark state can also affect visual clarity and the sense of openness.Power consumption can add to operating costs, while prolonged exposure to high temperatures and harsh weather can challenge long-term durability.
EPC: A Smarter, More Efficient Way to Control Light
It is precisely to solve traditional dynamic glazing bottlenecks that EPC (Electrochromic Particle Control) technology was born. Offering an independent, next-generation technical route, EPC fundamentally alters how light is regulated without relying on conventional suspended particle architectures.
Power ON: EPC smart film quickly turns transparent, allowing light to pass through.
Power OFF: EPC smart film gradually returns to its deep blue or dark gray tint, reducing light transmission.
At its core, EPC operates through a precise, field-driven rearrangement of specialized active particles, adjusting transparency seamlessly in seconds—achieving a swift 2-second move from dark to clear, and a 10-second transition from clear to dark. Rather than a rigid binary state, EPC enables precise, stepless dimming based on voltage levels. With options spanning 1% to 65% Visible Light Transmission (VLT), it fine-tunes light intensity and infrared penetration, eliminating harsh glare while fully preserving panoramic outdoor views.
This refined optical management is backed by elite protection and structural resilience:
99.9% UV Blocking: Safeguards high-end interior furnishings, artwork, and vehicle cabin interiors from UV-related fading and thermal aging.
All-Weather Durability (−30°C to 90°C): Engineered for complex global climates, maintaining stable optical properties under severe hot or cold conditions.
1,000,000+ Switching Cycles: Proven long-term endurance that ensures decade-spanning operation with minimal service disruption.
The advantages become even clearer when compared to traditional SPD solutions. While conventional SPD often requires higher operational power, strict climate limitations, and complex driving setups, EPC operates on an ultra-low power consumption of less than 1 W/m². Furthermore, its film is fully compatible with standard EVA and TPU interlayers, significantly reducing processing complexity and yield loss for glass fabricators. Combined with multi-dimensional smart controls (touch, remote, app, or light sensors), EPC gives project teams a flexible, cost-effective dynamic shading solution backed by REACHBUILDING's end-to-end manufacturing expertise.
When evaluating dynamic glazing, the underlying technology directly dictates performance, fabrication overhead, and long-term ROI. The streamlined grid below highlights the performance shift between traditional SPD and REACHBUILDING EPC.
Core Differences: EPC vs. Traditional SPD
Key Metric
Traditional SPD (Ref.)
REACHBUILDING EPC
VLT Range
1%–55%
1%–65% (Stepless)
Switch Speed
<1s
2s (Clear) / 10s (Dark)
Power Draw
<0.5 W/m² (Higher System Cost)
<1 W/m²
UV Block
90%–95%
99.9%
Durability & Temp
−20°C to 90°C
100,000 – 200,000 Cycles
(Risk of high-temp separation & low-temp thickening)
−30°C to 90°C
1,000,000+ Cycles
Processing & Delivery
PVB / Specialized Only
EVA/TPU Compatible
EPC vs. Traditional SPD Comparison Grid
EPC Solutions for New Builds and Existing Buildings
Whether you're planning a new glass facade or upgrading an existing building, EPC offers flexible ways to bring dynamic shading into your project. REACHBUILDING supplies everything from smart film for glass fabrication and retrofits to finished glazing units and integrated control systems, backed by manufacturing capabilities and technical support for real-world applications.
Versatile Product Deployments: Film, Laminated Glass & Integrated Control
REACHBUILDING provides adaptable EPC product formats engineered for diverse architectural workflows and retrofit requirements:
EPC Smart Laminated Film: Designed for new glass facades and automotive sunroofs. Compatible with standard EVA and TPU interlayers, it simplifies glass lamination, helps reduce material waste, and makes production more cost-efficient for fabricators.
EPC Self-Adhesive Smart Film: Ideal for immediate glass retrofits, enabling fast, cost-effective dynamic shading upgrades without replacing existing window assemblies or halting facility operations.
Finished Double-Laminated IGUs: Factory-assembled multi-cavity units that deliver exceptional acoustic isolation and solar heat rejection, providing a turnkey solution for modern curtain walls.

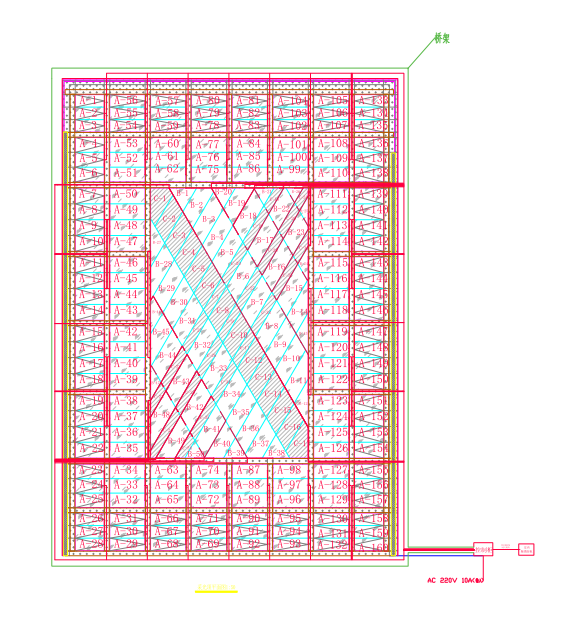

Additionally, all product formats offer complete freedom in control integration. Project teams can choose from touch panels, handheld remotes, smartphone apps, ambient light sensors, or full Building Management System (BMS) automation. Beyond uniform dimming, REACHBUILDING provides custom segmented circuit engineering to enable zone-by-zone light control and dynamic, active brand LOGO displays directly on the glass.
Reliable Supply & Project Support
As a primary architectural glass manufacturer, REACHBUILDING bridges optical innovation with industrial scale, converting manufacturing strength into direct commercial value:
Guaranteed 7–15 Day Delivery: Our agile production cycles eliminate project delay risks, drastically reduce jobsite downtime costs, and accelerate project completion schedules.

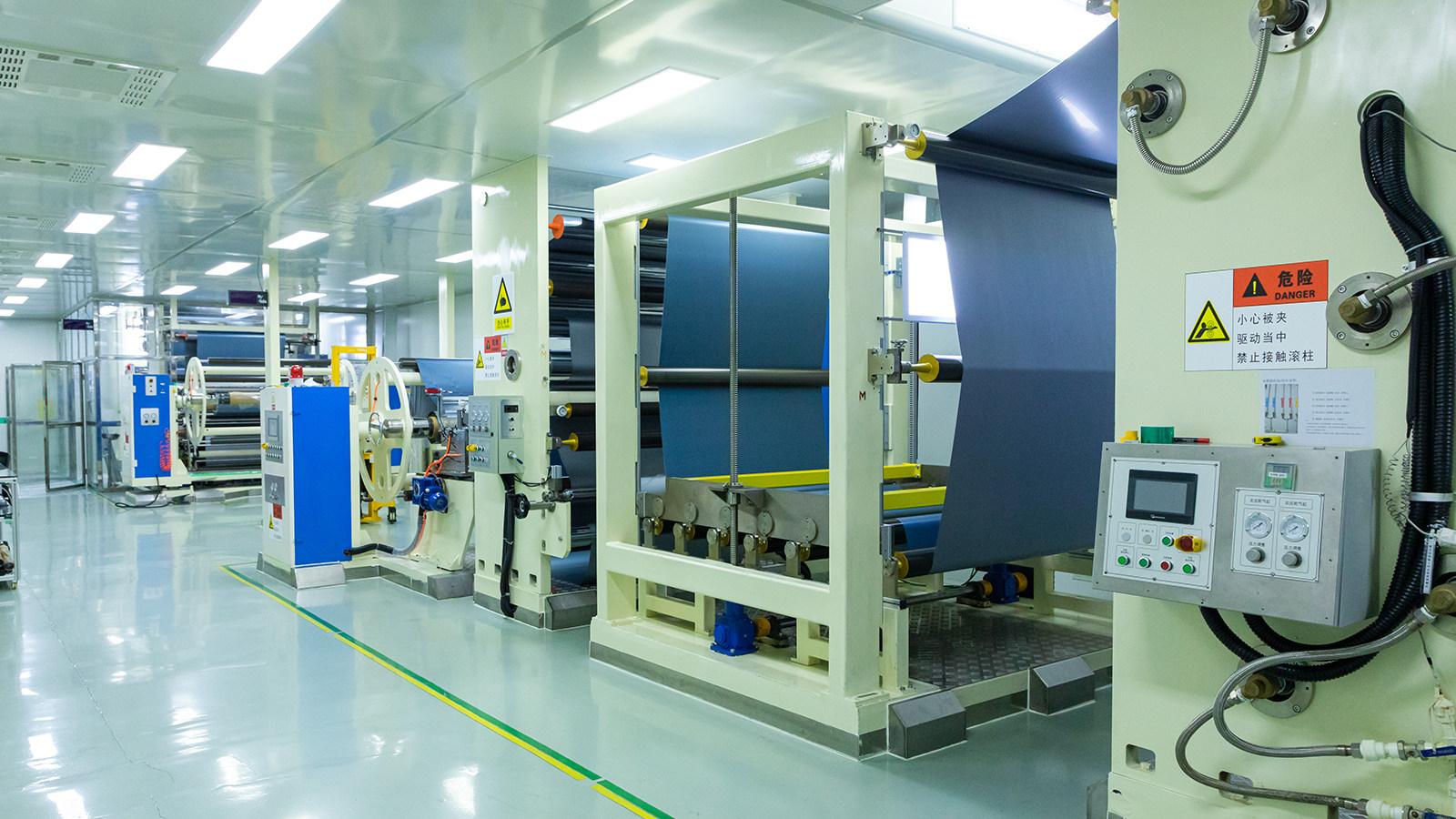

50,000 m²/Month Capacity: Mass production scale ensures steady, unbroken supply lines even for mega-scale commercial developments.
Complete Technical Guidance: We provide full engineering support, including wiring layout design, autoclave parameter optimization for local fabricators, and custom driver protocol matching.

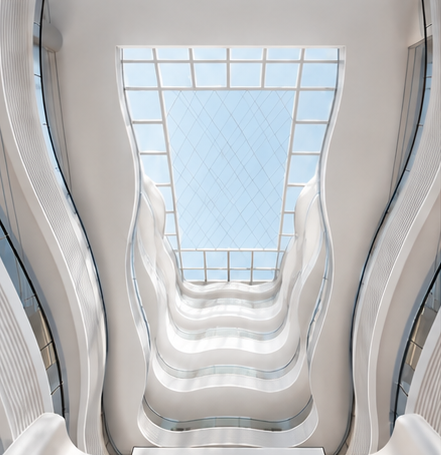

EPC in Action: The YPL Building Project
REACHBUILDING’s EPC technology and custom smart glass solutions are validated through high-profile real-world architectures, such as the YPL Building Project.
To break away from traditional static glass facades, the YPL Building integrated custom switchable smart glass technology to enhance architectural flexibility and occupant experience. By dynamically adjusting transparency, the building effortlessly balances abundant natural daylight, glare reduction, and instant privacy management without requiring mechanical blinds.
Working closely with the project team, REACHBUILDING supported multiple customized facade design concepts. The installation demonstrates how smart glass technology can present distinct visual expressions across different elevation styles, delivering a sleek, modern aesthetic paired with long-term functional performance.
Macro Market Drivers: Moving Toward Active Glazing
Three key market forces are accelerating the transition from traditional static glass to active dynamic shading:
Supporting ESG and Net-Zero Building Goals: Modern green building frameworks require dynamic envelope management. By dynamically balancing solar heat rejection and visible light, active smart glass substantially lowers annual HVAC operating costs.

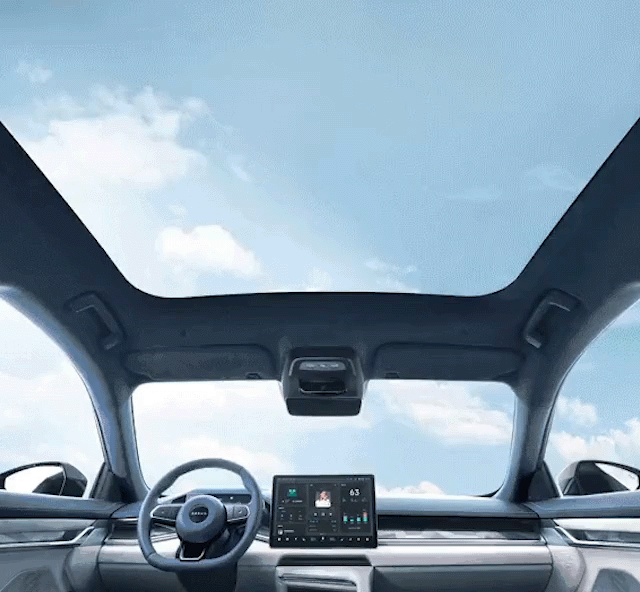

Eliminating Heat Challenges in Sunroofs: High-end electric vehicles require lightweight, shade-free panoramic roofs. Dynamic light control maintains thermal comfort inside the cabin without adding weight or reducing headroom.
Transforming Facades into Connected IoT Nodes: Integrated smart glass interacts directly with automated building management protocols, allowing facilities to execute real-time energy optimization without manual intervention.
Conclusion
The transition toward active light control is inevitable, but the underlying technology selected will determine a project's long-term viability. EPC technology is not simply an incremental update to traditional SPD; it is a pragmatic solution that balances superior optical clarity, ultra-low power consumption, and manufacturing reliability. By resolving the historical engineering bottlenecks of smart glass, EPC makes dynamic daylighting commercially scalable for both modern architecture and mobility.
REACHBUILDING is positioned to support this transition at any scale—delivering everything from raw EPC films and specialized interlayers to fully integrated glass units and smart control systems. We invite facade consultants, architectural glass fabricators, and automotive OEMs to evaluate the technology firsthand. Contact our engineering team to request a standard 300×300mm evaluation sample kit or to discuss technical specifications for your upcoming project.
