Improperly specifying fire-rated assemblies in commercial and institutional projects carries severe liability. It also introduces massive financial risks. A single failed inspection can halt construction entirely. Code violations delay occupancy and invite devastating lawsuits if safety is compromised. Passing these rigorous safety inspections requires true expertise. Professionals must look past slick manufacturer marketing. You must deeply understand the strict parameters set by the International Building Code (IBC). This article serves as an architect-focused guide. We help specifiers evaluate transparent life-safety materials correctly. We will walk you through matching system components. You will learn to decode complex labels quickly. You will navigate modern fire safety standards effectively.
Classification matters: The distinction between fire protection glazing (blocks smoke/flames) and fire resistant glass (blocks smoke/flames and radiant heat) dictates where and how much glass you can legally use.
Assembly over components: A fire-rated glass installation is only compliant if the framing system matches or exceeds the glazing’s fire rating.
Strict labeling: IBC Chapter 7 requires permanent labeling on all fire-rated assemblies, with specific designations for walls, windows, and doors.
Impact safety is mandatory: In hazardous locations (doors, sidelites), fire-rated glass must also meet Category II impact safety standards (IBC Chapter 24).
Code evolution: Recent IBC updates have closed loopholes, such as prohibiting the use of automatic sprinkler systems to artificially pass fire tests.
Specifiers often overspend on unnecessary ratings. Alternatively, they face failed inspections. This happens when teams choose the wrong classification for a specific building area. Understanding the core difference saves money and prevents legal exposure.

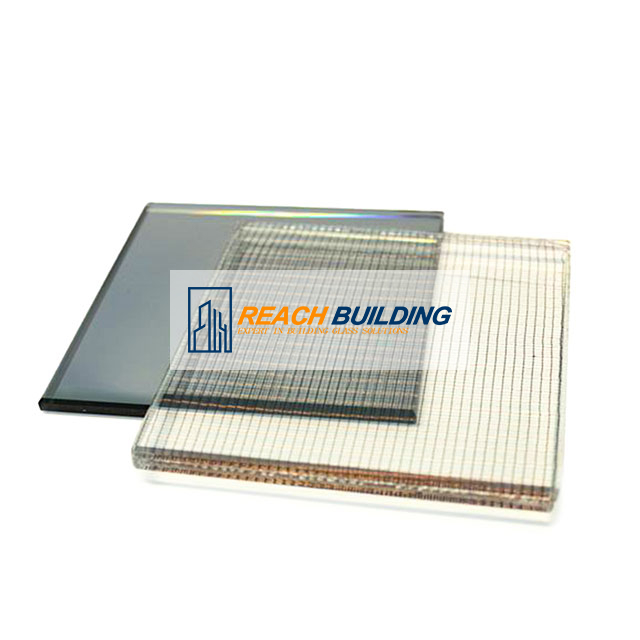

This category serves a specific, limited purpose. It blocks smoke and flames during a fire. However, it does not block radiant heat. If a fire breaks out, the ambient temperature on the safe side will still rise to lethal levels. Radiant heat can even cause combustible items like curtains to ignite spontaneously. This category commonly includes traditional wired materials, certain ceramics, and specialized tempered glass. Because of the radiant heat danger, the IBC strictly limits fire protection glazing to just 25% of the total wall area. You cannot use it in applications requiring 60- to 120-minute temperature-rise doors. It is also forbidden in specific interior fire-barrier walls.
This classification provides superior life safety. It successfully blocks smoke, flames, and dangerous radiant heat. It keeps the temperature on the non-fire side below 250°F. People can walk safely past the glass during an active fire. Manufacturers typically utilize multi-ply laminated glass for this purpose. They insert intumescent interlayers between the panes. These interlayers turn opaque and expand rapidly under high heat. The IBC tests these assemblies to stringent ASTM E-119 wall standards. The code considers this material a transparent wall. Therefore, it has no size or area limitations.
Many architects mistakenly rely solely on testing agency "listings." Test agency approvals do not override local IBC adoption. Understanding the permanent label etched on the glass is mandatory. Inspectors look specifically for these codes to verify compliance.
Let's break down the complex markings you will see on certified materials. The IBC requires these letters to indicate exact performance capabilities.
Label Mark | Definition & Compliance Standard |
|---|---|
W | Meets wall assembly criteria. Tested to ASTM E-119 standards to block radiant heat. |
OH | Meets window assembly criteria. Includes the mandatory hose stream test. |
D | Meets basic door assembly criteria. |
H | Hose stream compliant. The glass survives sudden thermal shock from fire hoses. |
T | Temperature rise compliant. Limits heat transfer to the non-fire side. |
XXX | The duration of the fire rating in minutes (e.g., 20, 45, 60, 90, 180). |
Safety goes beyond fire resistance. You must also account for human impact risk. IBC Chapter 24 details the requirements for impact resistance in "hazardous locations." These locations include doors and sidelites within 24 inches of a door. Large windows located near the floor also qualify. Every fire-rated glass panel in these zones must meet Category II impact standards. Standard fire-rated ceramics fail this test inherently. They require surface-applied films or lamination to meet CPSC 16 CFR Part 1201 Category II impact tests safely.

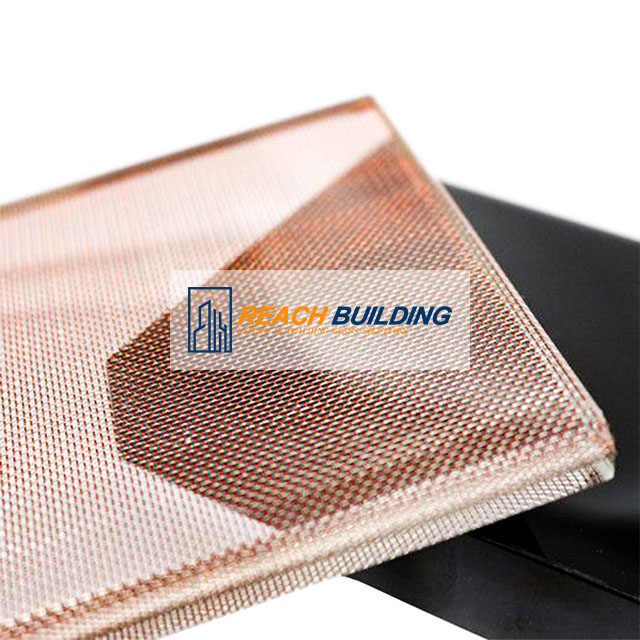

A fire-rated panel installed in standard aluminum storefront framing creates a deadly hazard. The aluminum will melt and fail catastrophically during a fire. Standard aluminum melts at roughly 1,220°F, while fire tests exceed 1,600°F rapidly. The heavy glass will collapse outward. This voids all compliance immediately. It also creates massive legal liability for the design team.
The framing system must always carry a fire rating equal to or greater than the glazing itself. You cannot mix high-performance glass with low-performance frames. Inspectors judge the entire assembly by its weakest component.
Choosing the right structural support is crucial for system integrity. Here is a summary chart comparing common framing options.
Frame Material | Fire Performance Profile | Best Application |
|---|---|---|
Hollow Metal | Rated up to 90 minutes. Fails to block radiant heat. | Basic fire doors using protective glazing. Cannot pair with resistive glass in 1-hour walls. |
Fire-Rated Aluminum | Often relies on heavy intumescent lining to survive. Bulky profiles. | Interior applications where matching standard aluminum aesthetic is required. |
Steel Systems | 74% lower thermal conductivity than aluminum. Blocks heat effectively. | High-end curtain walls and large transparent barrier applications. |
Steel remains the preferred choice for high-end fire-rated curtain walls. Steel shares a similar expansion coefficient to glass and concrete. This synergy minimizes thermal transfer seamlessly. You achieve high performance without relying on bulky traditional thermal breaks.
Modern architecture often mixes materials. You might want to combine modern special glass with combustible structural elements. Cross-Laminated Timber (CLT) is a prime example. This requires highly specialized code modifications. Wood chars at a predictable rate. The frame and glass system must accommodate this charring without losing structural integrity. Always consult a fire protection engineer when mixing these materials.
Specifying the right material requires a systematic approach. Follow these five steps to ensure full compliance and optimize your budget.
Determine the Application and Location: Identify the exact opening type. Is it an interior fire partition? Are you designing a stairwell enclosure? Is it an exterior wall near a property line? The location dictates the primary IBC requirements.
Identify the Required Duration: Check the local code requirements. Fire protections usually range from 20 to 180 minutes. Never guess this number or assume previous project specs apply.
Select the Glazing Technology: Assess your actual life-safety needs. A basic tempered product might be sufficient for a simple 20-minute door. Alternatively, an intumescent laminated product is mandatory for a 2-hour stairwell wall.
Factor in Additional Performance Metrics: Life safety is just the baseline. Evaluate secondary requirements carefully. Do you need STC/OITC acoustic ratings for a busy hospital corridor? Does the facility require bullet resistance? Exterior applications might mandate energy efficiency through Low-E coatings.
Verify Certifications: Always demand proof from the manufacturer. Ensure the chosen product carries active testing marks. Look for UL 9, UL 10C, or CAN/ULC S104 labels relevant to your specific region.
Navigating building codes requires vigilance. Many specifiers fall into predictable traps. These mistakes cause budget overruns and inspection failures. Use these strategies to protect your project.
Value Engineering without Violations: Budgets are always tight. You can reduce costs smartly on a 1-hour rated corridor. Architects can restrict the glass area to under 25% of the total wall. This strategic move allows the use of significantly cheaper protective glazing. You avoid paying for expensive fire resistant glass wall assemblies.
The Hose Stream Test Reality: Never specify materials lacking a hose stream rating. During this test, red-hot glass gets hit with a high-pressure fire hose. If the glass shatters from thermal shock, it fails immediately. Non-hose-stream-rated panels represent a major liability in most North American jurisdictions.
Beware the "Sprinkler Loophole": Dispel this dangerous and outdated myth. Installing an automatic sprinkler system does not allow you to use lower-rated materials. The 2021 IBC specifically prohibited this practice. You can no longer rely on sprinklers to achieve a fire rating during official testing. Systems fail, water pressure drops, and codes reflect this reality.
Specifying fire-rated glass is never a simple commodity purchase. It remains a critical life-safety assembly decision. The wrong choice puts lives at risk and exposes your firm to immense liability. You must evaluate the glazing and framing together as a unified system. Always engage with manufacturers and fire protection engineers early. Bring them in during the schematic design phase. This proactive collaboration aligns your aesthetic vision with rigid IBC demands. It also prevents costly late-stage redesigns.
Action Steps:
Audit your current standard details to ensure framing matches glazing fire ratings.
Verify that all hazardous location applications explicitly require Category II impact safety.
Update your firm's specification library to eliminate reliance on the outdated sprinkler loophole.
Establish a strict review process for checking permanent labels on submittals.
A: No. Ceramic glass does not block radiant heat. The IBC limits its use to 100 square inches in 60-, 90-, and 180-minute doors. The code strictly forbids it in 60- and 120-minute interior windows.
A: Yes. If the building envelope sits within a specific distance of a property line or adjacent structure, rules apply. The IBC usually requires exterior fire-rated assemblies within 10 feet to prevent fire jumping.
A: Yes, but only through manufacturer-approved processes. Applying aftermarket window films or unapproved tints can alter the flammability of the glass surface. This instantly voids the official fire certification.
