As demand for flexible privacy grows, more projects need glass that can remain open and transparent while providing privacy when required. REACH BUILDING’s SpectraVeil Glass meets this need with PDLC technology, switching instantly between clear and softly frosted states.
SpectraVeil is available in two forms: finished smart laminated glass and switchable film applied to existing glass. Although they provide the same basic privacy function, the product format affects the glass structure, installation method, wiring strategy, on-site workload, maintenance, and final appearance.The right choice usually depends on the project stage:
SpectraVeil Smart Glass: Best suited to new glazing projects, especially office partitions, hotel bathrooms, and healthcare privacy areas.
SpectraVeil PDLC Film: Best suited to retrofit projects where the existing glass will remain in place.
In this article, REACH BUILDING compares SpectraVeil Smart Glass and Smart Film by product format, project stage, installation, cost, and maintenance to help architects, designers, and contractors choose the right solution.

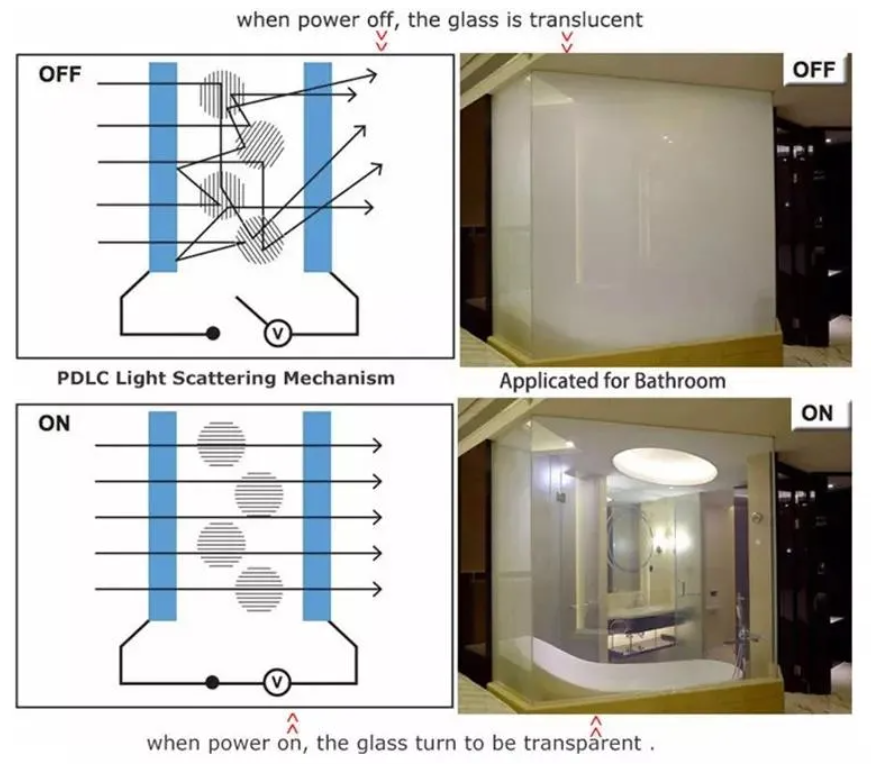

Both products use the same PDLC principle.
When powered, the liquid crystals align and the glass becomes clear. When switched off, they scatter light, creating a softly frosted surface that obscures direct views while still allowing daylight to enter.
 |  |

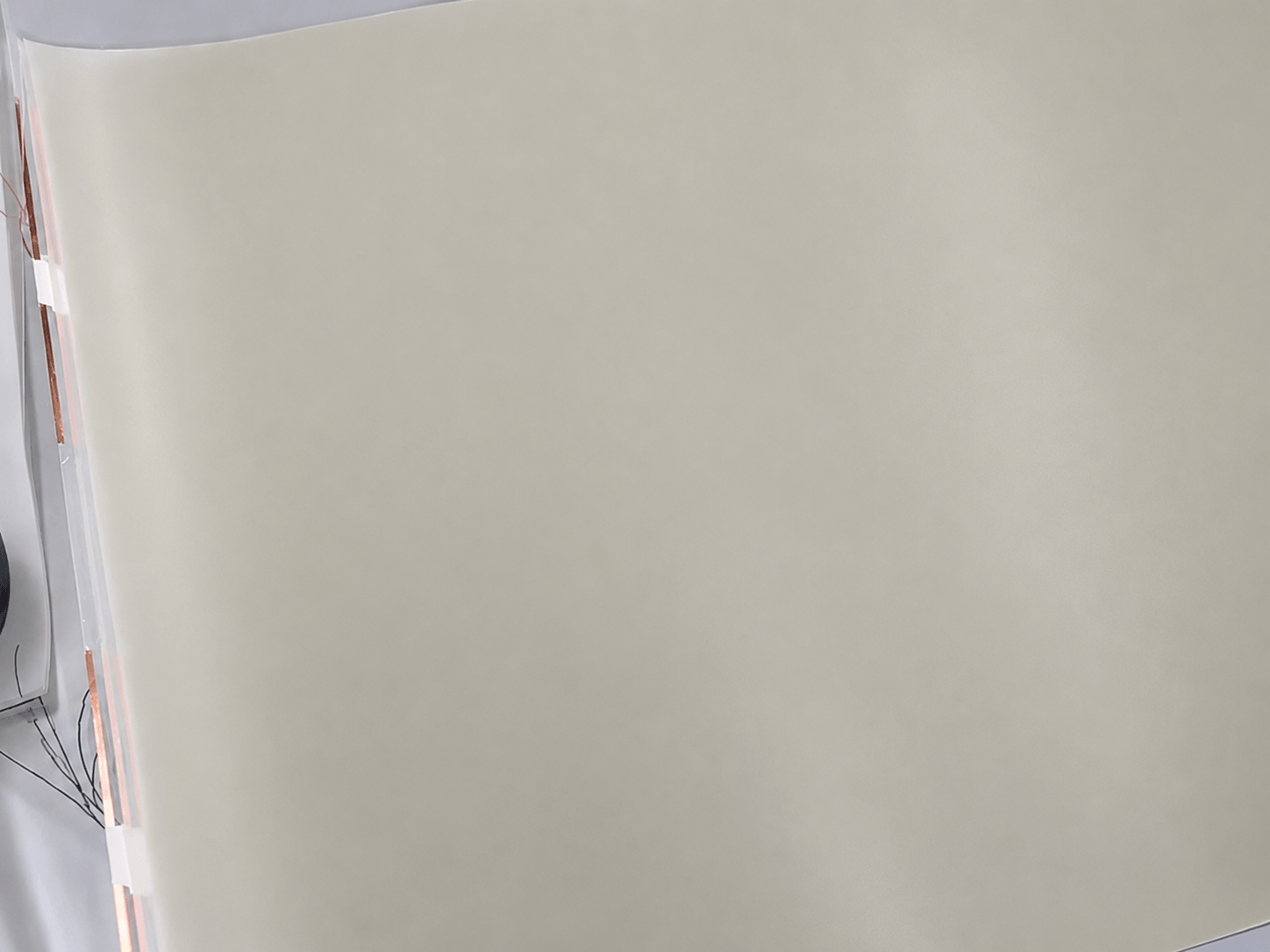

SpectraVeil Smart Glass from REACH BUILDING. | SpectraVeil PDLC Film from REACH BUILDING. |
SpectraVeil Smart Glass is a finished smart laminated glass unit. The PDLC layer is sealed inside the laminated glass structure, protecting it from direct contact and giving the panel a clean, integrated appearance.
SpectraVeil PDLC Film is applied directly to suitable existing glass. It adds the same clear-to-frosted privacy function without replacing the original panel, making it particularly suitable for renovation projects.
For a more detailed explanation of how PDLC smart glass works, explore our article: Smart Glass ROI: How SpectraNyx & SpectraVeil Redefine Modern Buildings.
SpectraVeil Smart Glass and Smart Film do more than change the appearance of glass. Their clear-to-frosted switching allows the same space to remain open, bright, and connected when visibility is needed, then become private within moments.
In practice, this brings several useful advantages to a project:
Privacy Without Sacrificing Openness: SpectraVeil provides instant visual privacy while allowing natural light to pass through. Custom privacy zones, patterns, and panel designs can be integrated into the glass, reducing the need for curtains, blinds, or permanent partitions.
Fast Switching with Simple Control: SpectraVeil switches between clear and frosted states within milliseconds and can be operated through a simple ON/OFF control system. Individual panels or multiple privacy zones can be configured according to project requirements.
Flexible Applications Beyond Privacy: In the frosted state, SpectraVeil can also work as a projection and display surface for presentations, retail content, and branded visuals, allowing glass to support more interactive spaces.
Reliable Performance for Daily Use: With low power consumption of approximately 2 W/m², more than three million switching cycles, and over 100,000 hours of service life, SpectraVeil is designed for long-term use in commercial, residential, and public environments.
These advantages are shared by both product formats. The main difference is not the privacy effect they provide, but how each one is integrated into the glass and installed within the project.
Explore the full technical specifications for SpectraVeil Smart Glass and Smart Film to compare their optical performance, solar protection, power consumption and so on.
SpectraVeil Smart Glass and Smart Film provide the same clear-to-frosted privacy effect, but they are designed for different project situations. The simplest way to choose is to consider whether the project needs new glass or will continue using the existing glazing.
SpectraVeil Smart Glass is generally the better choice when new glass is already included in the project, such as office partitions, hotel bathrooms, healthcare privacy panels, and glass doors.
 |  |

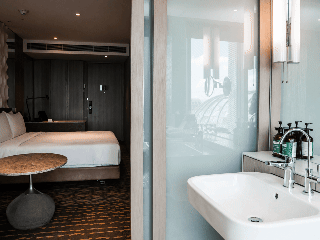

SpectraVeil Smart Glass Applications in Office Partitions. | SpectraVeil Smart Glass Applications in Hotel Bathrooms. |
REACH BUILDING combines the glass structure and PDLC layer into a complete smart laminated glass unit. Before production, we can confirm the panel dimensions, glass build-up, privacy areas, wire positions, connection points, and control method based on the project drawings.
This means most of the product preparation is completed before delivery. Once the finished panels arrive on site, they can be installed as architectural glass units, with less additional assembly or processing required.
The PDLC layer is also protected inside the laminated glass rather than exposed on the surface. This helps reduce the risk of scratches, edge damage, and direct contact during daily use. Cleaning is also more straightforward because maintenance teams only need to clean the outer glass surfaces.
SpectraVeil Smart Glass is easy to clean and maintain.
Finished smart glass requires protective packaging and careful transportation. However, when the project already needs new or replacement glazing, it provides a more complete solution and allows the glass, wiring, and control details to be coordinated before installation.
SpectraVeil Smart Film is a practical choice when the existing glass will remain in place, the project requires a thinner solution than smart laminated glass, or the glazing area is relatively small. Applied directly to installed glass, this PDLC film can add switchable privacy to meeting rooms, office partitions, hotel interiors, clinics, retail spaces, and residential glazing without replacing the original panels.

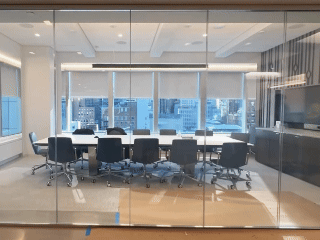

The effect of SpectraVeil Smart Film applied to glass windows.
Because the original glass and frames can remain in place, there is no need to purchase, transport, remove, and reinstall new glass panels, making smart film a more cost-effective option for retrofit projects. The film is supplied in rolls, making it easier to transport and bring into completed buildings. This helps reduce retrofit costs, construction work, and disruption to the space.
 |  |
Supplied in rolls, this switchable window film lowers shipping costs and simplifies retrofit installation. | |
The main on-site steps include preparing the glass surface, positioning the film, completing the wiring, protecting the edges, and testing the control system. Proper preparation and careful installation are important to achieving a clean finish.
REACH BUILDING can provide professional installation guidance and technical support throughout the process, helping the project team complete each step correctly.
The Installation tool for SpectraVeil Smart Film
Because the film remains on the exposed glass surface, appropriate cleaning and routine maintenance are also important. REACH BUILDING provides maintenance guidance to help prevent scratches, protect the edges, and support stable long-term performance.
Contact REACH BUILDING for the complete installation guide and technical support.

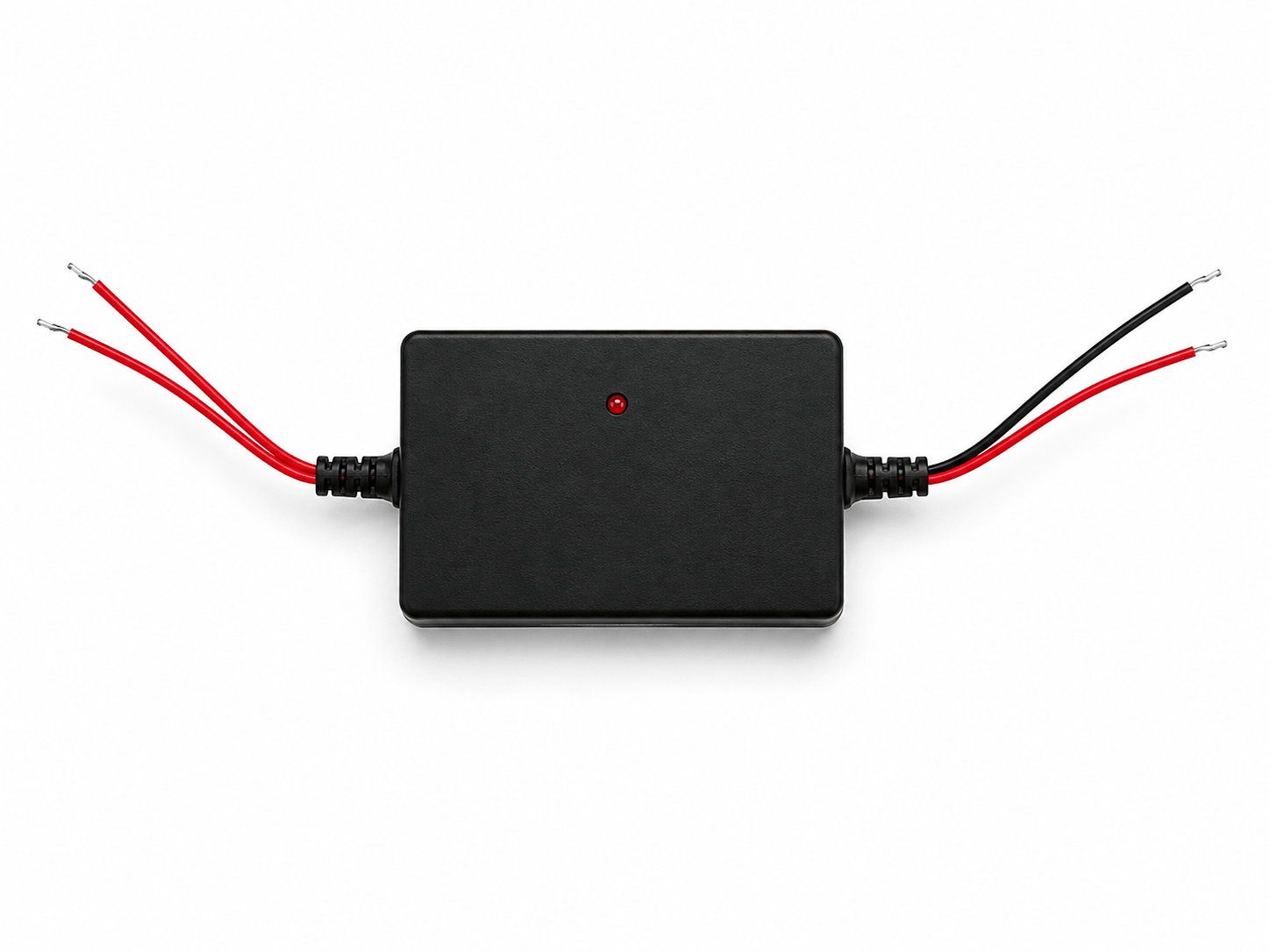

SpectraVeil-controller
SpectraVeil Smart Glass and Smart Film use a compact ON/OFF controller, allowing users to switch between clear and frosted states with a single press. The system does not require a complicated building-control setup for standard applications.
REACH BUILDING configures the controller capacity, cable layout, and control zones according to the glass area and project requirements. Whether the project involves a single panel or multiple privacy zones, our team helps simplify system planning and supports the installation through to final testing.
For projects that also require support with glass specifications, fabrication details, or installation planning, learn how REACH BUILDING turns architectural drawings into complete, installation-ready glass solutions.
Whether your project requires laminated smart glass or switchable smart film, REACH BUILDING can provide a SpectraVeil solution matched to your existing glass conditions, design goals, and installation plan.
If you are unsure which option is right for your project, contact the REACH BUILDING team. We will be happy to review your requirements and help you select the most suitable solution.
At a similar price point, SpectraVeil delivers higher quality through full-cycle production monitoring. It is designed for a service life of over 100,000 hours, more than 3,000,000 switching cycles, and reliable operation in temperatures from −30°C to 90°C.
REACH BUILDING provides customized solutions for different applications, together with remote video guidance for installation. Teams with relevant installation experience can usually complete the work without additional specialist training.
No. PDLC glass provides visual privacy while still allowing light through. For stronger tinting, glare reduction, and daylight control, explore our SpectraNyx Smart Glass.
